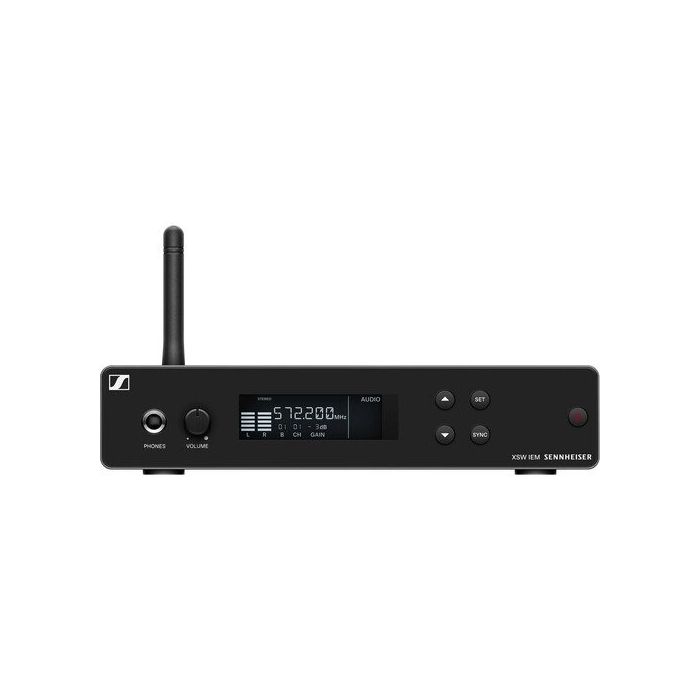

Sennheiser XSW IEM SR (A)
by SennheiserWorks with XSW IEM EK Stereo Receiver
Half-Rack 1 RU Design
Rugged Metal Housing, Detachable Antenna
960 Frequencies, 8 Banks
Backlit LCD Screen
IR Sync
Headphone Output with Volume
Up to 12 Transmitters / 330' Range
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Sennheiser XSW IEM SR Stereo In-Ear Monitoring Wireless Transmitter (A: 476 to 500 MHz)
- XSW BNC Antenna
- NT 12-5 CW Power Supply with AC Plug Adapters (US, UK, EU)
Also available as part of the XSW IEM SET in-ear personal wireless monitoring system, the Sennheiser XSW IEM SR is available here as an indivdual component—a compact stereo wireless transmitter used in conjunction with separately available XSW IEM EK stereo receivers. The transmitter features a half-rack 1 RU rugged metal housing designed for extended use in small clubs. With its detachable antenna, the unit is easy to transport and can be installed in a rack (XSW rackmount kit available separately) or used standalone on a tabletop to deliver the renowned Sennheiser sound and solid wireless reliability for musicians rehearsing or performing live on a club stage or in a house of worship.
Simple-to-Use Personal Wireless Monitoring
- Two combo XLR-1/4" inputs enable you to send either a stereo or two different mono audio sources at the same time, from either 1/4" or XLR connections.
- A backlit LCD screen on the front panel allows for easy set up, even on dark stages.
- You can preview your in-ear mix locally using the headphone output with volume knob located on the front.
- Setting up gain, mono, or stereo options, input sensitivity, or frequency channels takes just a matter of seconds thanks to the clear and simple menu.
Reliable Wireless Performance
- The stereo transmitter is equipped with 960 frequencies and has 8 banks with 12 aligned and precalculated frequencies each, enabling you to automatically find a clean wireless channel at your location for a reliable transmission up to 330'.
- The system transmits in the UHF frequency range, making it immune to cell-phone and Wi-Fi interference that can plague 2.4 GHz systems.
- The infrared sensors allow you to quickly sync multiple receivers to one transmitter at the press of a button.
- The transmitter can send signal to as many receivers as needed.
- Up to 12 transmitters can operate simultaneously in the same frequency band.
Frequency Band | A: 476 to 500 MHz |
Wireless Technology | Analog, UHF |
Modulation | FM Stereo |
Transmitting RF Power | 30 mW |
Number of RF Channels | 960 |
Switching Bandwidth | 24 MHz |
Frequency Step Size | 25 kHz |
Frequency Banks | 8 Banks with 12 Aligned and Precalculated Frequencies Each |
Frequency Scanning | Manual |
Max Transmitters per Band | 12 |
Max Operating Range | 330' / 100 m (Line of Sight) |
Nominal/Peak Deviation | ±15 kHz / ±24 kHz |
Antenna Output | BNC Socket, 50 Ohms |
Frequency Response | 45 Hz to 15 kHz |
Inputs | L (Mono) / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balanced |
Output | 1/4" / 6.3 mm TRS Headphones Out with Volume Knob |
Sync Method | IR |
Total Harmonic Distortion (THD) | <0.9% |
Signal-to-Noise Ratio | ≥88 dB at Nominal Load and Peak Deviation |
Power Input Rating | +12 VDC |
Current Consumption | Approximately 400 mA |
Housing | Metal |
Temperature Range | 32 to 104°F / 0 to 40°C |
Dimensions | Approximately 7.9 x 5 x 1.7" / 20.0 x 12.8 x 4.2 cm |
Weight | Approximately 24.7 oz / 700 g |
Package Weight | 2.695 lb |
Box Dimensions (LxWxH) | 14.9 x 11.1 x 2.4" |
