Sennheiser XSW 2-ME2-A
by SennheiserFor Presenter and Moderator Applications
ME 2-2 Lavalier Microphone
True Diversity Receiver
Up to 12 Compatible Channels
External Antennas
Automatic Frequency Synchronization
Remote Channel for Easy Setup
Tunable Over a Range of UHF Frequencies
Includes Rackmount Kit and Carry Pouch
AA Batteries and AC Power Supply
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Sennheiser XSW2-ME2 Wireless Lavalier Microphone System (A: 548 to 572 MHz)
- EM-XSW 2 Receiver
- SK-XSW Bodypack Transmitter
- Sennheiser ME 2-II Omnidirectional Lavalier Microphone with Locking 3.5mm Connector (Black)
- 2 x AA Batteries
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch

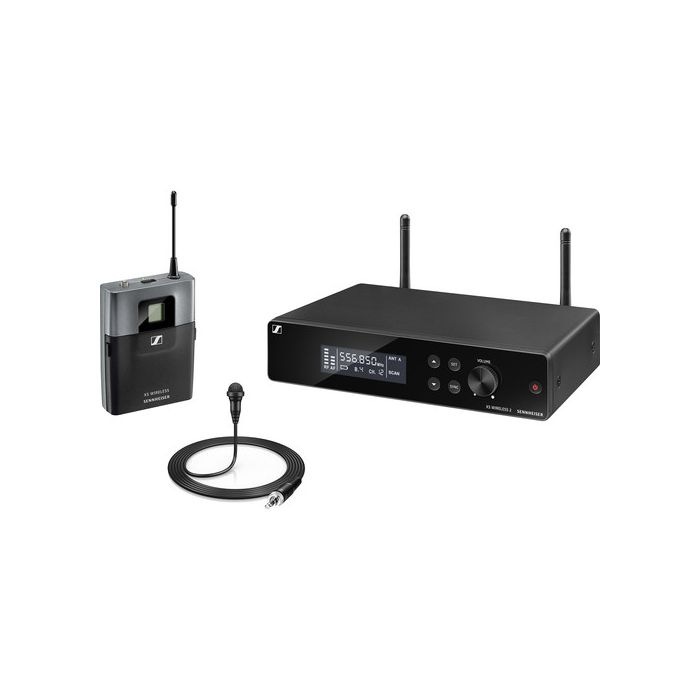

The XSW2-ME2 Wireless Lavalier Microphone System features a true diversity receiver, a compact bodypack transmitter, and an ME 2-2 lavalier microphone with a locking 1/8" mini-jack connector. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for presenters, moderators, and other live-sound applications.
The system is built with automatic frequency management and synchronization so you don't have to scramble to find an available channel. It offers an intuitive LCD display, two external antennas, and is built with a metal receiver housing. In addition, a rackmount kit, power supply, carry pouch, and two AA batteries are also included.
- Unobtrusive clip-on ME 2-2 microphone for hands-free operation and a compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 96 |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Diversity |
| RF Frequency Band | A: 548 to 572 MHz |
| RF Bandwidth | 24 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m |
| Max Transmitters per Band | 12 |
| Built-In Recorder | No |
| Timecode Support | No |
| Control App Support | No |
| Audio Codec | None |
| Encryption | None |
| Modulation | Wideband FM |
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x External, BNC (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Unbalanced Output |
| Gain Range | 40 dB |
| Audio Output Level | XLR Output: +12 dBu (Max) 1/4" Output: +6 dBu (Max) |
| Phantom Power Protection | None |
| Frequency Response | 50 Hz to 16 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| RF Principle | Double Superheterodyne |
| Squelch | 3 to 28 dBμV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | VDC Not Included |
| DC Input Power | 12 VDC at 300mA |
| Display & Indicators | 1 x LCD (AF Level, Frequency, Group, Power, Sync) |
| Housing | Metal |
| Dimensions | 7.9 x 1.7 x 5" / 200 x 42 x 127 mm |
| Weight | 1.5 lb / 680 g |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Input (Lockable) |
| Pad | None |
| Muting | Off/On Switch |
| Audio Input Level | 1.5 V (Mic Level) 2.6 V (Line Level) |
| Auto-Level Control | Yes |
| Gain Range | 20 dB |
| Signal Processing | None |
| Frequency Response | 50 Hz to 16 kHz (Line) 80 Hz to 16 kHz (Mic) |
| Sync Method | 2.4 GHz QPSK |
| Antenna | 1 x External |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 10 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LCD |
| Housing | ABS |
| Dimensions | 2.8 x 3.8 x 1.1" / 71 x 96 x 28 mm |
| Weight | 3.4 oz / 95 g |
| Microphone Type | Lavalier |
| Color | Black |
| Sound Field | Mono |
| Capsule | Condenser |
| Polar Pattern | Omnidirectional |
| Maximum SPL | 130 dB SPL |
| Sensitivity | 20 mV/Pa |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced |
| Cable Length | 5.9' / 1.8 m |
| Package Weight | 4.795 lb |
| Box Dimensions (LxWxH) | 14.65 x 13.8 x 3.4" |
