Sennheiser XSW 2-CI1-B
by Sennheiser
Availability:
7-10 days delivery
SKU
SEN-507137
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
€398.75
€319.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

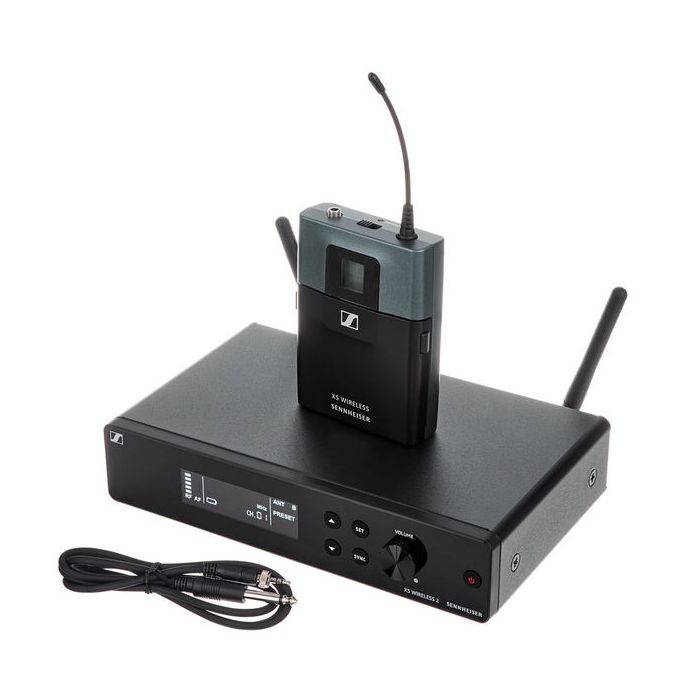

Package includes
- 1x SK-XSW pocket transmitter
- 1x EM-XSW2 Diversity receiver
- NT 12-5 CW power supply
- Ci1 guitar cable
- 2x AA batteries
- Rackkit
- Pocket/bag/pouch
Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
True Diversity UHF Wireless System
- With pocket transmitter and guitar cable
- Frequency range B band: 614 - 638 MHz
- Metal housing
- 24 thomann MHz bandwidth
- 8 Frequency banks with up to 12 presets for each
- External BNC antennas
- Auto-Tune to find free frequencies
- 10 mW transmitter power
- Audio frequency range 50 - 16,000 Hz
- XLR and jack outputs
- Adjustable squelch
- Mic/Line switchable
Transmitter | |
Dimensions |
approx. 71 x 96 x 28 mm
|
Weight | approx. 95g |
Operating time | approx. 10 hrs |
Power supply |
2 AA size batteries, 1.5 V
|
Housing | robust ABS |
Frequency response |
50 to 16,000 Hz (–3 dB)
|
THD, total harmonic distortion | ≤ 0.9% |
Signal-to-noise ratio | ≥ 103 dBA |
RF output power | 10 mW |
Switching bandwidth | up to 24 MHz |
Modulation | wideband FM |
Output voltage |
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
|
Diversity reception | True Diversity |
Frequency |
8 frequency banks, each with up to 12 factory-preset channels
|
Frequency range | B: 614-638 MHz |
Sensitivity |
< 3 μV at 52 dB(A)rms S/N
|
Squelch |
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
|
Synchronization |
2.4 GHz, Low Power OQPSK (only active during synchronization)"
|
Adjustment Range Transmitter |
0 to -30 dB, adjustable in 10 dB steps
|
Audio adjustment range |
40 dB, adjustable in 5-dB steps
|
Line / Mic level |
20 dB, switchable
|
Temperature Range |
operation: 0°C to +40°C, storage: –20°C to +70°C
|
Receiver Principle |
double superheterodyne
|
