Sennheiser XSW 1-825-A
by Sennheisere825 Mic Capsule with HH Transmitter
EM-XSW 1 UHF Receiver
Antenna-Switching Diversity Reception
Automatic Frequency Management
Remote Channel for Easy Setup
Selectable UHF Frequencies
Up to 10 Compatible Channels
Integrated Antennas
Includes NT 12-5 CW Power Supply
Includes Mic Clamp and 2 AA Batteries
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Sennheiser XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone (A: 548 to 572 MHz)
- Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
- NT12-5 CW Power Supply
- 2 x AA Batteries

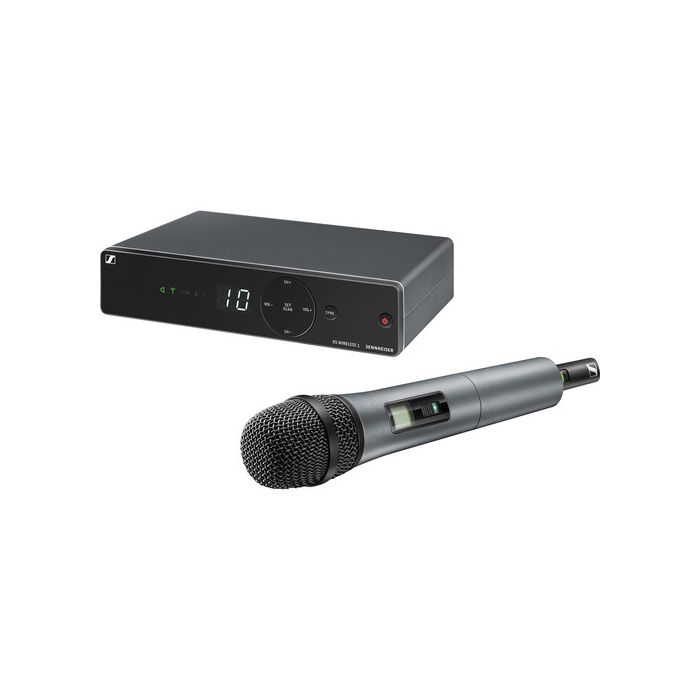

The XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications.
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
- Featuring Sennheiser's renowned evolution microphone capsule e825
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Diversity reception
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 80 |
| Included Transmitters | 1 x Handheld |
| Diversity | Antenna Diversity |
| RF Frequency Band | A: 548 to 572 MHz |
| RF Bandwidth | Up to 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 100' / 30.5 m |
| Max Transmitters per Band | 10 |
| Built-In Recorder | No |
| Timecode Support | No |
| Control App Support | No |
| Encryption | None |
| Modulation | Wideband FM |
| Receiver Type | Tabletop |
| Antenna | 2 x Internal |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TS Unbalanced Mic/Line Output |
| Gain Range | 45 dB (5 dB Steps) |
| Audio Output Level | XLR Output: +12 dB (Balanced) 1/4" Output: +6 dB (Unbalanced) |
| Frequency Response | 50 Hz to 16 kHz -3 dB |
| Network I/O | None |
| USB/Lightning Connectivity | None |
| RF Principle | Double Superheterodyne |
| Squelch | Adjustable, 3 to 28 dBmV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Display & Indicators | 1 x LCD (Channel, Frequency) |
| Housing | ABS |
| Dimensions | 7.9 x 1.7 x 5" / 200 x 42 x 127 mm |
| Weight | 12 oz / 340 g |
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Pad | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | 0 to -30 dB (10 dB Steps) |
| Signal Processing | None |
| Frequency Response | 80 Hz to 14 kHz |
| Sync Method | 2.4 GHz QPSK |
| Antenna | Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 10 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Power) |
| Housing | ABS |
| Dimensions | 10.2 x 2" / 260 x 50 mm |
| Weight | 8.6 oz / 245 g |
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 80 Hz to 14 kHz |
| SNR | 103 dB A-Weighted |
| THD | < 0.9% |
| Sensitivity | 1.5 mV/Pa |
| Length | 10.2" / 260 mm |
| Diameter | 2.0" / 50 mm |
| Weight | 8.6 oz / 245 g |
| Package Weight | 3.11 lb |
| Box Dimensions (LxWxH) | 13.8 x 12.7 x 3.5" |
