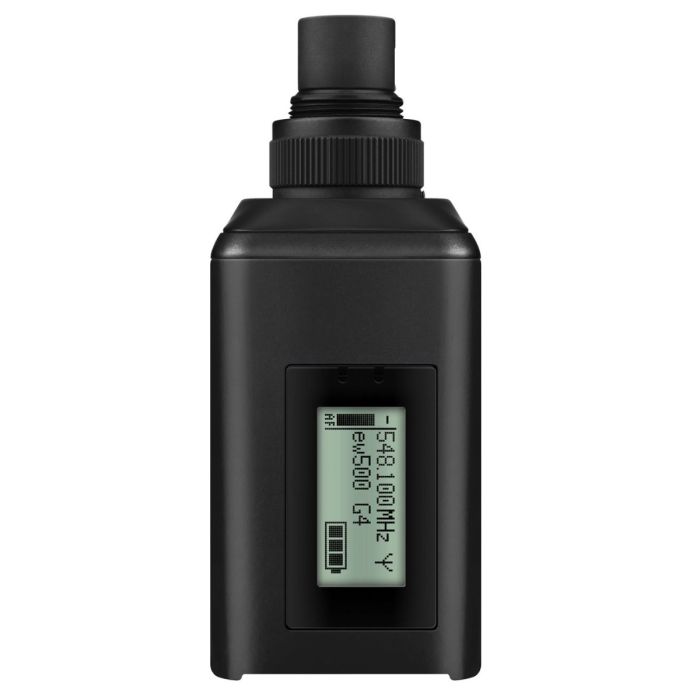

Sennheiser SKP 500 G4-BW

by Sennheiser
Availability: 7-10 days delivery
SKU
SEN-509538
Professional sound and excellent construction quality
€548.75 €439.00

Package includes

  • SKP 500 G4 pro plug-on transmitter
  • 2 AA batteries
  • POP 1 pouch with belt clip
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.

Features

  • Professional sound and excellent construction quality

  • Easy to use and fast setup time

  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared

  • Up to 88 MHz bandwidth, up to 32 channels

  • Range: up to 100 meters / 330 feet

  • Increased RF output power (10/30/50 mW)

  • Up to 8 hours of operation time

Modulation Wideband FM
Frequency Band BW: (626 to 698 MHz)
Transmission Frequency Maximum 3250 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels
Switching Bandwidth up to 88 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
Frequency Stability ≤ ±15 ppm
RF Output Power At 50 Ohms Switchable:
Low: Typical 10 mW
Standard: Typical 30 mW
High: Typical 50 mW
Pilot Tone Squelch Can be switched off
Compander Sennheiser HDX
AF Frequency Response 80 Hz to 18 kHz
Signal to Noise Ratio Approximately ≥ 120 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD) ≤ 0.9%
Maximum Input Voltage 6 V eff
Input Impedance 6 kOhms, balanced
Input Capacitance Switchable
Input Sensitivity Range 48 dB, adjustable in 6 dB steps
Temperature Range 14 to 131°F (-10 to 55°C)
Power Supply 2 x AA 1.5 V batteries, or BA 2015 accupack
Nominal Voltage 3 V battery / 2.4 V rechargeable battery
Current Consumption At Nominal Voltage: Typical 210 mA
With Transmitter Switched Off: ≤ 25 μA
Operating Time Typically 8 hours
Dimensions (L x W x H) 4.1 x 1.7 x 1.7" (105 x 43 x 43 mm)
Weight 6.9 oz (195 g) including batteries
