Sennheiser SKP 500 G4-AW+
by SennheiserWith 48V Phantom Power
Fast Setup Time
Wireless Synchronization via Infrared
3520 Frequencies
20 Fixed Frequency Banks
Up to 88 MHz Bandwidth, 32 Channels
32 Frequency Presets
330' Range
2 x AA Batteries Included
Pouch with Belt Clip
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Sennheiser SKP 500 G4 Pro Wireless Plug-On Transmitter AW+: (470 to 558 MHz)
- 2 x AA Batteries
- Sennheiser POP 1 Protective Pouch for Plug-On Wireless Transmitters

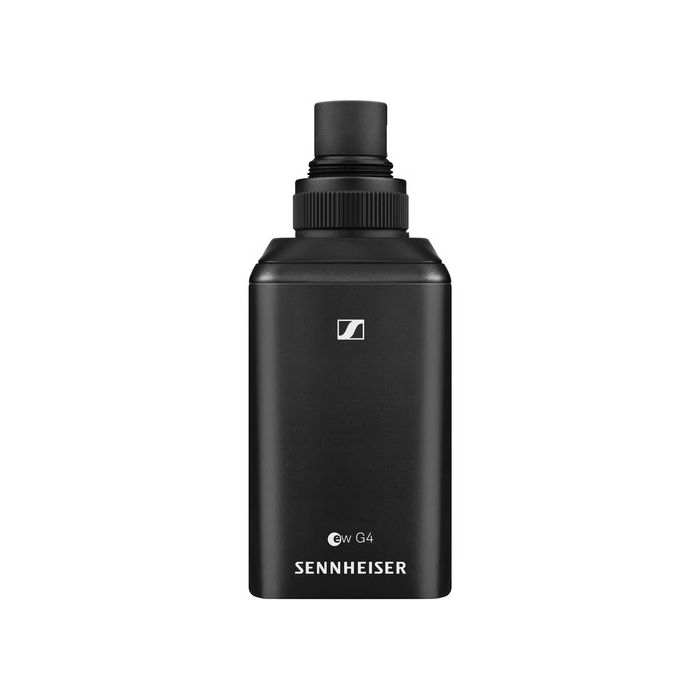

The SKP 500 G4 Pro Wireless Plug-On Transmitter from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver and dynamic or condenser handheld microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, film, and presentation applications.
The plug-on transmitter features switchable 48V phantom power, 3520 frequencies that are tunable in 25 MHz steps, 20 fixed frequency banks, 32 compatible frequency presets, and 6 user banks with up to 32 user programmable frequencies. The transmitter's menu-driven backlit display shows the current frequency, frequency bank and channel number, metering of AF level, lock status, transmission status, muting function, battery status, and more.
In addition, the plug-on transmitter incorporates a Sennheiser HDX compander system, a defeatable pilot tone squelch, and is equipped with a frequency range from 80 Hz to 18 kHz. Finally, power is supplied to the transmitter by the two included 1.5V AA sized batteries, or by one optional Sennheiser BA 2015 rechargeable accupack. A pouch with a belt clip is included. The item is also compatible with the Auray UPOH-B Universal Plug-On Transmitter Holster.
- Professional sound and durable construction
- Easy to use and fast setup time
- Flexible wireless synchronization between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: Up to 330'
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
| Wireless Technology | Analog UHF |
| RF Frequency Band | AW+: 470 to 558 MHz |
| RF Bandwidth | 88 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m |
| Built-In Recorder | No |
| Timecode Support | No |
| Control App Support | No |
| Encryption | None |
| Modulation | Wideband FM |
| SNR | ≥120 dBA |
| THD | <0.9 % |
| Transmitter Type | Plug-On |
| RF Output Power | Up to 50 mW (Switchable) |
| Audio I/O | 1 x XLR 3-Pin Female Unbalanced Input (Lockable) |
| Included Cable Connector | None |
| Phantom Power | +48 V |
| Pad | None |
| Muting | None |
| Audio Input Level | 6 V RMS (Max) |
| Auto-Level Control | Yes |
| Gain Range | 48 dB (6 dB Steps) |
| Signal Processing | None |
| Frequency Response | 80 Hz to 18,000 Hz |
| Sync Method | IR |
| Antenna | 1 x Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Battery Pack (Not Included) |
| Approx. Battery Life | 8 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LCD (Battery Status, Channel, Group, Power, Sync) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 4.1 x 1.7 x 1.7" / 105 x 43 x 43 mm |
| Weight | 6.9 oz / 195 g |
| Package Weight | 0.99 lb |
| Box Dimensions (LxWxH) | 13.8 x 3.15 x 2.9" |
