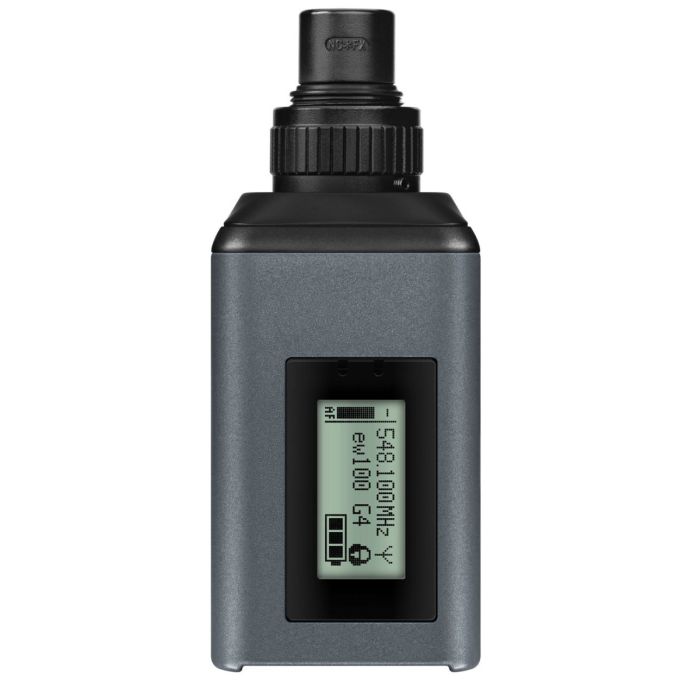

Sennheiser SKP 100 G4-B

by Sennheiser
Availability: 7-10 days delivery
SKU
SEN-509527

Powerful plug-on transmitter, easily mounted on any kind of microphone

€298.75 €239.00

Package includes

  • SKP 100 G4 plug-on transmitter
  • 2 AA batteries
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.



Features

  • Powerful plug-on transmitter, easily mounted on any kind of microphone

  • Excellent sound and construction quality

  • Easy to use and fast setup time

  • Powerful and reliable wireless transmission

  • Range: up to 100 meters / 330 feet

  • Up to 8 hours of operation time

Modulation Wideband FM
Frequency Band B: (626 to 668 MHz)
Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth Up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
Frequency Stability ≤ ±15 ppm
RF Output Power @ 50 Ohms:
Maximum 30 mW
Pilot Tone Squelch Can be switched off
Compander Sennheiser HDX
AF Frequency Response 80 Hz to 18 kHz
Signal to Noise Ratio ≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD) ≤ 0.9%
Maximum Input Voltage 3.3 V eff
Input Impedance 68 kOhms, unbalanced
Input Capacitance Switchable
Input Sensitivity Range 48 dB, adjustable in 6 dB steps
Temperature Range 14 to 131°F / -10 to 55°C
Power Supply 2 x AA 1.5 V batteries, or BA 2015 accupack
Nominal Voltage 3 V battery / 2.4 V rechargeable battery
Current Consumption Nominal Voltage: Typical 180 mA
With Transmitter Switched Off: ≤ 25 μA
Dimensions (W x L x H) 4.1 x 1.7 x 1.7" / 105 x 43 x 43 mm
Weight 6.9 oz / 195 g (including batteries)
