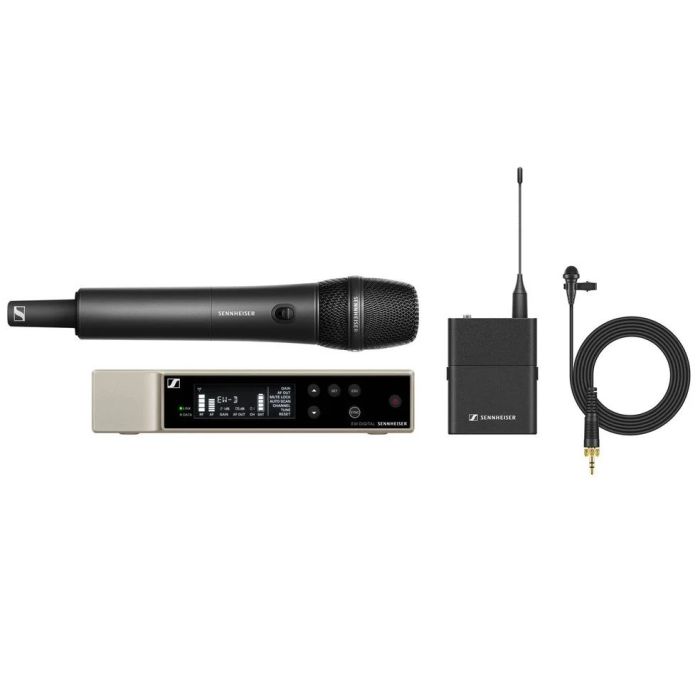

Sennheiser EW-D ME2/835-S SET (S7-10)
by Sennheiser134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- EW-D SKM-S handheld transmitter
- ME 2 lavalier microphone
- MMD 835 microphone module
- MZQ 1 microphone clamp
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.
Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant Spacing – simpler than it sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.
Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.
This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
Versatile and feature-rich digital wireless system for those who sing, speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App.
With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.
| Frequency range | 662 - 693.8 MHz | |||
| THD, total harmonic distortion | ≤ -60 dB for 1 kHz @ -3 dBfs input level | |||
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) | |||
| Operating relative humidity |
5 - 95 % (non-condensing) |
|||
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs | |||
| System Latency | 1.9 ms | |||
| Dimensions | 212 x 44 x 189 mm | |||
| Weight | approx. 1000 g (without antennas and power supply) | |||
| Current consumption | ≤ 300 mA | |||
| Input voltage range | 11 - 13 V ⎓ | |||
| Transmission power | BLE: max. 10 mW EIRP | |||
| Audio output level | 18 dBu max | |||
| Dimensions | 50 x 268 mm (incl. MMD 835 microphone module) | |||
| 40 x 200 mm (without microphone module) | ||||
| Weight | approx. 304 g (incl. MMD 835 microphone module) | |||
| approx. 195 g (without microphone module) | ||||
| Power supply | 2 AA batteries 1.5 V (alkaline manganese) | |||
| or BA 70 rechargeable battery pack | ||||
| Current consumption | < 300 mA | |||
| Input voltage range | 2.0 - 4.35 V | |||
| Transmission power | Audio link: 10 mW | |||
| ERP (Range Y1-3): 12 mW ERP | ||||
| BLE: max. 10 mW EIRP | ||||
| Dimensions | 405 x 350 x 73 mm | |||
| Sound pressure level (SPL) | 154 dB | |||
| Transducer principle | dynamic | |||
| Weight | 3.1 kg | |||
| Pick-up pattern | cardioid | |||
| Sensitivity | 2.1 mV/Pa | |||
| Connector |
3.5 mm jack |
|||
| Frequency response | 50 to 18,000 Hz | |||
| Max. sound pressure level | 130 dB | |||
| Cable length | approx. 1.60 m | |||
| Transducer principle |
pre-polarized condensor microphone |
|||
| Pick-up pattern | omni-directional | |||
| Sensitivity in free field, no load (1kHz) | 17 mV/Pa | |||
| Equivalent noise level | 32 dB | |||
| Power supply | 7.5 V | |||
