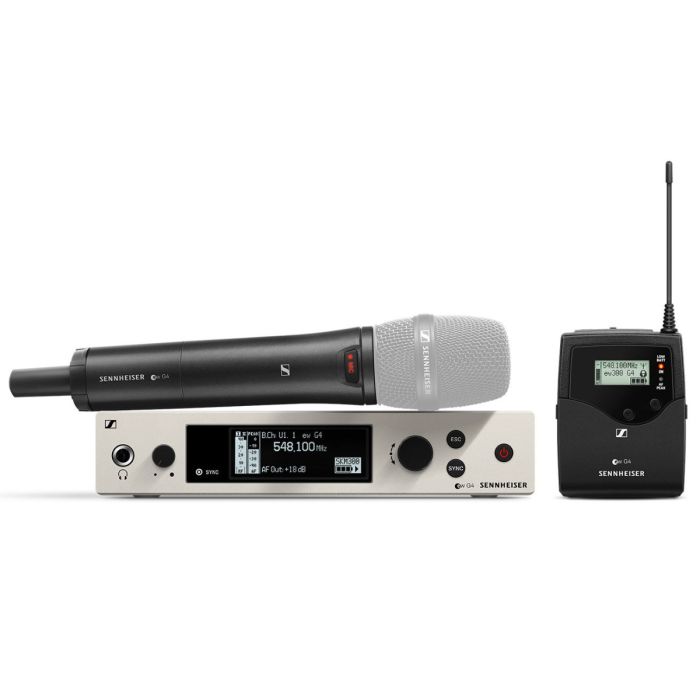

Sennheiser ew 300 G4-BASE COMBO-BW
by Sennheiser- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- EM 300-500 G4 true diversity receiver
- SKM 300 G4-S handheld transmitter
- SK 300 G4-RC bodypack transmitter
- MZQ 1 microphone clamp
- 4 AA batteries
- power supply
- 2 rod antennas
- GA 3 rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.
The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset microphone.
Features
-
Easy to use, fast setup time
-
Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
-
Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
-
Up to 88 MHz bandwidth, up to 32 channels
-
Increased RF output power (10/30/50 mW)
-
Transmission Range: up to 100 meters / 330 feet
-
Compatible with wireless speaker system LSP 500 PRO
-
RC (remote control) switch available for the bodypack transmitter
Modulation | Wideband FM |
Frequency Band | BW: (626 to 698 MHz) |
Receiving Frequency | Maximum 3250 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
Switching Bandwidth | Up to 88 MHz |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
Principle of Operation | True diversity |
Sensitivity | < 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation) |
Adjacent Channel Selectivity | Typically ≥ 75 dB |
Intermodulation Attenuation | Typically ≥ 70 dB |
Blocking | ≥ 75 dB |
Squelch | Off, 5 to 25 dB μV in steps of 2 dB |
Pilot Tone Squelch | Can be switched off |
Antenna Inputs | 2 x BNC sockets |
Compander | Sennheiser HDX |
EQ Presets | Switchable, Act on Line and Monitor Outputs) Preset 1: Flat Preset 2: Low cut (-3 dB at 180 Hz) Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High boost (+6 dB at 10 kHz) |
Signal to Noise Ratio | (1 mV, peak deviation) Line: ≥ 115 dBA |
Total Harmonic Distortion (THD) | ≤ 0.9% |
Maximum AF Output Voltage | 1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF) XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF) |
Output Level Range | 48 dB (3 dB steps) |
Temperature Range | 14 to 131°F (-10 to 55°C) |
Power Supply | 12 VDC |
Current Consumption | 350 mA |
Dimensions (L x W x H) | 8.0 x 8.3 x 1.7" (202 x 212 x 43 mm) |
Weight | 2.2 lb (980 g) |
Modulation | Wideband FM |
Frequency Band | BW: (626 to 698 MHz) |
Transmission Frequencies | Maximum 3250 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
Switching Bandwidth | Up to 88 MHz |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
Frequency Stability | ≤ ±15 ppm |
RF Output Power | At 50 Ohms Switchable: Low: Typical 10 mW Standard: Typical 30 mW High: Typical 50 mW |
Pilot Tone Squelch | Can be switched off |
Compander | Sennheiser HDX |
AF Frequency Response | 80 Hz to 18 kHz |
Signal to Noise Ratio | Approximately ≥ 115 dBA (1 mV, peak deviation) |
Total Harmonic Distortion (THD) | ≤ 0.9% |
Input Sensitivity Range | 48 dB, adjustable in 6 dB steps |
Temperature Range | 14 to 131°F (-10 to 55°C) |
Power Supply | 2 x AA 1.5 V batteries, or BA 2015 accupack |
Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
Current Consumption | At Nominal Voltage: Typical 180 mA With Transmitter Switched Off: ≤ 25 μA |
Operating Time | Typically 8 hours |
Dimensions (Diam. x L) | 2.0 x 10" (50 x 265 mm) |
Weight | 16 oz (450 g) including batteries |
Modulation | Wideband FM |
Frequency Range | AW+: (470 to 558 MHz) |
Transmission Frequencies | 3250 frequencies adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
Switching Bandwidth | Up to 72 MHz |
Peak Deviation | Nominal: ±24 kHz / ±48 kHz |
Frequency Stability | ≤ ±15 ppm |
RF Output Power | At 50 Ohms Switchable: Low: Typ. 10 mW Standard: Typ. 30 mW High: Typ. 50 mW |
Pilot Tone Squelch | Can be switched off |
Compander | Sennheiser HDX |
AF Frequency Response | Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz |
Signal to Noise Rate | ≥ 115 dBA (1 mV, peak deviation) |
Total Harmonic Distortion (THD) | ≤ 0.9% |
Input Voltage | Mic / Line: 3 V eff |
Input Impedance | Mic / Line: 40 kOhms, unbalanced / 1 MOhm |
Input Capacitance | Switchable |
Setting Range | For Input Sensitivity: 60 dB, adjustable in 3 dB steps |
Temperature Range | 14 to 131°F / -10 to 55°C |
Power Supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
Current Consumption | At Nominal Voltage: typ. 180 mA With transmitter switched Off: ≤ 25 μA |
Operating Time | Typically 8 hours |
Dimensions (L x W x H) | 3.2 x 2.5 x 0.9" / 8.2 x 6.4 x 2.4 cm |
Weight | 5.6 oz / 160.0 g (includes batteries) |
