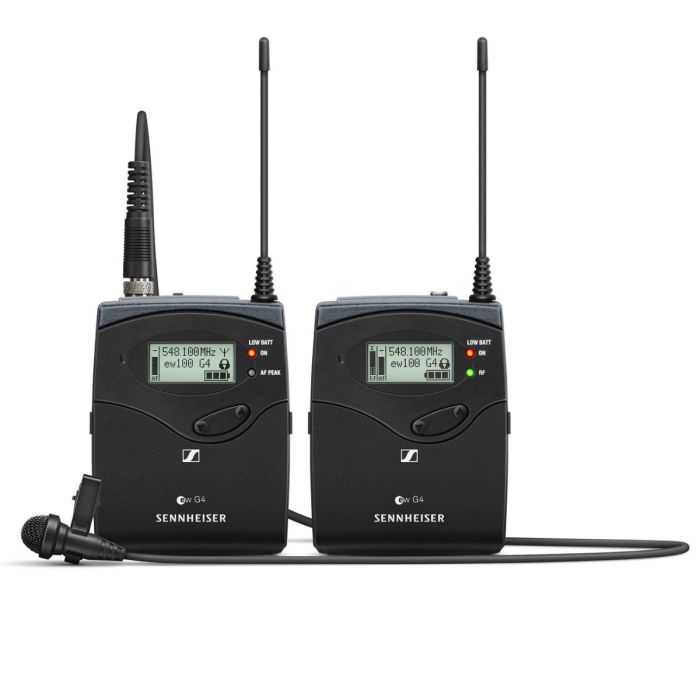

Sennheiser ew 112P G4-B
by SennheiserRugged all-in-one wireless system with high flexibility for broadcast quality sound
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- EK 100 G4 camera receiver
- SK 100 G4 bodypack transmitter
- ME 2 clip-on microphone (ew 112 P variants only)
- 4 AA batteries
- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 100 XLR to 3.5 mm jack adapter cable
- quick guide
- safety guide
- manufacturer declaration sheet
A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Rugged all-in-one wireless system with high flexibility for broadcast quality sound, including the clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) for excellent speech intelligibility and daily on-location use.
Features
-
Rugged all-in-one wireless system with high flexibility for broadcast quality sound
-
Excellent sound and construction quality
-
Easy to use and fast setup time
-
Powerful and reliable wireless transmission
-
Range: up to 100 meters / 330 feet
-
Up to 8 hours of operation time
Modulation | Wideband FM |
Frequency Band | B: (626 to 668 MHz) |
Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
Switching Bandwidth | Up to 42 MHz |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
Principle of Operation | Adaptive diversity |
Sensitivity | < 1.6 μV for 52 dBA eff S/N (with HDX, peak deviation) |
Adjacent Channel Selectivity | ≥ 65 dB |
Intermodulation Attenuation | Typically ≥ 65 dB |
Blocking | ≥ 70 dB |
Squelch | Low: 5 dBµV Middle: 15 dBµV High: 25 dBμV |
Pilot Tone Squelch | Can be switched off |
Antenna Inputs | 2 x BNC sockets |
Compander | Sennheiser HDX |
Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
Total Harmonic Distortion (THD) | ≤ 0.9% |
Maximum AF Output Voltage | 1/8" /3.5 mm Jack: +12 dBu (mono, unbalanced) |
Output Level Range | 42 dB, adjustable in steps of 6 dB |
Temperature Range | 14 to 131°F (-10 to 55°C) |
Power Supply | 2 x AA 1.5 V batteries, or BA 2015 accupack |
Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
Current Consumption | Nominal Voltage: Typical 180 mA With Receiver Switched Off: ≤ 25 µA |
Operating Time | Typically 8 hours |
Dimensions (L x W x H) | 3.2 x 2.5 x 0.9" / 82 x 64 x 24 mm |
Weight | 5.6 oz / 160 g |
SK 100 G4 Wireless Bodypack Transmitter G: (566 to 608 MHz)
Modulation | Wideband FM |
Frequency Range | G: (566 to 608 MHz) |
Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
|
Up to 42 MHz | |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
Frequency Stability | ≤ ±15 ppm |
RF Output Power | Maximum 30 mW at 50 Ohms |
Pilot Tone Squelch | Can be switched off |
Compander | Sennheiser HDX |
AF Frequency Response | Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz |
Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
Total Harmonic Distortion (THD) | ≤ 0.9% |
Maximum Input Voltage | Microphone/Line: 3 V eff |
Input Impedance | Microphone/Line: 40 kOhms, unbalanced / 1 MOhms |
Input Capacitance | Switchable |
Input Sensitivity Range | 60 dB, adjustable in 3 dB steps |
Temperature Range | 14 to 131°F (-10 to 55°C) |
Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
Current Consumption | At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA |
Operating Time | Typically 8 hours |
Dimensions (W x L x H) | 3.2 x 2.5 x 0.6" (82 x 64 x 24 mm) |
Weight | 5.6 oz (160 g) |
ME 2-II Omnidirectional Lavalier Microphone (Black)
Compatibility | AVX, evolution wireless D1, SpeechLine Digital Wireless, XS Wireless 1, XS Wireless 2 |
Transducer | Permanent polarized condenser |
Polar Pattern | Omnidirectional |
Sensitivity | 20 mV/Pa |
EIN | 36 dB |
Maximum SPL | 130 dB |
Operating Voltage | 7.5 V |
Frequency Response | 50 Hz to 18 kHz |
Connector | Threaded EW 3.5 mm connector |
Windscreen | Integrated, fixed |
RF | 100% compliant RF compatibility |
Cable Length | 5.2' / 1.6 m |
Diameter | 0.4" / 10.5 mm |
