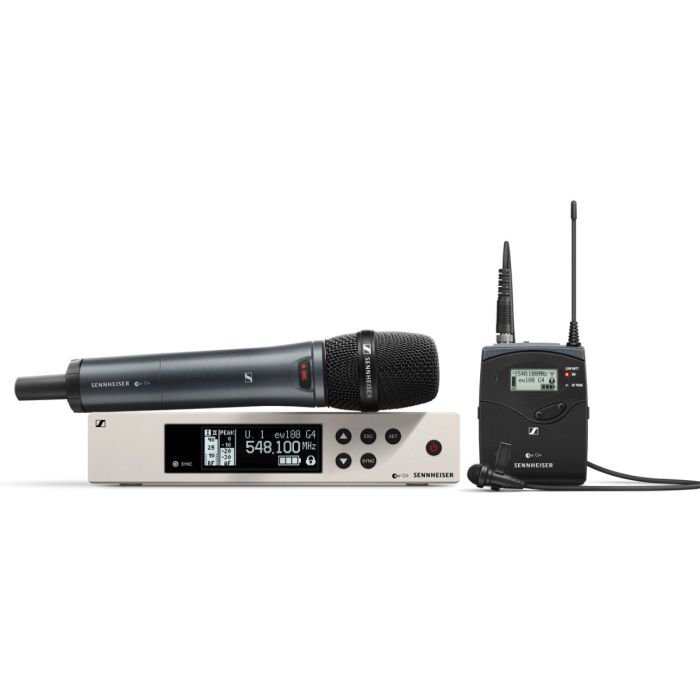

Sennheiser ew 100 G4-ME2/835-S-1G8
by SennheiserEngineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- EM 100 G4
- SK 100 G4
- SKM 100-S G4
- MMD 835-1
- ME 2
- GA 3
- MZQ 1 microphone clamp
- power supply
- 4 AA batteries
- 2 rod antennas
- RJ 10
- quick guide
- safety guide
- manufacturer declaration sheet
- frequency supplement sheet
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.
Dynamic handheld microphone e 835, robust bodypack transmitter and easy clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage.
-
Engineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators.
-
Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage
-
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Fast frequency allocation for up to 12 receivers via new linking functionality
-
Up to 20 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 30 mW) depending on country regulations
Modulation | Wideband FM |
Frequency Range | G: (566 to 608 MHz) |
Transmission Frequencies | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
Switching Bandwidth | Up to 42 MHz |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
Frequency Stability | ≤ ±15 ppm |
RF Output Power | Maximum 30 mW at 50 Ohms |
Pilot Tone Squelch | Can be switched off |
Compander | Sennheiser HDX |
AF Frequency Response | Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz |
Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
Total Harmonic Distortion (THD) | ≤ 0.9% |
Maximum Input Voltage | Microphone/Line: 3 V eff |
Input Impedance | Microphone/Line: 40 kOhms, unbalanced / 1 MOhms |
Input Capacitance | Switchable |
Input Sensitivity Range | 60 dB, adjustable in 3 dB steps |
Temperature Range | 14 to 131°F (-10 to 55°C) |
Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
Current Consumption | At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA |
Operating Time | Typically 8 hours |
Dimensions (W x L x H) | 3.2 x 2.5 x 0.6" (82 x 64 x 24 mm) |
Weight | 5.6 oz (160 g) |
Modulation | Wideband FM |
Frequency Range | G: (566 to 608 MHz) |
Transmission Frequencies | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
Switching Bandwidth | Up to 42 MHz |
Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
Frequency Stability | ≤ ±15 ppm |
RF Output Power | Maximum 30 mW at 50 Ohms |
Pilot Tone Squelch | Can be switched off |
Compander | Sennheiser HDX |
AF Frequency Response | 80 Hz to 18 kHz |
Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
Total Harmonic Distortion (THD) | ≤ 0.9% |
Maximum Input Voltage | 3 V eff |
Input Impedance | 40 kOhms |
Input Capacitance | Switchable |
Input Sensitivity Range | 48 dB, adjustable in 6 dB steps |
Temperature Range | 14 to 131°F (-10 to 55°C) |
Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
Current Consumption | At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA |
Operating Time | Typically 8 hours |
Dimensions (W x L x H) | 2.0 x 10.4 / 50 x 265 mm |
Weight | 15.9 oz / 450 g |
