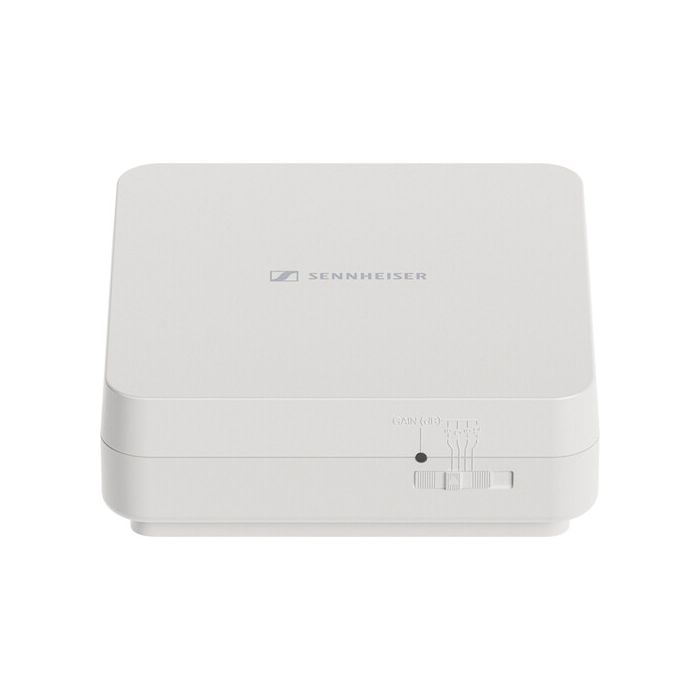

Sennheiser AWM UHF (470 ? 694 MHZ)
by Sennheiser
Availability:
7-10 days delivery
SKU
SEN-508865
For Evolution Wireless Digital System
Mounts on Wall or Ceiling
€467.75
€374.20
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Sennheiser AWM UHF Wallmount Antenna for Evolution Wireless Digital Microphone Systems (UHF I: 470 to 694 MHz)
- Wallmount adapter
- Drilling template
The Sennheiser AWM UHF Wall Mount Antenna is designed to enhance the wireless performance of your Evolution Wireless Digital microphone system and can be installed quickly and easily in any room, on a vertical wall or horizontal ceiling surface, on a mic stand, or on a VESA 100 mount.
The AWM UHF can be connected to any stationary Evolution Wireless Digital receiver or EW-D ASA antenna splitter. It features adjustable gain settings of -6, 0, +6, and +12 dB, with a multicolor LED to display the chosen setting. Power is provided through either a BNC or DC jack.
Features
- For use with Evolution Wireless Digital microphone systems
- Operates in the UHF I: 470 to 694 MHz frequency range
- Active directional antenna
- Discreet design with fully integrated antenna
- Adjustable gain settings of -6, 0, +6, and +12 dB for different cable length
- Mountable to a wall, a ceiling, a stand (with a 3/8"-16 thread), or a VESA 100 mount
- Power supply either via BNC or DC Jack
| Wireless | |
| Antenna Type | Standard |
| Input/Output |
1x Coaxial BNC Female
|
| Compatibility |
Not Specified by Manufacturer
|
| Operating Frequency | 470 to 694 MHz |
| Number of Antennas | 1x Internal |
| Physical | |
| Operating Conditions |
14 to 131°F / -10 to 55°C at 5 to 95% Humidity
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C
|
| Tilt Range | Yes |
| Antenna Mounting |
Not Specified by Manufacturer
|
| Material of Construction | Plastic |
| Color | White |
| Dimensions |
H: 7.1 x W: 7.1 x D: 2.1" / H: 18.00 x W: 18.00 x D: 5.3 cm
|
| Weight | 1.54 lb / 0.7 kg |
| Packaging Info | |
| Package Weight | 2.195 lb |
| Box Dimensions (LxWxH) | 11.4 x 11.2 x 3.8" |
