Seetec P173-9HSD SDI monitor
by Seetec- 17.3" 1920x1080 IPS LCD
- Supports 4K, HD, and SD Formats
- SDI, HDMI, DVI, YPbPr, Composite Inputs
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor
- Power Supply
- V-Mount Battery Plate
- Mini HDMI Cable
- Tally Kit
- Sunshade
- U-Bracket

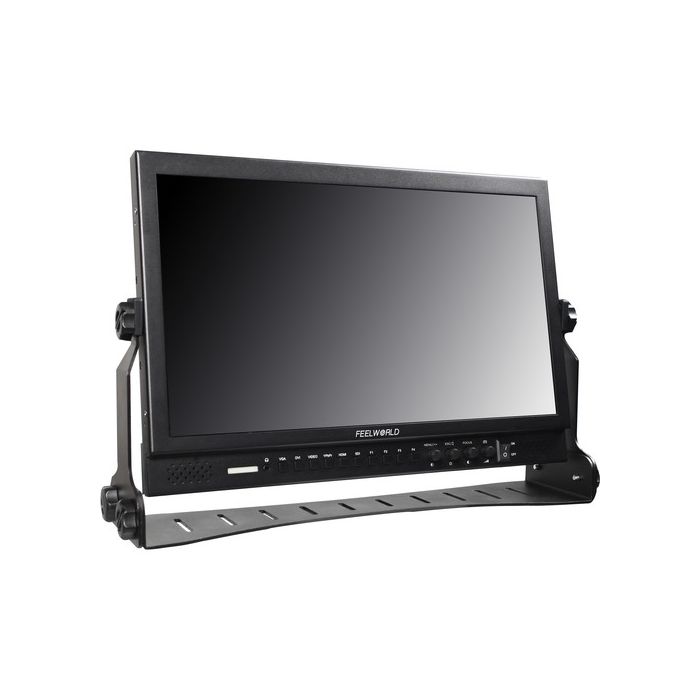

Featuring a full-HD IPS LCD panel, the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor can be used for 4K, HD, as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component and composite. The HDMI input will accept both DCI and UHD 4K signals for high-resolution productions. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. If shooting outdoors attach the included sunhood for optimal contrast. A U-bracket is also included for convenient tabletop mounting.
Monitoring Tools
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- R/G/B-only and monochrome viewing modes
- Camera scaling mode
- Pixel-to-pixel mapping
- Aspect ratio and title-safe markers
- Image flip
- Image freeze
FeelWorld P 9HSD Monitor Specs
| Panel Type | TFT LCD |
| Display Size | 17.3" / 43.9 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° Vertical: 140° |
| Maximum Brightness | 400 cd/m2 |
| Contrast Ratio | 600:1 |
| Dot Pitch | 0.1989 x 0.1989 mm |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers |
| Video | 1 x BNC (3G-SDI) Output 1 x HDMI Type A Output 1 x 3BNC (Component) Output 1 x BNC (Composite) Output 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input 1 x 3BNC (Component) Input 1 x DVI-I Input 1 x BNC (Composite) Input |
| Audio | 1 x RCA Input 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Media/Memory Card Slot | None |
| Video Format | HDMI DCI 4K: 23.98/24 UHD 4K: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 29.97/30/50/59.94/60 576p 576i 480p 480i SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 480i 576i |
| DC Input Power | 9 to 24 VDC |
| Battery Type | None |
| Power Consumption | 26 W (Maximum) |
| Mounting-Hole Pattern | 100 x 100 mm |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 16.3 x 11 x 1.4" / 414 x 280 x 35.1 mm |
| Weight | 6.06 lb / 2.75 kg 7.28 lb / 3.3 kg, Including Bracket |
| Package Weight | 11.5 lb |
| Box Dimensions (LxWxH) | 20.5 x 16.2 x 6.4" |
