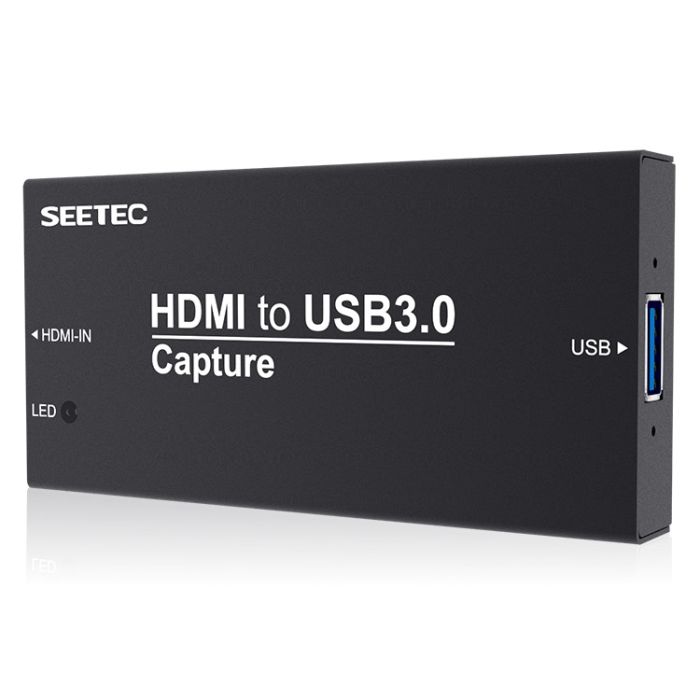

Seetec HTUSB HDMI to USB 3.0 Capture
by Seetec1. It can capture one single channel HD HDMI video signals.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
Seetec HTUSB HDMI to USB 3.0 Capture
1× USB 3.0 Cable
Highest Quality Video
Most consumer video cameras compress HD video to fit longer recordings on to tape and discs. For video editing compressed media needs to be decoded to play back each frame of video and this puts additional strain on your computer's CPU and limits real time editing effects. Capturing directly with HTUSB by passes camera compression by recording directly from the camera's image sensor, so a low cost consumer camera can be used to capture full HD resolution video in broadcast quality!
-
USB 3.0 Fastest Data Transfer Speeds
It's easy to add the amazing quality of Intensity to your laptop, desktop or computer workstation! You can connect to computers using USB 3.0 enjoy the fastest data transfer speeds. Now you can capture the highest uncompressed 1080HD video with portable devices that are powered from the computer connection! That's truly portable!
-
True HDMI Digital Connections
HTUSB features the highest quality HDMI connections that are the worldwide standard for consumer digital video equipment. HDMI connects full HD video quality and digital audio to TVs and more.
Professional Video Standards
HTUSB offer the flexibility of working with compressed and uncompressed video in standard definition PAL/NTSC up to full 1080HD video. You can capture live game play, archive family movies and create amazing videos in full broadcast quality video!
Record your Game Play
Connect Intensity to game consoles for amazing live action game play recording! Now you can capture live game play with full quality and full motion without dropped frames. Archive your gaming forever in digital file formats that are easy to edit, store and playback.
-
Attractive Portable Design
Sits perfectly on your desktop or on location
HTUSB machined from aluminum for portability and exceptional durability. Thin, portable and lightweight, they sit perfectly on your desk or go easily on location.
HTUSB is no need for an external power supply since it's powered by its USB connection, so you really can take it anywhere you work!
Connection
Model |
HTUSB |
Host Interface |
USB3.0, *300-350MB/s throughput (USB2.0, *40MB/s throughput) |
Input Interface |
1 HDMI interface |
HDMI Input Formats
It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Input Formats
Resolutions: 640x360/640x480/720x480/ |
720x576/768x576/800x600/856x480/960x540/ |
1024x576/1024x768/1280x720/1280x800/ |
1280x960/1280x1024/1368x768/1440x900/ |
1600x1200/1680x1050/1920x1080 |
Frame Rate: 25/29.97/30/50/59.94/60 fps |
Output Formats
Resolutions: 640x360/640x480/720x480/ |
720x576/768x576/800x600/856x480/960x540/ |
1024x576/1024x768/1280x720/1280x800/ |
1280x960/1280x1024/1368x768/1440x900/ |
1600x1200/1680x1050/1920x1080/1920x1200/ |
Video Sampling Rate
HDMI: 165MHz
Audio and Video Capture
It meets the standards of UVC (USB video class) and UAC (USB audio class)
Output Color Space
YUY2, RGB24
Onboard Memory
128 MB DDR3,16 bits@ 400MHz
The Support of OS
(x86 and x64 versions): |
Windows 7 |
Windows 8 |
Windows 10 |
Linux (Kernel version 2.6.38 and above) |
OS X (10.8 and above) |
Software Compatibility
QuickTime Broadcaster (OS X) |
QuickTime Player (OS X) |
Daum Potplayer (Windows, OS X) |
XSplit Broadcaster (Windows, OS X) |
VLC (Windows, OS X, Linux) |
Wirecast (Windows, OS X) etc. |
Cloud Video Conferencing Service |
Livestream |
Skype |
Hangouts |
OBS etc. |
General
Power Consumption |
≤5W |
Working Current |
0.8A |
Working Temperature |
-10℃ ~ 50℃ |
Storage Temperature |
-20℃ ~ 60℃ |
Unit Size |
109.5L×53H×15.8D (mm) |
Unit Weight |
148g |
