Seetec ATEM173S-CO SDI monitor
by Seetec- 1920 x 1080 Resolution, 300 cd/m²
- 4 x 3G-SDI Inputs, Quad-Split Display
- 1 x HDMI & 4 x 3G-SDI Outputs
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- FeelWorld 17.3" Live Stream HD Broadcast Director Monitor (Carry-On Case)
- Power Adapter
- V-Mount Battery Plate
- Mini-HDMI Cable
- SDI Cable
- Sun Hood
- Transport Case

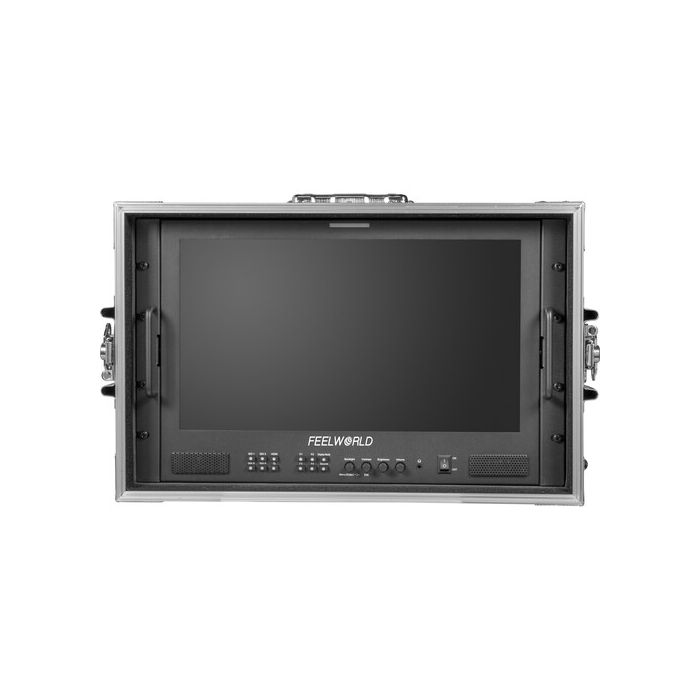

The 17.3" Live Stream HD Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and 300 cd/m2 brightness. The rear panel contains four 3G-SDI inputs that support up to 2K input, there are four 3G-SDI outputs and one HDMI output, and it supports quad-view, dual-view, and PiP display layouts so you can view inputs simultaneously. The monitor is installed in a carry-on aluminum case that features a rear cover to access the ports and battery, and the front cover installs to protect the monitor for transport. It can be carried using a handle on top.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field when you are away from a mains source, and a separately available Gold mount plate is also available. A VESA mounting pattern is on the back for alternate mounting options.
Image Features
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking focus assist
- False color
- Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
- Display rotate (0, 90, 180, 270°, H/V mirror)
- Check field (red, green, blue, mono)
- Image freeze
- Zoom
- Pixel-to-pixel
- Center marker
- Screen marker (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
- Line color (red, green, blue, white)
FeelWorld ATEM173 Specs
Display
|
Panel Type |
IPS-Type LCD |
|
Display Size |
17.3" / 43.9 cm |
|
Resolution |
1920 x 1080 |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
Horizontal: 178° (89/89) |
|
Touchscreen |
No |
|
Maximum Brightness |
300 cd/m2 |
|
Contrast Ratio |
700:1 |
|
Dot Pitch |
0.1989 x 0.1989 mm |
|
HDR Compatibility |
Yes |
|
Pixels Per Inch (ppi) |
127 ppi |
|
Image Controls |
Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter |
I/O
|
Video |
4 x BNC (3G-SDI) Input |
|
Audio |
1 x 1/8" / 3.5 mm Headphone Output |
|
Built-In Speaker |
None |
|
Power I/O |
1 x Barrel (12 VDC) Input |
|
Other I/O |
1 x GPI (RJ45) Input |
|
Media/Memory Card Slot |
None |
|
Wi-Fi |
None |
Format Support
|
Video Format |
SDI (8-Bit) |
|
Gamma Curve |
Rec709 |
Power
|
DC Input Power |
12 VDC |
|
Battery Type |
1 x V-Mount (Interchangeable Mount) |
|
Power Consumption |
22 W |
Mounting
|
Mounting-Hole Pattern |
100 x 100 mm, 75 x 75 mm |
Environmental
|
Operating Temperature |
14 to 122°F / -10 to 50°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
General
|
Dimensions |
16.7 x 11.7 x 0.9" / 42.5 x 29.6 x 2.3 cm, Excluding Case |
|
Weight |
6.26 lb / 2.84 kg, Excluding Case |
