Seetec ATEM156S-CO SDI monitor

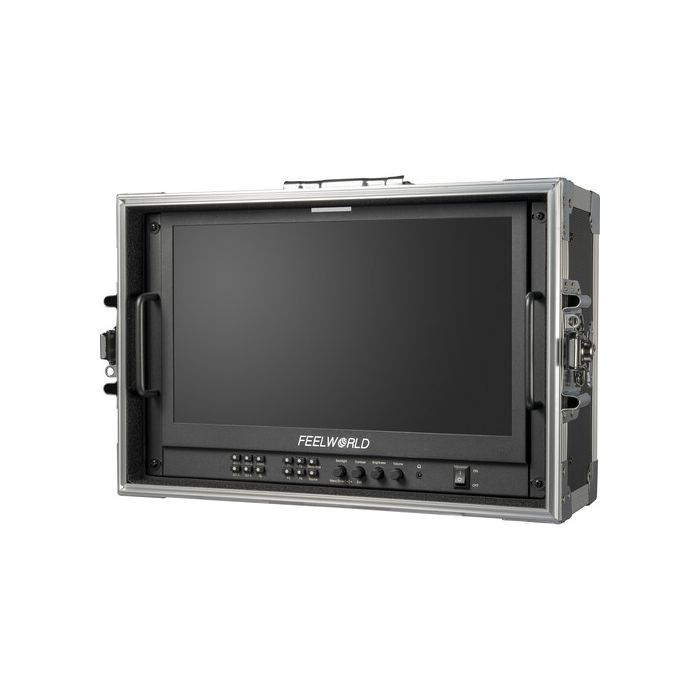

The 15.6" Multicamera Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and 200 cd/m2 brightness. The rear panel contains one HDMI input, four 3G-SDI inputs, and four 3G-SDI outputs, and it supports quad-view and PiP display layouts so you can view inputs simultaneously. The monitor is installed in a carry-on aluminum case that features a rear cover to access the ports and battery, and the front cover installs to protect the monitor for transport. It can be carried using a handle on top.

Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A USB input allows you to add custom 3D LUTs and supports GPI and RS-485 control. A V-mount plate is built into the back for powering in the field, away from a mains source, and a VESA mounting pattern is on the back for alternate mounting options.

Key Features

15.6" 1920 x 1080 Full HD screen

Rugged aluminum housing; durable

Flexible and intuitive button operation; easy to use

Multiple display modes (single, PiP, quad)

Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)

Waveform, vectorscope, RGB histogram, focus assist, and monochrome functions; you can accurately expose and focus every shot

Multiple interfaces include four 3G-SDI inputs and outputs, one HDMI input, RS-485, and GPI

Stereo earphone output

VESA-standard mounting points support for bracket or hanging wall installations

Image Features

• Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
• Peaking focus assist
• False color
• Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
• Display rotate (0, 90, 180, 270°, H/V mirror)
• Check field (red, green, blue, mono)
• Image freeze
• Zoom
• Pixel-to-pixel
• Center marker
• Screen marker (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
• Line color (red, green, blue, white)
