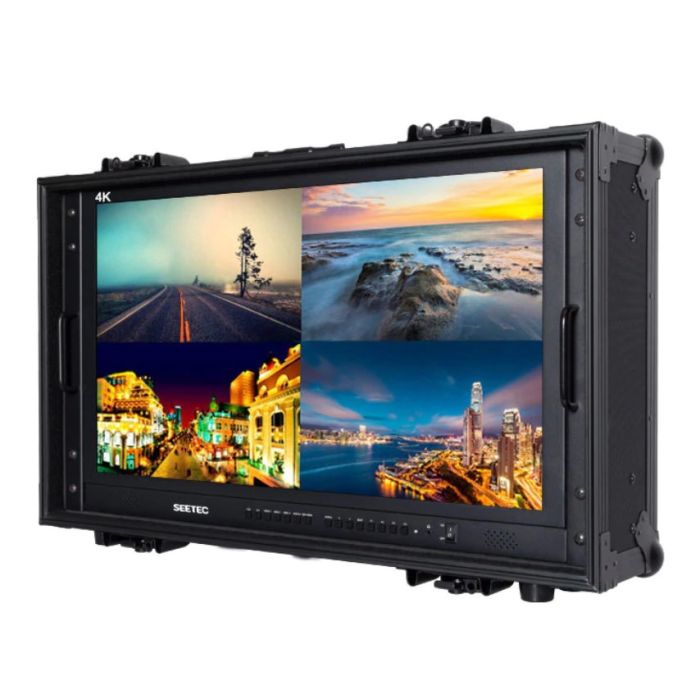

Seetec 4K280-9HSD-SCH-CO SDI monitor
by Seetec- Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
- HDMIX4, DVI, VGA, Audio(L/R) inputs
- Built-in SDI ⇋ HDMI Cross Converter
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
1x 4K280-9HSD-SCH-CO Monitor
1× Mini HDMI Cable
1× V Battery Plate
1× 5A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability.
More Auxiliary Functions
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.
Quad Split LCD Display
SEETEC new 4K280-9HSD-SCH-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.
High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.
Rich Interfaces
Multiple inputs meet the best need of various professional display solutions.
Built-in SDI ⇋ HDMI Cross Converter
You can easy realize SDI/ HDMI signal Conversion by SEETEC 4K280-9HSD-SCH-CO, no need other equipment.
Input:
1 X HDMI, 1 X SDI
Output:
1 X HDMI, 1 X SDI
SDI ⇋ HDMI Cross Conversion Mode:
SDI to HDMI, SDI to SDI
HDMI to SDI, HDMI to HDMI
Innovative Design Portable Aviation Aluminum Case
Specifically Design for Field Production
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The 4K280-9HSD-SCH-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.
Collapsable Sunshade
Design for easier viewing in bright environments.
Display Spec.
Model |
: 4K280-9HSD-SCH-CO |
Screen Size |
: 28" |
Color Depth |
: 1.073G (10 bits) |
Resolution |
: 3840×2160 pixels |
Pixe Pitch |
: 0.16 (H) × 0.16 (V) mm |
Aspect Ratio |
: 16:9 |
Brightness |
: 300cd/m² |
Contrast Ratio |
: 1000:1 |
Backlight |
: LED |
Viewing Angle |
: 170°(H) / 160°(V) |
Input
4 X HDMI |
: HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ) |
1 X DVI |
: DVI |
1 X VGA |
: VGA |
2 X RCA |
: Audio(L/R) |
1 X DB-9 |
: Tally |
Audio
Audio Out |
: Headphone, Speaker |
HDMI Support Format
HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60) |
HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30) |
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
Built-in SDI⇌HDMI Cross Converter
SDI to HDMI, SDI to SDI, HDMI to SDI, HDMI to HDMI |
SDI Signal Conversion Support Format
3G-SDI:1080P(60/59.94/59/50) |
HD-SDI:1080P(30/29.97/25/24) |
1080I(60/59.94/50) |
1080PsF24 |
720P(60/59.94/50/30/25/24) |
SD-SDI:576I(50),480I(60) |
HDMI Signal Conversion Support Format
1080P(60/59.94/50/30/29.97/25/24) |
1080I(60/59.94/50) |
1080PsF24 |
720P(60/59.94/50/30/25/24) |
576I(50),480I(60) |
General
Input Voltage |
: DC12~24V (XLR) |
Power Consumption |
: ≤45W |
Working Temperature |
: -10°C~50°C |
Storage Temperature |
: -20°C~60°C |
Unit Size (mm) |
: 731L×410H×39D (mm) (W/O Suitcase) / 780L×470H×250D (mm) (W/ Suitcase) |
Unit Weight |
: 21.7kg (with Suitcase) |
Advanced Features
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
* Peaking Focus Assist |
* Overscan |
* Display Rotate (0°, 90°, 180°, 270°) |
* Check Field (Red, Green, Blue, Mono) |
* Image Freeze |
* Zoom |
* Pixel to Pixel |
* Center Marker |
* Screen Marker (80%, 85%, 90%, 93%, 96%) |
* Line Color (Red, Green, Blue, White) |
* Color Temperature Adjustment |
* Built-in LED tally indicators (Red, Green, Yellow) |
