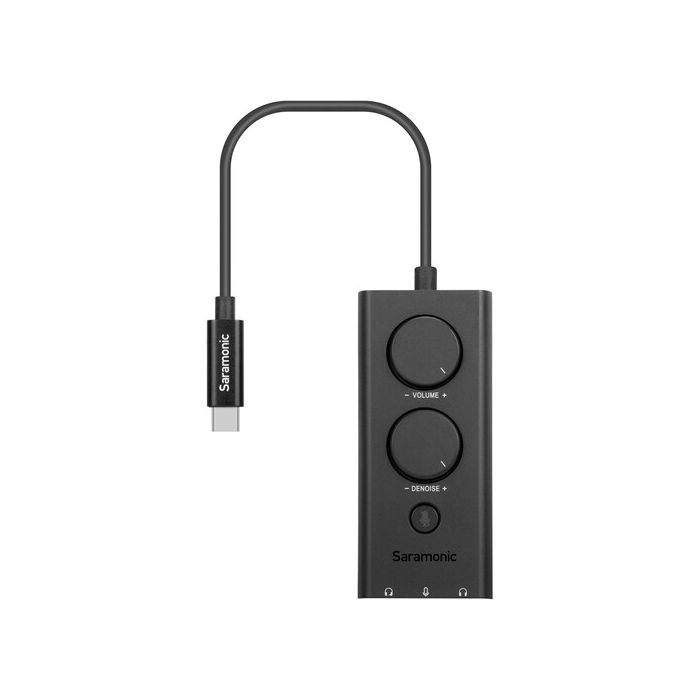

Saramonic SR-EA5 Audio Interface

by Saramonic
Availability: 7-10 days delivery
SKU
SR-EA5

Provides Clearer Audio with Less Noise
Use with Computers and Mobile Devices
3.5mm Input/Output for Earbuds with Mic
3.5mm Input for Microphone
3.5mm Headphone Output
Noise Reduction Control
Volume Control

€75.00 €60.00

Package includes

  • Saramonic SR-EA5 Denoise Sound Card
  • USB Type-C to USB Type-A Adapter

Get better quality sound with the SR-EA5 Denoise Sound Card from Saramonic. This portable audio interface features a 3.9" connecting cable with a USB Type-C port and a USB Type-A adapter, allowing you to connect a wide range of mobile devices and computers. Analog connections include a 3.5mm connector that allows you to interface with headphones or wired earbuds with a microphone, another 3.5mm port that supports a TRS microphone connection, and yet another 3.5mm jack designed for monitoring via TRS or TRRS headphones.

The SR-EA5 gets power from the USB connection, requires no drivers, and offers simple and streamlined controls. One knob controls the volume level with a range from 0 to 20 dB, while a second knob lets you adjust the amount of noise cancelling from 0 to -45 dB. A mute button conveniently cuts off input and output audio.



At a Glance

  • Adjustable audio sound
  • Noise-reduction design
  • One mute button
  • No driver required
  • Compatible with multiple devices
Channels of I/O
Analog:
1 Inputs / 2 Output at 48 kHz
Maximum Sampling Rate
48 kHz / 16-Bit
Number of Microphone Inputs
1
Analog Audio I/O
1x 1/8" / 3.5 mm TRS Unbalanced Headset In/Out
1x 1/8" / 3.5 mm TRS Balanced Mic Input
1x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output
Digital Audio I/O
No
Host Connection
1x USB-C
OS Compatibility
macOS 10.12
Windows 10
Power Requirements
USB Bus Power
Channels of I/O
Analog:
1 Inputs / 2 Output at 48 kHz
Built-In DSP
No
Maximum Sampling Rate
48 kHz / 16-Bit
Number of Microphone Inputs
1
Built-In Microphone
No
Signal Processing
Pad
No
Gain/Trim Range
0 dB 20 dB
Solo/Mute
Mute per Master
Connectivity
Analog Audio I/O
1x 1/8" / 3.5 mm TRS Unbalanced Headset In/Out
1x 1/8" / 3.5 mm TRS Balanced Mic Input
1x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output
Digital Audio I/O
No
Host Connection
1x USB-C
Host Connection Protocol
Not Specified by Manufacturer
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
20 Hz to 20 kHz
Headphone Output Power
15 mW
SNR
> 80 dB
Digital Audio
Sample Rates
48 kHz
Bit Depths
16-Bit
Sync Sources
No
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.12
Windows 10
Mobile App Compatible
Yes: Android & iOS
Power
Power Requirements
USB Bus Power
AC/DC Power Adapter
5 V at 200 mA
Physical
Operating Temperature
-4 to 131°F / -20 to 55°C
Dimensions
3.1 x 1.4 x 0.6" / 8 x 3.5 x 1.6 cm
Weight
1.3 oz / 36.5 g (with Accessories)
Packaging Info
Package Weight
0.155 lb
Box Dimensions (LxWxH)
6.1 x 3.15 x 0.9"
