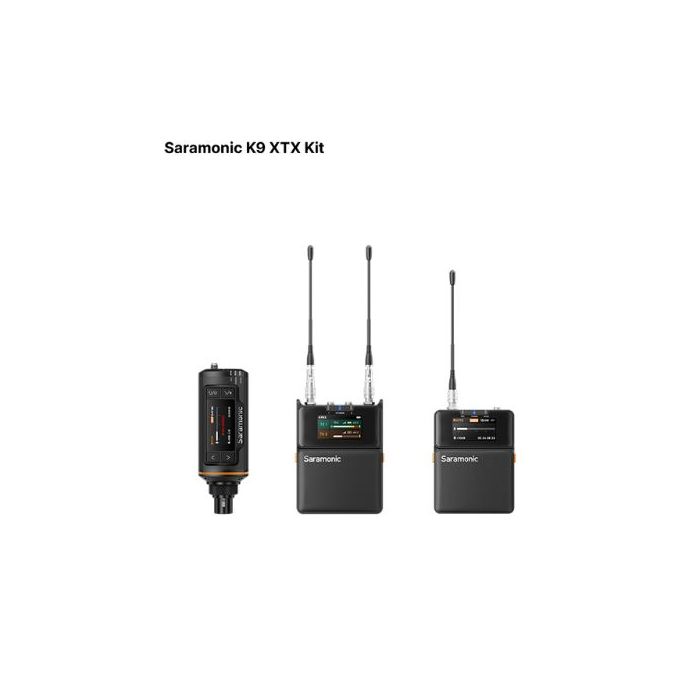

Saramonic K9 XTX Kit
by SaramonicThe Saramonic K9 XTX is a wide-band plug-on digital wireless transmitter designed for professional XLR microphones and line-level sources. With adaptive 3V–48V phantom power, it connects directly to boom poles or handheld microphones for reliable wireless audio transmission.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Transmitter (K9 XTX) *1
- Receiver (K9RX) *1
- Transmitter (K9TX) *1
- Cold Shoe Mount *1
- USB-C to USB-A Adapter *1
- Antenna Length and Frequency Description Card *1
- SMA Elbow Antenna *2
- SMA Antenna *2
- 64 GB MicroSD Card *2
- Lithium Iron Battery Pack *3
- Belt Clip for RX *1
- Belt Clip for TX *1
- Lavalier Microphone *1
- Foam Windscreen for Lavalier Microphone *1
- Fur Windshield, Mic Clip *1
- Lav Mic Case *1
- 3.5 mm TRS to TRS Audio Cable *1
- XLR Male to XLR Female Audio Cable *1
- USB-C to USB-C Data Cable *1
- 3.5 mm TRS to XLR Audio Cable *2
- Velcro Cable Ties *5
- Carrying Case *1
- Colored Ring for K9 XTX *8
- Colored Tag for K9 RX *16
- Colored Tag for K9 TX *8
The Saramonic K9 XTX is a wide-band plug-on digital wireless transmitter designed for professional XLR microphones and line-level sources. With adaptive 3V–48V phantom power, it connects directly to boom poles or handheld microphones for reliable wireless audio transmission. Built-in 32-bit float recording and timecode support ensure high-quality audio and an efficient production workflow.
Key Features
- 550–960 MHz UHF coverage with GPS-based frequency updates for worldwide compatibility.
- Provides 3V/5V/12V/24V/48V phantom power for use with microphones and line level signal sources.
- 32-bit float onboard recording with 64 GB storage for secure backup.
- Transparent audio quality with 130 dB dynamic range.
- Built-in timecode for multi-camera alignment .
- 7+ hours of use with 2 AA batteries.
For Global Production
Greater Geographical Coverage
Designed with ultra-wide 550-960 MHz UHF coverage and GPS-based frequency system, K9 XTX digital wireless microphone system automatically adapts to local RF regulations wherever you work. It's the perfect choice for professionals on the move who need a portable wireless system with superior range and more reliable connectivity than typical 2.4 GHz systems.
Broad Mic Support
Selectable Phantom Power
The plug-on transmitter design works seamlessly with any microphone or line-level source via a standard 3-pin XLR connector. Phantom power is selectable at 3V, 5V, 12V, 24V and 48V, and can be turned off for use with dynamic microphones and line-level devices right out of the box.
Reliable Recording
32-Bit Float On-Board REC
With support for 32-bit float internal recording, the K9 XTX captures a 130 dB dynamic range that not only delivers distortion-free audio but also adapts better to complex sound environments. It delivers clean, reliable audio in unpredictable recording scenarios while providing greater flexibility and protection during post-production.
Synchronization
Timecode Sync
K9 XTX keeps sync simple from the first take. Built-in timecode reading and generation, wireless sync through the Saramonic System App, and wired input from third-party timecode devices—keeping audio and video precisely aligned while saving time in post-production.
Saramonic System App
Remote Mobile Control
The Saramonic System App enables remote control of up to 48 devices, allowing you to manage device groups, activate sleep mode to extend battery life, update firmware, and more. This means you can make adjustments to your audio settings without having to physically touch the devices, making it easier to work when you're on set.
Extended Runtime
Continuous Power Support
Powered by two exchangeable AA batteries, K9 XTX delivers 7+ hours of operation. The display shows battery status at a glance, while USB-C external power and charging support give you extra flexibility when the shoot runs long.
Small Details That Matter on Set
Stable Wireless Transmission
The K9 XTX delivers stable transmission up to 150 m.
Solid Locking Mechanism
The locking XLR connector ensures a firm and secure fit.
Easy-to-Navigate
The K9 XTX features a large color screen with easy-to-read menus and controls, so you can easily check device status and get instant feedback during production.
Built For Harsh Conditions
Built to perform from -30°C to 60°C, the K9 XTX withstands extreme cold and heat in demanding environments.
| RF Modulation | Proprietary Digital RF Modulation |
| RF Frequency Range | 550 MHz to 960 MHz (assign local legal frequency bands based on the region) |
| RF Power | 10 mW, 25 mW, 50 mW, 100 mW |
| RF Frequency Step | 100 kHz |
| RF Bandwidth | 200 kHz |
| Channel RF Spacing | 700 kHz |
| Antenna Connector | 50 Ω SMA |
| Dynamic Range | 130 dB |
| Distortion | <0.5% |
| Frequency Response | 20 Hz to 20 kHz |
| Low Cut | OFF, 75 Hz, 100 Hz, 150 Hz |
| Mic Power | MIC-3 V, MIC-5 V, MIC-12V, MIC-24V, MIC-48V, LINE |
| Mic Connector | XLR |
| Gain Range | 0 dB to 30 dB |
| ADC Sampling Rate | 48 kHz |
| Bit Depth | 24 bit |
| Clock Accuracy | 0.15 PPM (1 frame out in 48 hours) |
| Timecode Type | LTC (SMPTE) |
| Timecode Frame-Rates | 23.98, 24, 25, 29.97, 29.97DF, 30 |
| Media | MicroSD card (up to 256 GB) |
| File Format | .WAV |
| Recording Sampling Rate | 48 kHz |
| Record Format | 24-bit or 32-bit float |
| EIN | -132 dBV (-130 dBu) max (A-weighting, gain= 30 dB, 150 ohm source impedance |
| Power Supply | External Battery / Power |
| Battery Life | 7+ hours with 2 AA batteries |
| Dimensions | 80 x 62 x 19 mm |
| Weight | 220 g (excluding batteries and antenna); |
| 252 g (including batteries and antenna) | |
| Operating Temperature | -30°C to +60°C |
| Storage Temperature | -40°C to +85°C |
