Samyang 12mm T3.1 VDSLR ED AS NCS Fish-Eye Canon M
by Samyang- Extra-low dispersion lens (ED)
- Glass aspherical lens (ASP)
- Nano Coating System (NCS) of Samyang Optics
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Exceptional performance for cinematography with full-frame Samyang 12mm fisheye lens
- Extra-low dispersion lens (ED)
- Glass aspherical lens (ASP)
- Nano Coating System (NCS) of Samyang Optics
- Circular aperture with 7 blades
- Samyang Optics VDSLR II Cine Lens Line Up
Manual Focus Fisheye Cine Lens

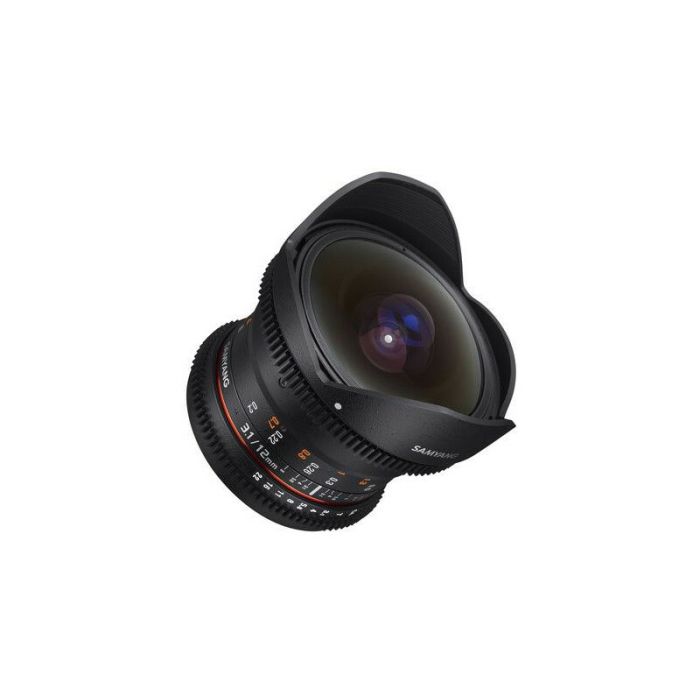

Samyang Optics 12mm T3.1 VDSLR ED AS NCS Fish-eye is a manual focus fisheye VDSLR cine lens designed for full frame sensor sizes.
VDSLR Cine Lens Features
Samyang 12mm T3.1 VDSLR ED AS NCS Fish-eye allows more delicate video work with T number marks. The focus gear ring is installed for follow focus system. You may change the aperture quietly and smoothly with the uncoupled aperture gear rings. Also, distance scale and T numbers are marked on both sides of the lens for convenience.
Optical Features
Samyang 12mm T3.1 VDSLR ED AS NCS Fish-eye is a manual focus lens with a low T number. You may control the lens precisely when shooting under various exposure environment including relatively dark or too bright situations. This lens features 12 lenses in 8 groups including 2 glass aspherical lens (ASP), and 3 extra low dispersion lens (ED) to offer high resolution. Also Nano Coating System (NCS) of Samyang Optics is used to optimize the light penetration and minimizes flare and ghost. With such optical construction, it has 0.2m of minimum focal length to film subjects in near distance. Stereoscopic projection optical design delivers soft and stabilized fish-eye distortion effect.
Hardware Features
There are 7 aperture blades designed to be almost as a full circle when aperture is closed which expresses starlike ray clearly and beautifully. The frame of the lens is compact and solid since it is made of high-strength aluminum alloy so you can create trustworthy images. Also, detachable petal-shaped lens hood minimizes flare and ghost by sheltering lens from unnecessary lights. Available for 10 camera mounts: Canon, Canon M, Nikon, Pentax, Sony ∝, Sony E, Fujifilm X, Samsung NX, Four-Thirds, MFT.
Samyang Optics VDSLR II Cine Lens Line Up
Samyang 12mm T3.1 is one of 9 Samyang Optics VDSLR II Cine Lens Line Up for full frame image sensor sizes. The lenses produce the same image color and have a united location of aperture and focus gear ring to maximize the convenience when filming.
| Lens Type | Prime Lens |
| Suitable for | Canon |
| Maximum Aperture | T3.1 |
| Optical Stabilized | No |
| Lens structure (elements/groups) | 12/8 |
| Component for | SLR |
| Lens Type | Groothoeklens type "fish eye" |
| Minimum aperture number | 22 |
| Closest focusing distance | 0,20 m |
| Maximum aperture number | 3,1 |
| Lens mount interface | Canon M |
| Focus adjustment | Handmatig |
| Fixed focal length | 1,2 cm |
| Number of diaphragm blades | 7 |
| Number of aspheric elements | 2 |
| Manual focus | - |
| Diameter | 8,16 cm |
| Length | 9,86 cm |
| Weight | 535 g |
| Colour of product | Zwart |
