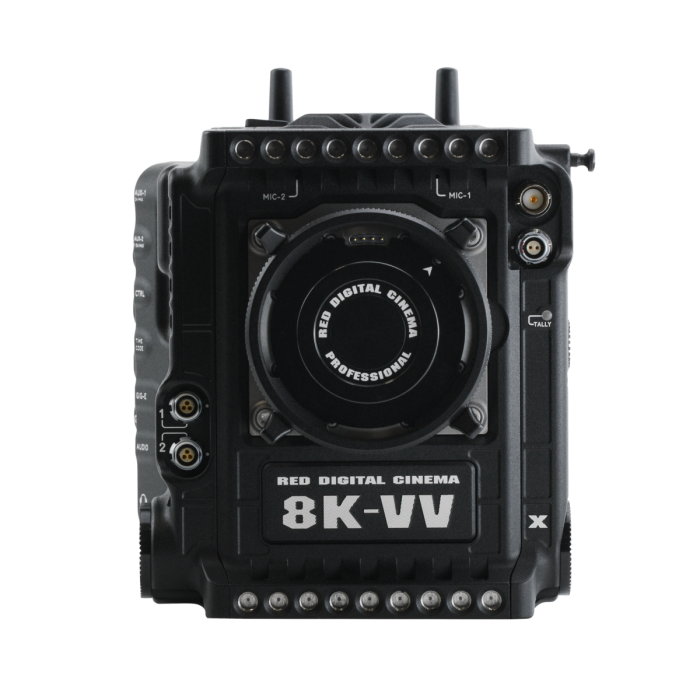

RED V-RAPTOR XL [X] 8K VV (V-Lock)
by REDV-RAPTOR® XL [X] 8K VV combines the strengths of RED’s two families of cameras into one powerful all-purpose workhorse.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1x V-RAPTOR XL [X] 8K VV (V-Lock) Body
- 1x V-RAPTOR XL PL Mount
- 1x V-RAPTOR XL PL Mount Shim Pack
- 1x RED AC Power Adaptor Pack 270W
- 1x 3-Pin XLR-to-4-Pin 2B Power Cable (10')
- RED Logo Sticker
- V-RAPTOR XL [X] Information Card (incl. registration and support info)
AMAZING IMAGE, ENHANCED ON-SET EXPERIENCE
V-RAPTOR® XL [X] 8K VV combines the strengths of RED’s two families of cameras into one powerful all-purpose workhorse. The frame rates, lowlight performance, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO®, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED’s newest 8K VV sensor, V-RAPTOR XL [X] leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a large-scale-production ready XL camera body.
TOOLS OF THE TRADE
V-RAPTOR XL [X] is designed to support high-end motion picture and television productions as well as any filmmaker who would benefit an all-in-one solution.
- Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.
- Built-in electronic ND allows cinematographers to precisely select their density in 1/4, 1/3, and full stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.
- 12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place.
- Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3 RED Touch 7.0” LCD, supports any camera operators viewing preference.
- Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT, giving them access to everything they need at their cart.
- Improved in-camera audio performance for run and gun single system audio setups.
Additionally, the V-RAPTOR XL [X] and the DSMC platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED® Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.
GLOBAL VISION
V-RAPTOR XL [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision’s Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HDR finishes, or softer and more subtle highlight roll-off for SDR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrame™ or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.
SENSOR TYPE | V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS |
EFFECTIVE PIXELS | 8192 x 4320 |
SENSOR SIZE | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) |
DYNAMIC RANGE | 17+ stops |
MOUNT TYPE | Integrated locking RF mount with electronic communication |
Supports /i PL lenses with RED RF to PL Adapters | |
Supports Canon EF Adapter with communication and other adapters based on the RF mount | |
MAX DATA RATES | Up to 800 MB/s using RED branded or other qualified CFexpress media cards1 |
REDCODE® RAW MAX FRAME RATES | 120 fps at 8K 17:9, 150 fps at 8K 2.4:1 |
140 fps at 7K 17:9, 175 fps at 7K 2.4:1 | |
160 fps at 6K 17:9, 200 fps at 6K 2.4:1 | |
192 fps at 5K 17:9, 240 fps at 5K 2.4:1 | |
240 fps at 4K 17:9, 300 fps at 4K 2.4:1 | |
320 fps at 3K 17:9, 400 fps at 3K 2.4:1 | |
480 fps at 2K 17:9, 600 fps at 2K 2.4:1 | |
BEST AVAILABLE REDCODE® SETTINGS | REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps |
REDCODE LQ and ELQ at 8K 17:9 up to 120 fps | |
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps | |
REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps | |
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps | |
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps | |
REDCODE® RAW ACQUISITION FORMATS | 8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x |
7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x | |
6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x | |
5K 17:9, 2:1, 2.4:1, 16:9, 1:1 | |
4K 17:9, 2:1, 2.4:1, 16:9, 1:1 | |
3K 17:9, 2:1, 2.4:1, 16:9, 1:1 | |
2K 17:9, 2:1, 2.4:1, 16:9, 1:1 | |
APPLE PRORES | Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P |
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P. | |
CONSTRUCTION | Aluminum Alloy |
DIMENSIONS | 149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.) |
WEIGHT | 4.03 lbs / 1.83 kg (without body cap and CFexpress card) |
MEDIA TYPE | CFexpress Type B |
BATTERY TYPE | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1 |
DC POWER INPUT | 11-17 V via 6-Pin DC-IN |
OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
STORAGE RELATIVE HUMIDITY | 0% to 85% non-condensing |
RED GLOBAL VISION | Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios. |
Phantom Track recording mode to capture multiple LED instances as dedicated clips. | |
COLOR MANAGEMENT | Image Processing Pipeline 2 (IPP2) |
Supports 33×33×33 3D LUTs | |
Supports import and adjustment of CDLs | |
AUDIO | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz |
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz | |
3.5mm stereo headphone port | |
AUTOFOCUS | Phase Detect with Face Detection |
IP CONNECTED | Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110. |
Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3 | |
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload | |
Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload | |
MONITOR OUTPUTS | Proprietary Top Accessory Port for Monitoring and Control |
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes | |
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p | |
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p | |
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p | |
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p | |
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio | |
MONITOR OPTIONS | DSMC3 RED Touch 7.0” LCD |
RED Compact EVF with DSMC3 Adapter A | |
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing | |
Integrated 2.4" LCD for camera control (no preview video) | |
ADDITIONAL I/O | Tri-Level Genlock Input via 9-Pin EXT |
LTC Timecode Input via 9-Pin EXT | |
RS232 CTRL (using RCP2) via 9-Pin EXT | |
RED CONTROL & RED CONTROL PRO | Access full camera controls and live preview from iOS or Android devices |
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location. | |
Standard app available from the Apple App Store and Google Play Store. | |
RED Control Pro available via Apple App store only and requires additional purchase. | |
RED Control works wirelessly or wired via USB-C |
