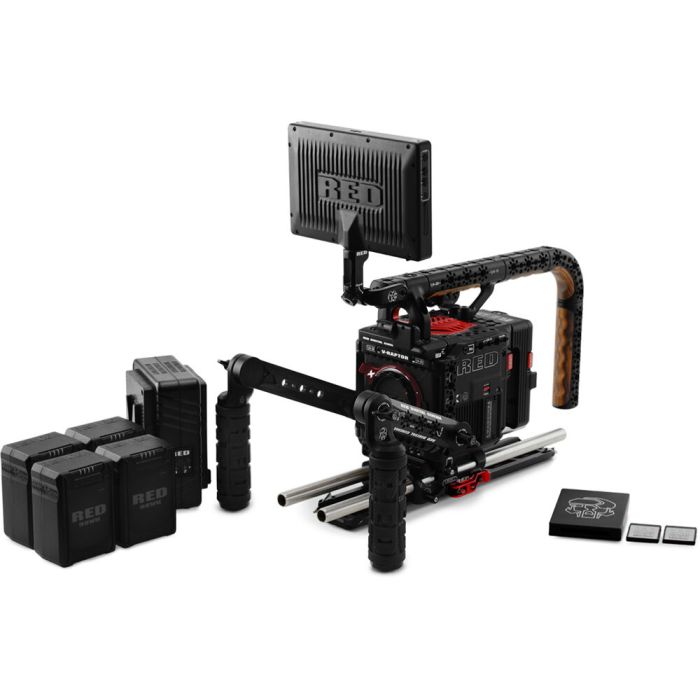

RED V-RAPTOR [X] 8K VV Production Pack (V-Lock)

RED DIGITAL CINEMA V-RAPTOR [X] 8K VV Camera

Providing the latest advancements in digital cinema, the V-RAPTOR [X] 8K VV Camera pairs the strengths of the RED DIGITAL CINEMA V-RAPTOR line with the advanced global shutter of the KOMODO camera. This new DSMC3 flagship camera is the first large-format global shutter camera and the first to offer RED's Global Vision with a suite of tools that provide unprecedented flexibility and dynamic range. The powerful, all-purpose V-RAPTOR [X] incorporates 8K resolution, crisp global shutter, optimal low-light performance, and high frame rate functions in a compact, feature-rich body weighing just over 4 lb.

New Large-Format Standard
This new DSMC3 flagship camera is the first large-format global shutter camera and the first to offer RED's Global Vision with a suite of tools that provide unprecedented flexibility and dynamic range. Key features shared with the original V-RAPTOR include a locking Canon RF lens mount, a single CFexpress Type B card slot that supports up to 8K120 capture, and two unique 12G-SDI monitoring outputs. The V-RAPTOR [X] 8K VV also features a redesigned sensor cavity that mitigates stray light and improves contrast, plus improved in-camera audio preamps.

Advanced, Intelligent Focus
In-camera processing and on-sensor, enhanced phase-detection autofocus plus all-new face detection enables the V-RAPTOR [X] to offer versatility and confidence to all levels of filmmakers.

Global Shutter
The global shutter accurately captures your subject's motion, no matter how fast they're moving, with no distortion or Jello-like effects sometimes found with a rolling shutter. With the global shutter, you can capture every movement, flash, and burst without any compromise in image quality, dynamic range, or flexibility in post-production.

RED Global Vision
With the V-RAPTOR [X] 8K VV, RED has introduced its Global Vision suite of tools that uses the global shutter sensor to offer even greater flexibility and ease of use throughout your production process. These tools include Extended Highlights for increasing detail, producing finer HDR finishes or softer, more subtle highlight roll-offs when using SDR. Extended Highlights also offers 3+ stops of additional dynamic range, maintaining color and detail even within extreme highlights.

Dynamic Range
The 17+ stops of dynamic range in standard modes and up to 20+ with Extended Highlights enable the V-RAPTOR [X] to deliver both smooth highlight roll-off and uncompromising low-light performance.

Phantom Track
The Phantom Track function streamlines any virtual production workflow using GhostFrame or frame remapping, capturing distinct R3D clips for each subframe slice in addition to enabling monitoring of either slice live on set over each SDI output. This enables your director and talent to work with the aid of a green screen background while the VF/X team can simultaneously view the frame without having to view or lock in that background. Phantom Track can also be used when applying dedicated ad overlays during a live broadcast.

Up to 8K at 120 fps
Unmatched frame-rate performance enables V-RAPTOR [X] users to leverage creative elements like time-lapse or speed ramping or to extract ultrasharp still photos. Frame rate options include 8K, 6K, 4K, and 2K selections.

Built-In Control Display
The integrated side display provides intuitive, easily navigable, and comprehensive control, including in-camera format selections, customized buttons, and more.

Virtual Production/Advanced Connectivity
The V-RAPTOR [X] 8K VV uses a DSMC3 platform to offer advanced connectivity solutions like remote control, remote monitoring, in-camera Frame.io integrations, AWS (Amazon Web Services) direct upload, the RED Connect module for live 8K R3D video over IP or live 4K via SMPTE ST 2110, and more. These enhanced features put the V-RAPTOR [X] at the forefront of technology used for virtual production.

Live Streaming and Control Pro App
Connect the V-RAPTOR [X] using fiber cable and the RED CONNECT module to live stream 8K full-resolution, cinematic video over an IP network. Use the RED Control Pro iOS/Android app and the all-new RED CONNECT technology to unlock the V-RAPTOR [X]'s capabilities.

All-New Audio Architecture
Newly engineered audio hardware provides cleaner, clearer audio when using external microphones with the V-RAPTOR [X].

Durable, Rugged Design
Designed with water and dust-resistant materials in critical areas of its body, the V-RAPTOR [X] is suitable for a wide variety of environments. However, it is not waterproof and should be handled as you would any high-end electronics.

RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card

Certified for RED V-RAPTOR and KOMODO-X camera systems, the 2TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate capture. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 2TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 1785 MB/s.

Durable Angelbird Build
Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.

Compatibility
RED V-RAPTOR 8K VV cinema camera
RED KOMODO-X cinema camera
RED CFexpress card reader

General Features
2TB capacity
Max read/write speed: 1785 MB/s
CFexpress 2.0 Type B
Produces a stable stream

Performance
For photos, HD videos, and raw 4K to 12K resolutions
Y2 processor designed for raw video and photo content
Adaptive Power Management helps preserve battery life and card endurance
Host power loss protection
Sticker-free design prevents media slot jams
Mean Time Between Failures of up to 2.4 million hours
Temperature sensor, TRIM, ECC, EMS protection, built-in cache, and SMART

Overheating Protection
With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.
Advanced thermal management helps protect the card, camera, and stored content.

AV Pro Line Offers Quality and Performance
The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high-definition, lossless (drop-fee) video recording and smooth data processing.
The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections, such as shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.

Free Professional Data Recovery Service
Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.

RED DIGITAL CINEMA CFexpress Card Reader

The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.

Compatibility
RED PRO 660GB CFexpress card

RED DIGITAL CINEMA REDVOLT MICRO-V Battery (98Wh, V-Mount)

Power your KOMODO V-RAPTOR camera with the MICRO-V Battery from RED DIGITAL CINEMA. This 98Wh battery features a compact, lightweight form, up to 12A draw, and data transmission of the remaining time and select accessory information. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is compatible with select other cameras when used with a full-size V-mount adapter.

Compatibility
RED V-RAPTOR camera
Select other cameras using a full-size V-mount adapter

Lightweight, Compact Form
Ideal for handheld capture
Weighs just over 1 lb and measures less than 4" wide

In-Camera Display
Communicates with your V-RAPTOR and select accessories to offer in-camera status display

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.

This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Daylight Viewable
Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness.

Rigid Hinge
A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.

DCI-P3 Color Gamut
A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.

SmallHD Page OS
Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.

Pogo Mount
Mounts directly onto the BRAIN using the Pogo mount.

USB-C Connector
USB-C connector is used for video, data, and power.

RED DIGITAL CINEMA V-RAPTOR Tactical Top Plate with Battery Adapter Plus (V-Mount)

Use the V-RAPTOR Tactical Top Plate with Battery Adapter Plus from RED DIGITAL CINEMA to both securely mount a V-mount battery on your V-RAPTOR BRAIN and power select camera accessories. This plate provides one D-Tap and two 2-pin LEMO ports, a pogo connector, an SMBUS pass-through, an E-Fuse safety system, and multiple 1/4"-20 and 3/8"-16 accessory mounting threads. A 6-pin DC input port can be used to power your camera and accessories simultaneously.

Compatibility
RED V-RAPTOR
V-mount batteries
Note that this plate is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Battery Mount and Power Outputs
This top plate and battery plate combo enables you to securely mount a larger battery on your V-RAPTOR, providing longer running times and accessory power. Ports include a 6-pin input, a D-Tap output, and two 2-pin outputs.

Accessory Mounts
The top plate and the front cheese plate both provide a pogo connector and multiple 1/4"-20 and 3/8"-16 accessory threads.

RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions

The RED DIGITAL CINEMA V-RAPTOR Top Handle with Extensions provides a complete modular top handle solution for the V-RAPTOR, allowing for lightweight or extended wraparound style configurations. It features a dedicated start/stop button, ergonomic bocote wood inlays, and multiple 3/8"-16 and 1/4"-20 mounting points. Additionally, this includes the 1", 3", and 5" top handle extension pieces, an elbow piece and a 15mm Monitor Mount.

RED DIGITAL CINEMA V-RAPTOR Expander Blade

Mount the RED V-RAPTOR Expander Blade to your V-Raptor camera to gain video, power, and communication ports, enabling a wide choice in how you configure your camera for professional applications. The Expander Blade attaches to your camera via the camera's 9-pin EXT port and is supported by the included ARCA plate.

Once attached, the Expander plate provides a BNC connector (Genlock video), 5-pin connector for timecode, 4-pin connector for RED CTRL, and 3-pin Fischer for Run/Stop. Please note that the 3-pin Run/Stop is only for trigger, and it does not supply power.

RED DIGITAL CINEMA V-RAPTOR Quick Release Platform Pack

Designed for V-RAPTOR camera users, the RED V-RAPTOR Quick Release Platform Pack is a sturdy yet compact QR plate release system for mounting and balancing your V-Raptor on a tripod. The platform, or baseplate, features 15mm LWS rod clamps and includes two 15mm rods, allowing you to use standard lens supports and accessories such as matte boxes, follow focus units, lens motors, and more with your V-RAPTOR. The platform slides onto the included dovetail plate and has a lever lock to clamp it in place once you have found the balance point you want.

The platform has a lever lock for clamping the included Arca plate in place, as well as a spring-loaded safety catch to help prevent the Arca plate from accidentally sliding off the platform. The dovetail plate has multiple 1/4"-20 and 3/8"-16 threaded mounting holes along its length for attaching to a tripod, and the combination of the sliding platform, Arca plate, and dovetail with its multiple mounting holes allows you to balance a variety of shooting configurations. In addition to supporting your camera, the QR Platform Pack also supports optional battery adapter plates, the RED V-RAPTOR Expander Blade, and RED Side Ribs for added versatility.

• The Arca plate features two 1/4"-20 threaded mounting holes at the front of the plate, and a total of 14 x M4 threaded holes around the front and sides
• A locating pin and rubber grip pads along the top of the Arca plate help prevent your camera from twisting on the plate

RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter

Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.

RED DIGITAL CINEMA Side Ribs for V-RAPTOR

The Side Ribs for V-RAPTOR from RED DIGITAL CINEMA are designed to attach directly to the V-RAPTOR Tactical Top Plate. The two side ribs provide a multitude of accessory mounting options with various 1/4"-20 and 3/8"-16 threaded mounting points, as well as a standard rosette on each side rib. Constructed from sturdy 7075 aluminum, the side ribs collectively weigh just under 6 oz.

RED DIGITAL CINEMA Production Grips (Pair)

Use this pair of Production Grips from RED DIGITAL CINEMA to add two-handed support to your V-RAPTOR side ribs or any camera, baseplate, or cage with ARRI-standard rosette mounts. Made of durable aluminum, each handgrip features a contoured rubber grip, an extension arm, and anti-twist 1/4"-20 and 3/8"-16 accessory threads. Together, the grip and extension arm provide two rotation points for setting the grip at the most comfortable angle for your handheld shots.
