RED V-RAPTOR Quick Release Platform Pack
by RED15mm LWS Rod Clamps and 2 x 15mm Rods
Dovetail Plate for Mounting on Tripod
Spring-Loaded Safety Catch
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- RED DIGITAL CINEMA V-RAPTOR Quick Release Platform Pack
- Quick Release Platform
- Dovetail Mounting Plate (Short)
- Dovetail Mounting Plate (Long)
- Arca Plate
- 2 x 15mm Rod
RED DIGITAL CINEMA 790-0692 Overview

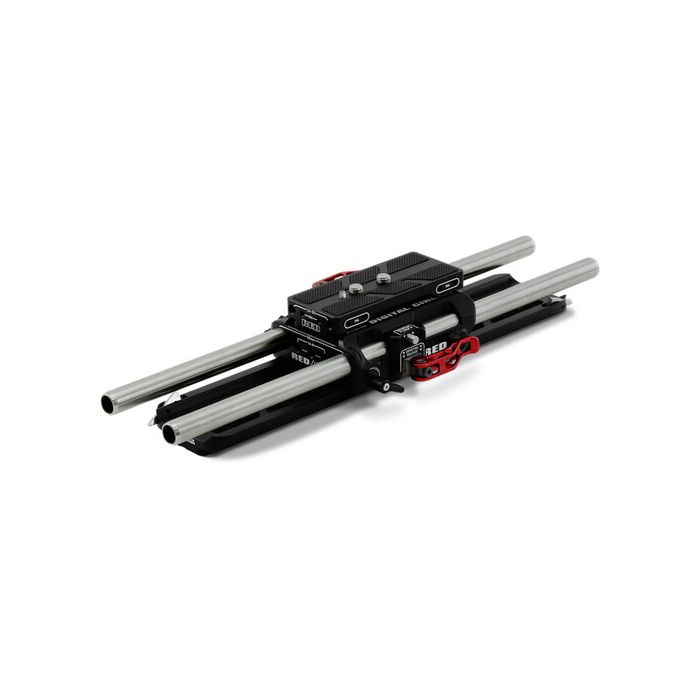

Designed for V-RAPTOR camera users, the RED V-RAPTOR Quick Release Platform Pack is a sturdy yet compact QR plate release system for mounting and balancing your V-Raptor on a tripod. The platform, or baseplate, features 15mm LWS rod clamps and includes two 15mm rods, allowing you to use standard lens supports and accessories such as matte boxes, follow focus units, lens motors, and more with your V-RAPTOR. The platform slides onto the included dovetail plate and has a lever lock to clamp it in place once you have found the balance point you want.
The platform has a lever lock for clamping the included Arca plate in place, as well as a spring-loaded safety catch to help prevent the Arca plate from accidentally sliding off the platform. The dovetail plate has multiple 1/4"-20 and 3/8"-16 threaded mounting holes along its length for attaching to a tripod, and the combination of the sliding platform, Arca plate, and dovetail with its multiple mounting holes allows you to balance a variety of shooting configurations. In addition to supporting your camera, the QR Platform Pack also supports optional battery adapter plates, the RED V-RAPTOR Expander Blade, and RED Side Ribs for added versatility.
Note:
The V-RAPTOR Quick Release Platform Pack is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
- The Arca plate features two 1/4"-20 threaded mounting holes at the front of the plate, and a total of 14 x M4 threaded holes around the front and sides
- A locating pin and rubber grip pads along the top of the Arca plate help prevent your camera from twisting on the plate
| RED DIGITAL CINEMA 790-0692 Specs | |
| Support Type | Baseplate, Rod Support System |
| Grip Type | None |
| Camera Compatibility | RED V-RAPTOR |
| Mounting | |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Included Rods | Yes |
| Battery Plate Type | None |
| Accessory Mounting | Baseplate: 2 x 1/4"-20 Thread, 14 x M4 Thread |
| Camera Mounting | Arca-Type Plate with 3/8"-16 Screw |
| Tripod Mounting | Dovetail Plate: 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports | Baseplate, Front: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | Not Specified by Manufacturer |
| General | |
| Materials | Aluminum, Steel |
| Dimensions | 4.8 x 4.6 x 2" / 121 x 117 x 51.4 mm |
| Weight | 3.5 lb / 1.6 kg |
| Packaging Info | |
| Package Weight | 2.29 kg |
| Box Dimensions (LxWxH) | 41.91 x 32 x 4.82 cm |
