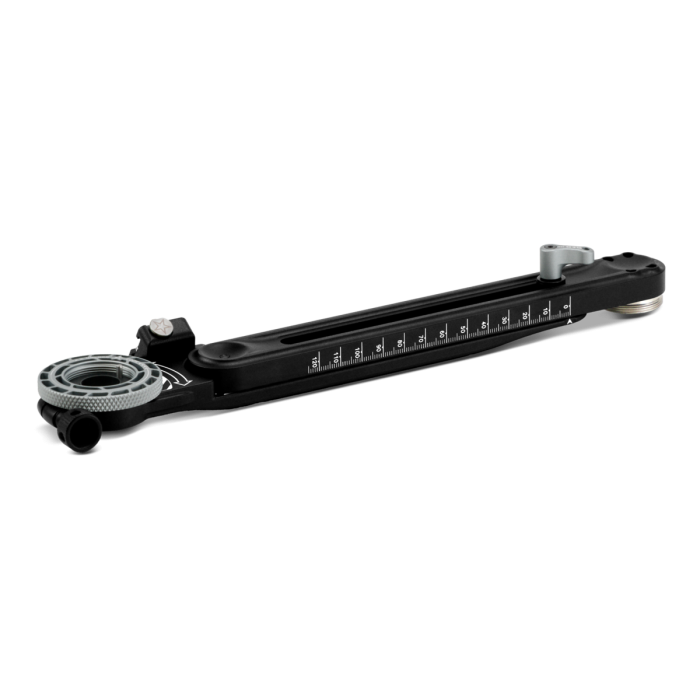

RED EVF Extension Arm

by RED
Availability: 7-10 days delivery
SKU
790-0761

The RED® EVF Mount is a lightweight 15 mm LWS rod-based EVF mounting solution.

€875.00 €700.00
New

Package includes

  • RED EVF Extension Arm

The RED® EVF Mount is a lightweight 15 mm LWS rod-based EVF mounting solution. RED designed the mount for use with the RED Compact EVF and the DSMC2® RED EVF (OLED), on DSMC3™ and DSMC2 camera systems.

The RED EVF Mount features a multi-axis telescoping design, which allows the operator to easily find the optimal position for every situation. The mount includes a quick-connect screw-on EVF clamp, laser etched distance and angle markers, machined thumb-screws for quick and easy adjustability, and support for the RED EVF Extension Arm (sold separately).

NOTES:

  • The 15 mm bracket is not included, refer to RED 15 mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
  • The RED Compact EVF and the DSMC3 Adapter A are sold separately.

CAMERA COMPATIBILITY

  • DSMC2
  • RANGER
  • KOMODO-X
  • V-RAPTOR
  • V-RAPTOR XL
DIMENSIONS Height: 2.50 in. (63.50 mm)
  Width: 1.4 in. (35.56 mm)
  Depth: 11.60 in. (294.64 mm)
WEIGHT 0.76 lbs (344.73 g)
MATERIAL Aluminum
CAMERA MOUNTING Via attachment wheel
EVF MOUNTING Via attachment wheel
ARM RANGE 10 to 15 inches (250 to 270 mm)
OPERATIONG TEMPERATURE 32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE –4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY 0% to 85%, non-condensing
STORAGE HUMIDITY 0% to 85%, non-condensing
