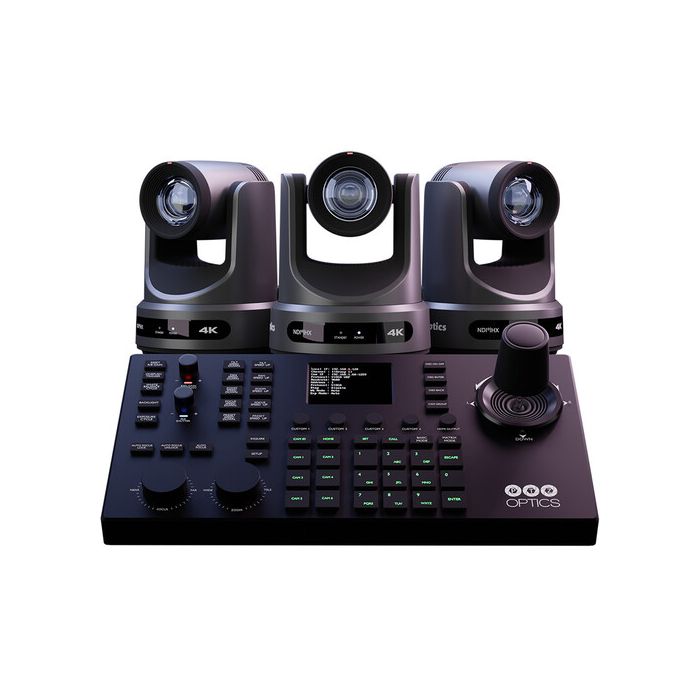

PTZOptics Producer Bundle 3x PT20X-4K-GY and 1x SuperJoy

Set up your remotely controlled multi-camera production with this Producer-4K Camera & Controller Bundle from PTZOptics. The bundle includes three gray Move 4K PTZ cameras with 20x optical zoom and the SuperJoy IP/serial camera controller.

Each Move 4K camera can capture up to UHD 4K60 video and it features 20x optical zoom, 16x digital zoom, a tally light, serial and IP control, and it can output video via HDMI, 3G-SDI, USB, NDI|HX3, or IP streaming. The SuperJoy controller remotely controls the three cameras and up to 28 total cameras using IP or serial and provides pan/tilt/zoom/lock and configuration control.

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the gray Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. The Move 4K camera captures resolutions up to UHD 4K60 via IP and HDMI, 1080p60 over 3G-SDI, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and low-bandwidth, high-quality NDI|HX 3 capabilities provide a sharp, consistent image, even in low light.

The camera's features include a 1/1.8" 4K CMOS 8.42MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.

The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream, and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE+ (Power-over-Ethernet) on a supported network.

Key Features

• UHD 4K (3840 x 2160p) video resolutions up to 60 fps
• Built-in auto-tracking capabilities
• 20x optical zoom lens with a 60.7° horizontal field of view
• High performance in low-light scenarios with Wide Dynamic Range
• 3D noise reduction with the latest low-noise CMOS sensor
• Serial (RS-232 / RS-485) and IP control (LAN/WAN)
• H.264, H.265, and MJPEG video compression when IP streaming
• USB 2.0, HDMI 2.0 / 3G-SDI, NDI|HX 3 / IP streaming (SRT, RTSP, RTMP)
• PoE+ (Power over Ethernet) or 12 VDC power supply
• Built-in tally light
• Photo booth capable

PTZOptics SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller

Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics. The SuperJoy offers joystick and button control for up to 28 PTZ cameras, in four groups of seven cameras each, with support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.

The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. An HDMI output allows you to send the camera video to a remote streaming unit, and the status information can also be included in the output. Other features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.

The SuperJoy supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).

Features

• Limited NDI|HX and Sony control
• IP, RS-232, RS-422, and RS-485 communication
• VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols
• Camera on-screen display control
• Control four groups with up to seven cameras in each group for a total of 28 cameras
• Control multiple different PTZ camera brands simultaneously, including HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek
• Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly
• 255 presets, nine quick presets, four super presets
• Exposure and white balance control
• Four customizable buttons using TCP, UDP, and HTTP control
• Program and RTSP output via HDMI
• Power-over-Ethernet (PoE) support
• Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock
• Glowing buttons for viewing in dark rooms
• Large LCD screen with controller status
• Import and export settings via LAN or USB
• Power adapter and 8' RS-232C cable are included

Compatibility

• VISCA: Serial connections include PTZ cameras with RS-232 and RS-485 from brands such as Aver, AIDA, Bird-Dog, Bolin, ClearOne, DataVideo, JVC, Lumens, Marshall Electronics, RGBLink, Sony
• Sony VISCA over IP: Includes PTZ cameras from AIDA, AVer, Bird-Dog, Bolin, BZBGear, ClearOne, JVC, Lumens, Sony
• PTZOptics VISCA:  All PTZOptics cameras
• NDI (SuperJoy only): Includes NDI PTZ cameras from AIDA, AVer, BirdDog, Bolin, BZBGear, Canon, ClearOne, DataVideo, HuddleCamHD, JVC, Lumens, Marshall Electronics, NewTek, Panasonic, RGBLink
• Pelco-P and Pelco-D: Includes PTZ cameras from Bird-Dog, DataVideo, JVC, Lumens, RGBLink, Marshall Electronics
• Panasonic (PT-JOY-G4 and SuperJoy only): Panasonic cameras
• ONVIF: The PTZOptics IP joysticks can control ONVIF cameras (ONVIF stands for Open Network Video Interface Forum, originally created by Axis and the main pan, tilt, and zoom control protocol used by security cameras)
