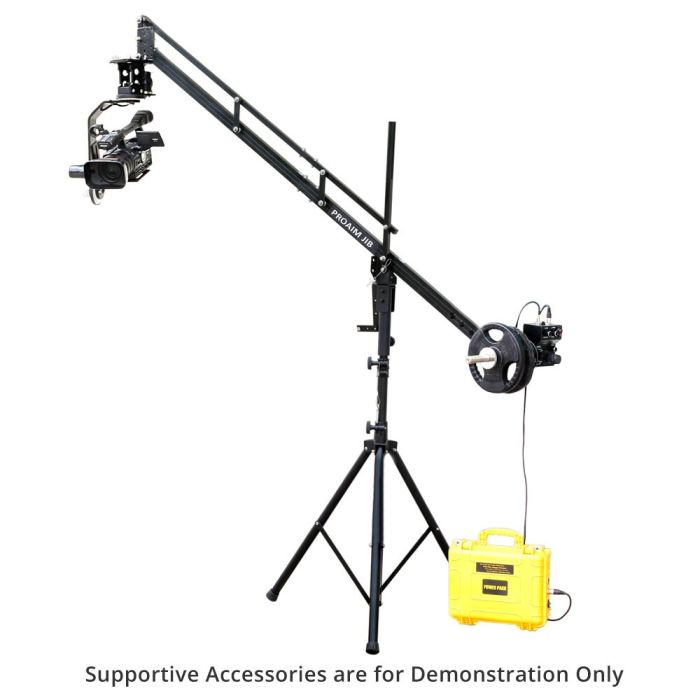

Proaim 9ft Camera Jib with Jr Pan-Tilt Head, Stand
by ProaimHI STRENGTH 9ft RECTANGULAR JIB ARM for vibration free smooth & dynamic shots. CNC MADE ALUMINIUM POWDER COATED construction makes the camera boom strong & adds quality rich feel. 2 RIBBED SECTIONS give 7 times more strength and metal wire system adds stability.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Proaim 9ft Camera Jib Arm
- Proaim Jr. Pan Tilt Head with Joystick controller
- Camera Jib Stand
- LCD Monitor Arm
- Proaim Lanc Zoom Controller (P-ZC-3DV)
- Complimentary Proaim Power Pack
- Storage Bag
To add dramatic and remarkable impact to your footages, PROAIM comes forward with its Lightweight, Versatile 9ft camera crane video production package that allows you to smoothly move your camera up and down and in indefinite number of 360 degree arcs. The aluminium constructed, ribbed section jib crane makes it surprisingly strong and robust. Unique Swivel System allows smooth slides & avoids disturbing swings during movement. Exclusively designed to fit in tight spaces or be raised up for taller ceilings, getting you amazing overhead shots. There is lot more in the crane jib package, a rugged tripod stand that acts as a supporter for your steady shots, a durable pan-tilt head to capture every creative angle, and power bank for continuous power supply.
|
Weighing Capacity |
8 kg (17.6lbs) |
|
Material Used |
CNC made Aluminum Powder Coated |
|
Jib Arm Break downs into |
2 Parts |
|
Camera Mounting Bolt |
¼”-20 and 3/8”-16 |
|
Length of Jib sections |
3. 5ft each |
|
Jib Section Jointers |
Silver Aluminium |
|
Camera Tilt Angles |
Upto 180 degree |
|
Locking Pin |
Stainless steel locking pin for stable or tilt camera angles |
|
Height Range from ground level |
8.75ft while tripod adjusted at height range of 5ft |
|
Jib Arm Shape |
Rectangle |
|
Camera Mount plate |
Rectangle( 10.5cm X 9cm ) |
|
Length from tripod to Camera Mount |
10.3ft |
|
Total Jib Arm Length |
7ft |
|
Horizontal Movement |
No |
|
Vertical Movement |
Yes |
|
Vertical Movement Lock |
No |
|
Weight Holder Rod |
Made of MS Nickel chrome, |
|
Weight Closures |
2pc. Made of MS Nickel chrome |
|
Extendable |
Upto 12ft only (One Extra section of 3ft ) |
|
LCD Mount Provision |
Yes |
|
Weight |
10 kg |
|
BALANCING CHART |
|
|
Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart : |
The jib has a varying weight ratio depending on the length you have chosen. |
|
PAN TILT HEAD - SPECIFICATIONS |
|
|
Pan Tilt Head Material |
High Grade Aluminium |
|
Maximum Camera Package Load Capacity |
5kg (Included Head |
|
Pan movement |
360 degrees |
|
Tilt movement |
360 degrees |
|
Speed |
Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed) |
|
Motors |
Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees |
|
Gears |
2- Big Aluminum Gears (Dia-88mm) |
|
Minimum height of head |
18.5 inches |
|
Maximum height of head |
22 inches |
|
AC Adapter input |
AC 100 - 240V ; output - DC 12V -2A |
|
Cable Length |
7.5 meter |
|
Cable Connector |
4-Pin XLR |
|
Battery Cable |
3 Meter long |
|
Weight of Pantilt head |
3kg |
|
Box Dimensions |
52 X 34 X 18 cm |
|
JOYSTICK CONTROLLER |
|
|
Joystick Controller |
2-Axis |
|
Connectors |
2x 4-Pin XLR male connectors |
|
Pan/Tilt Direction |
Yes |
|
Upgraded with |
Damping knob |
|
Weight |
800 grms |
