PortKeys PT5-III Monitor

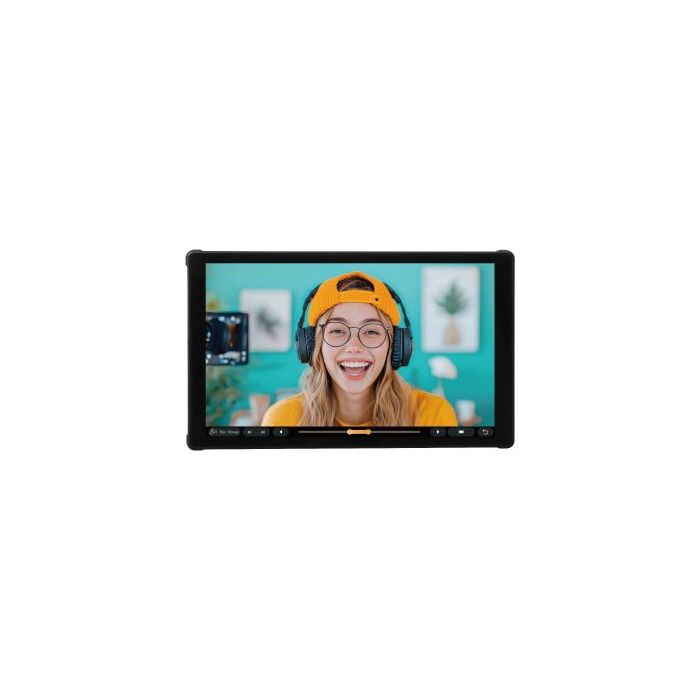

The Portkeys PT5 III is a 5.4-inch touchscreen monitor with HDMI input/output ports, powered by a single Sony NP-F battery. The PT5 III comes with Portkey’s MOVNORM OS, an easy-to-use operating system that features a full suite of professional monitoring tools. It is made out of ABS and polycarbonate that weighs only 154.5g (5.45oz) and has dimensions of only 135.1 x 82.5 x 22mm. With such compact dimensions, this featherlight monitor will be at home on top of your camera, on your camera rig, or on a gimbal.

● 5.4-inch, 8-bit panel with a resolution of 1920 x 1152 and a 1000:1 contrast ratio.
● Maximum brightness of 800nits.
● 1x HDMI input, 1x HDMI output, 1x USB 3.0 Type-C port, 1x 3.5mm audio output, 1x 3.5mm audio input.
● Maximum input resolution: 4K DCI at 30p.
● Maximum output resolution: 1080P60.
● Powered by MOVNORM OS
● Professional monitoring tools: Waveform, Histogram, Peaking, 3D LUT monitoring, 1x 3,5mm-Audioausgang.
● Built-in 360° color grader to adjust the Hue and Saturation of a select part of the image.
● Powered with a single Sony NP-F battery or USB-C power input.
● Low power draw: only 7W.
● Lightweight and rugged ABS Plastic housing: only 154.4g (5.45oz).

The Portkeys PT5 III is powered by MOVNORM OS, which is extremely easy to use and navigate. Furthermore, it comes with all the essential professional monitoring tools necessary for making accurate and assured decisions on set. On the left side of the PT5 III is one HDMI video input port that supports resolutions up to 4K DCI at 30p, along with a 3.5mm headphone jack and a 3.5mm microphone input. The HDMI output port that supports resolutions up to 1080P60 is situated on the right side of the monitor. Above the HDMI output port is one USB-C port which can be used to power the monitor externally via a power bank or V-Mount/Gold Mount battery, for example.

On the back of the Portkeys PT5 III is an integrated battery plate compatible with Sony NP-F style batteries. With a low power consumption of just 7W, a compact and lightweight Sony NP-F 550 battery can power the monitor for over two hours. For extended usage, you can connect the PT5 III to an external power source using its USB-C port. Additionally, there is a USB-A port located at the bottom of the monitor for performing firmware updates and uploading custom LUTs. The Portkeys PT5 III features two 1/4“-20 mounting points on the bottom and right sides of the monitor equipped with locating pins for attaching it to your camera, camera rig, tripod, or gimbal. Last but not least, the PT5 III ships with everything you need to shoot right out of the box, including a sunshade, a set of rubber covers, a full-size to full-size HDMI cable, a full-size to micro-HDMI cable, a Portkeys MH-2 monitor mount and a safety box.
