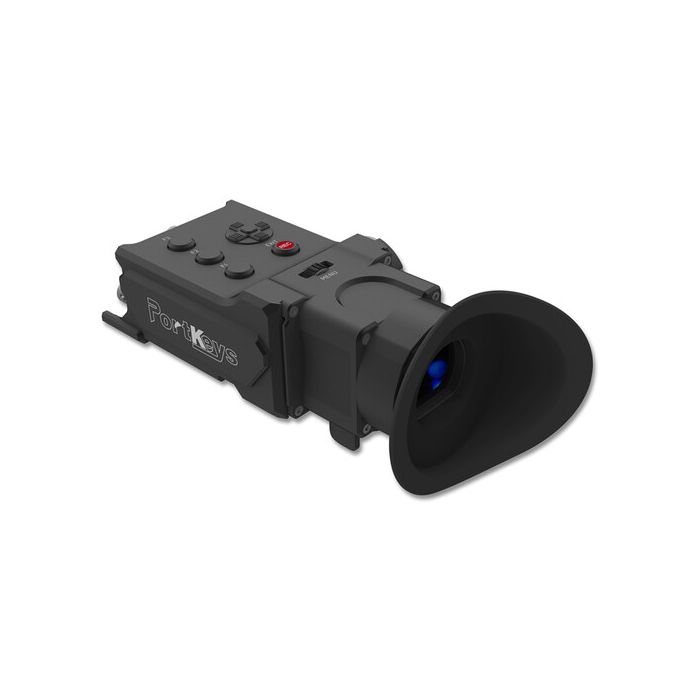

PortKeys OEYE-RED Viewfinder

by PortKeys
Availability: 14-20 days delivery
SKU
PKOEYERED
  • 1920 x 1080 Resolution Micro-OLED EVF
  • Allows RED DSMC2/KOMODO Menu Control
  • 3G-SDI and HDMI Inputs/Loop Outputs
  • Built-In +8 to -3 Adjustable Diopter
€1,662.50 €1,330.00

Package includes

  • PORTKEYS OEYE 4K 3G-SDI/HDMI EVF with RED Camera Menu Control
  • 4-Pin to D-Tap Power Cable
  • 5-Pin to 5-Pin Power Cable
  • 4-Pin to 3-Pin Control Cable
  • 9-Pin to 3-Pin Control Cable
  • SDI Cable
  • Mounting Clamp
  • Allen Wrench
  • Plastic Storage Case

If you're in need of a display that can help simplify your RED camera rig, add a high-resolution OLED EVF with RED camera menu control with this OEYE 4K 3G-SDI/HDMI EVF from PORTKEYS. The OEYE electronic viewfinder offers a bright, sharp OLED micro-display with a comfortable eyepiece to view your camera video, and it also allows you to view and control the menu navigation and overlays on your RED DSMC2 or KOMODO camera right from the EVF.

Video connectors include HDMI input and loop output that support resolutions up to DCI 4K24, and 3G-SDI input and loop output that support resolutions up to 1080p60, so you can preview your cinema video in high-resolution as well as send it to external displays. The OEYE connects to the camera control port using one of the included LEMO-type control cables, and it uses RCP (REDLINK Command Protocol) for communication.

The durable aluminum chassis is lightweight at only 14 oz, and it features mounting threads on the bottom and an ARRI-style rosette on the side that offer multiple mounting options and 360° rotation. The unit also features cooling fans that synchronize with the RED camera fan mute feature when silence is required on set.

RED Camera Menu Control Compatibility

  • RED MONSTRO 8K VV
  • RED HELIUM 8K S35
  • RED GEMINI 5K S35
  • RED DRAGON-X 6K S35
  • RED KOMODO 6K

Key EVF Features

  • 0.71", 1920 x 1080 micro-OLED EVF display with comfortable eyecup
  • 200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
  • HDMI input and output support resolutions up to DCI 4K24
  • 3G-SDI input and output support resolutions up to 1080p60
  • 5-pin LEMO-type remote control output port
  • Built-in adjustable +8 to -3 diopter
  • Fan synchronization with RED camera
  • Rosette mount on the side
  • Durable aluminum construction

Monitoring and Image Analysis Tools

  • 3D LUT
  • Audio meters
  • Pixel-to-pixel
  • Brightness
  • Contrast
  • Chroma
  • Backlight
  • Zoom
  • OSD flip
  • Grids
  • Peaking
  • False color
  • Waveform
  • Sharpness
  • Tint
  • Color temperature
  • Aspect
  • Check field
  • H/V delay
  • Guides
  • Crosshairs
  • Zebra
  • Underscan
PORTKEYS RED OEYE Specs
Display
Color/Monochrome Color
Panel Type OLED
Display Size 0.71" / 1.8 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:09
Touchscreen No
Maximum Brightness 200 cd/m2
Contrast Ratio 100,000:1
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi) 3102 ppi
Image Controls Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra
I/O
Video 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
1 x HDMI Type A Input
1 x HDMI Type A Loop Output
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
SDI (8-Bit 4:2:2 YUV)
1080p: 60/59.94/50
SDI (8-Bit 4:4:4/4:2:2 RGB, YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Camera Connection 5-Pin
Power 1 x 4-Pin LEMO Input
Optics
Diopter Correction -3.0 to +8.0
Power
DC Input Power 7 to 24 VDC
Power Consumption 10 W
General
Mounting 1 x Rosette
Material of Construction Aluminum
Dimensions 7.1 x 2.9 x 2.7" / 180 x 72.4 x 69.7 mm, Including
Weight 14.1 oz / 400 g, Including
Packaging Info
Package Weight 3.92 lb
Box Dimensions (LxWxH) 9.9 x 8.8 x 4.8"
