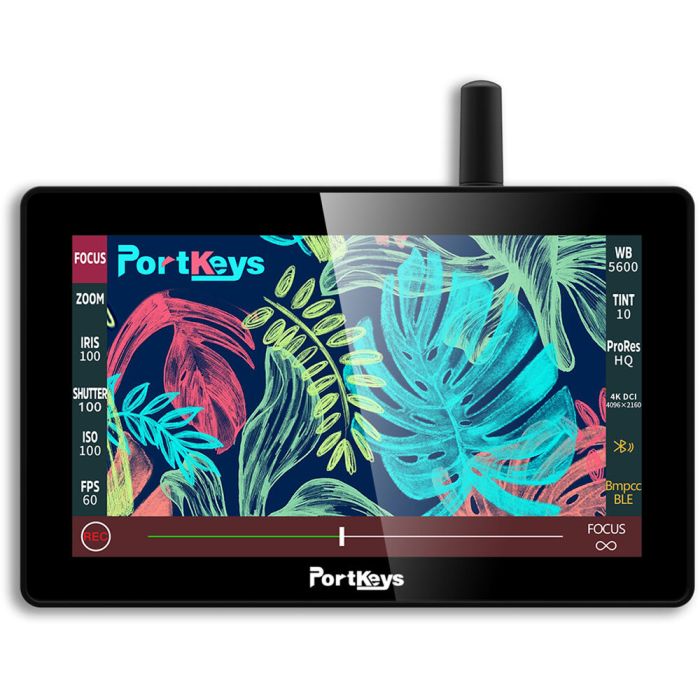

PortKeys LH5P 4K HDMI 1700NIT Monitor

by PortKeys
Availability: 14-20 days delivery

PortKeys (LH5P) 5.5inch 1700NIT Touch Screen Camera Monitor with Bluetooth Module. 5.5” Panel with 1700NIT High Brightness
With 1700nit brightness, no need to worry about direct sunlight. It will bring better shooting experience.

€474.50 €379.60

Package includes

  • 1x LH5P Monitor
  • 1x Straight to Elbow DC Power cable
  • 1x Warm prompt
  • 1x Camera Control Cable
  • 1x USB Disk
  • 1x Safety plastic box

5.5” Panel with 1700NIT High Brightness
With 1700nit brightness, no need to worry about direct sunlight. It will bring better shooting experience.

Touch Screen for Convenient Control
The newly designed touch UI enables the users to zoom in and out of the shot easily and choose the setting easy as a breeze. With native 1920x1080 resolution and 10 bit color depth, it gives you sharper and richer color image.

All Aluminium Alloy Body
The monitor is built with aluminium alloy, which is tough and corrosion-resistant, thus increasing the service life.

Built in Bluetooth Module
Supports wireless control BMPCC 4K/6K.

Strong Functions
3D LUT, Waveform, Zebra, Check Field, Grids, Audio Meters, Image Flip...

Slim and Durable Design
This monitor weighs only 250g and makes it ideal for field production. You can take it anywhere you want without much effort. It’s built with aluminium alloy, so it is extremely sturdy and wear-resistant for long-term use.

Built-In Camera Control Module
The monitor has built-in camera control module and can achieve wired/wireless camera control. For wired camera control it supports Z CAM, Canon, Sony, Panasonic, Blackmagic, etc. For wireless camera control it supports BMPCC4K/6K.

Tilta Motors Control
Tilta Nucleus N/M motor can be controlled via cable and show lens cursor position.

Multiple Power Supply Methods
LH5P monitor has multiple choice for charging. It has a battery plate on the back which supports NPF series battery, such as NPF550, F770 and F970. A 5V/2A power bank can be used to power LH5P. The monitor can also be charged by 7-24V power. If NPF battery is mounted, the USB port can output 5V/1A DC power.

Firmware update
LH5P is designed with Type A USB port which can be used to load LUT and update firmware so that our customer can enjoy the best user experience.

Basic Parameters
Screen Size 5.5"
Dimension 144x114.8x28mm
Viewing Angle 178°H/178°V
Brightness 1700nit
Resolution 1920x1080
Contrast Ratio 1000:01:00
Weight 250g
Colour Depth 10bit(8+2FRC)
Backlight WLED
Material Aluminium Alloy
+Tempered Glass
Input Voltage DC 7 -24V
Maximum Power 10W
Fan Yes
Software Function
Camera Control
New Peaking
Cross Hair
Luma Waveform
Display Flip
RGB Waveform
Osd Flip
Luma Waveform
Check Field
Audio Meters
Battery Voltage Charger
Black Level Switch
Colour Temperature
Colour calibration switch
Custom RGB
Video Input/Output Input Interface: 4K HDMI
Output Interface: 4K HDMI
Support Battery Model SONY NP-F970/F960/F750/F550
5pin Aviation Power Input/Output LH5P can be powered by DC 7-24
power supply or battery ; NPF 7.4 V battery(Mount on the back
of the LH5P ) could output 7.4V voltage power to
other equipment
USB-A Firmware update / 3D LUT / Support power
supply of 5V2A power bank /Output 5V1A
voltage to power other equipment when using
Audio Output 3.5mm Headphone Jack
HDMI Signal
