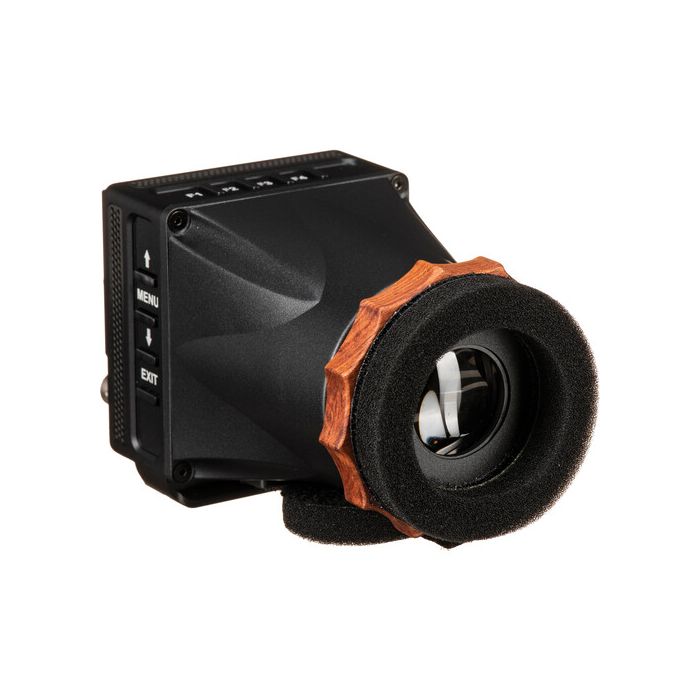

PortKeys LEYE SDI 2.4" LCD Viewfinder
by PortKeysThe Portkeys LEYE SDI electronic viewfinder offers a crisp viewing option for mirrorless cameras, Z CAM, BMPCC, Canon C70 or other camera lacking an integrated viewfinder.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- PortKeys LEYE SDI 2.4" LCD Viewfinder
The Portkeys LEYE SDI electronic viewfinder offers a crisp viewing option for mirrorless cameras, Z CAM, BMPCC, Canon C70 or other camera lacking an integrated viewfinder.
This viewfinder has an HDMI input that supports up to UHD 4K30 video and an SDI input supporting up to 1080p60 video.
LEYE EVF features include selectable and user-defined LUT support via USB, 3G-SDI input interface，4-pin aviation connector power input, the D-Tap power cable provided, and a battery slot at the back. Image display tools include peaking, zebra, waveform, histogram, and vectorscope functions. The LEYE SDI EVF’s diopter adjusts from -8 to + 4, offering a wide range of eyesight correction that minimizes the need to wear glasses while operating your camera.
| LCD Resolution | 1440 x 900 |
| Size | 2.4″ |
| FOV | 178º |
| Diopter range | +8 to -3 |
| HDMI | Input video resolution up to UHD 30fps |
| SDI | Input video resolution up to 1080p60 |
| USB (Type A) | Load user-defined LUTs |
| Mounting Option | Metric Rosette with 1/4″-20 screw thread |
| Input color depth | 8-bit |
| Exposure tools | Zebra, False color, Waveform, Histogram, Vectorscope, Grids |
| Other tools | Focus peaking, magnifier, tint, scaling, underscan, grids, and more |
| Built-in LUTs | Selectable LUTs & user-defined LUTs |
| Power Input | 4-pin aviation connector |
| Power Consumption | 6W (maximum) |
| LxWxH | 125 x 70 x 78mm (approximately) |
| Net weight | 265 gram (approximately) |
