PortKeys L-EYE Viewfinder
by PortKeys- Camera EVF with 1440 x 900 Resolution
- Supports up to DCI 4K Input via HDMI
- 2.4" LCD Display, 8-Bit Color
- 300 cd/m² Brightness, 1100:1 Contrast
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- PORTKEYS LEYE 4K HDMI 2.4" LCD Electronic Viewfinder
- DC Barrel to D-Tap Power Cable
- Sponge Eye Cover
- HDMI Right-Angle Adapter
- USB Flash Drive
- Carry Bag

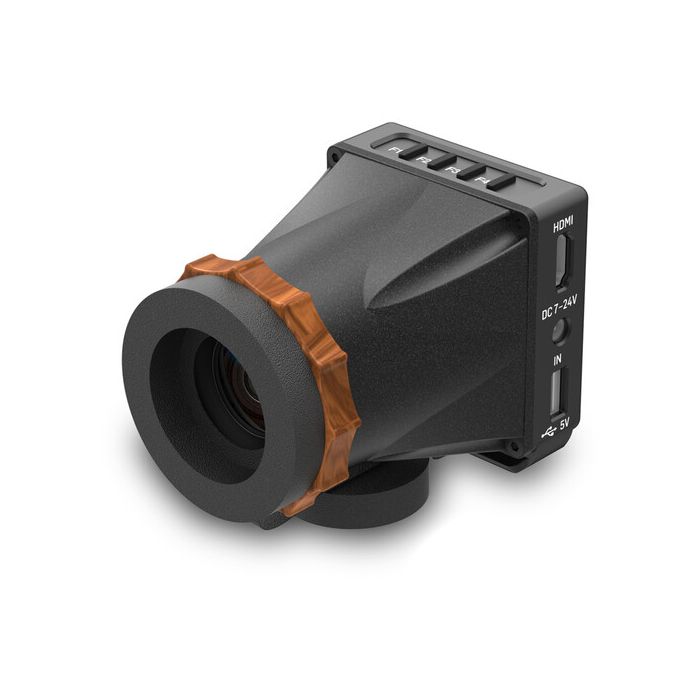

Output and view up to DCI 4K video from your camera with this compact LEYE 4K HDMI 2.4" LCD Electronic Viewfinder from PORTKEYS. The LEYE is designed with a compact form and has one HDMI input that supports up to 4K30 video input.
The EVF features a 2.4" LCD screen with 1440 x 900 resolution, a 300 cd/m² brightness, and a 1100:1 contrast ratio so you can view your images clearly in bright conditions. It features -3 to +8 diopter adjustment, and the software offers numerous functions such as waveform, histogram, scaling, flip, guides, zoom, and many more. The EVF also supports 3D LUT imports via its USB Type-A port.
Its rugged enclosure is made of durable metal, and you can mount it onto a variety of rigs using its ARRI-style anti-twist mount, a NATO accessory rail, or a 1/4"-20 thread. The EVF comes with a DC jack to D-Tap cable for powering the EVF using a separately available battery. Also included are an HDMI right-angle adapter, a USB flash drive for updating firmware, and a soft, flat eye sponge for the viewfinder so you can view the image while wearing glasses.
- EVF with 1440 x 900 LCD screen; supports up to DCI 4K30 video input
- One HDMI input
- Soft eye sponge to allow viewing with glasses
- 2.4" screen size, 300 cd/m² brightness, 1100:1 contrast ratio, and 8-bit color depth
- 3D LUT import via USB Type-A port
- Numerous software functions such as false color, histogram, tint, scaling, zebra, underscan, grids, and more
- -3 to +8 diopter adjustment
- ARRI-style accessory mount, 1/4"-20 thread, and NATO rail mounting
- Constructed from durable metal to withstand rough environments
- D-Tap to DC jack power cable included
PORTKEYS LEYE Specs | |
Display
|
|
Color/Monochrome | Color |
Panel Type | LCD |
Display Size | 2.4" / 6.1 cm |
Screen Resolution | 1440 x 900 |
Aspect Ratio | 16:09 |
Touchscreen | No |
Maximum Brightness | 300 cd/m2 |
Contrast Ratio | 1100:01:00 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Pixels Per Inch (ppi) | 707 ppi |
Image Controls | Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan, Waveform |
I/O
|
|
Video | 1 x HDMI Type A (HDMI 1.4) Input |
Video Format | HDMI (8-Bit) |
DCI 4K: 30 | |
UHD 4K | |
1080p | |
1080i | |
576p | |
576i | |
480p | |
480i | |
Power | 1 x Barrel (24 VDC) Input |
Other I/O | 1 x USB 2.0 (USB Type-A) Input |
Optics
|
|
Diopter Correction | -3.0 to +8.0 |
Power
|
|
DC Input Power | 7 to 24 VDC |
Power Consumption | 3 W |
General
|
|
Mounting | 1 x 1/4"-20 Female |
1 x Accessory Rail | |
3/8"-16 Female | |
Material of Construction | Aluminum |
Dimensions | 4.2 x 3.1 x 2.8" / 10.6 x 7.8 x 7 cm, Including |
Weight | 14.11 oz / 400 g, Including |
Packaging Info
|
|
Package Weight | 0.8 lb |
Box Dimensions (LxWxH) | 6.2 x 4.5 x 4" |
