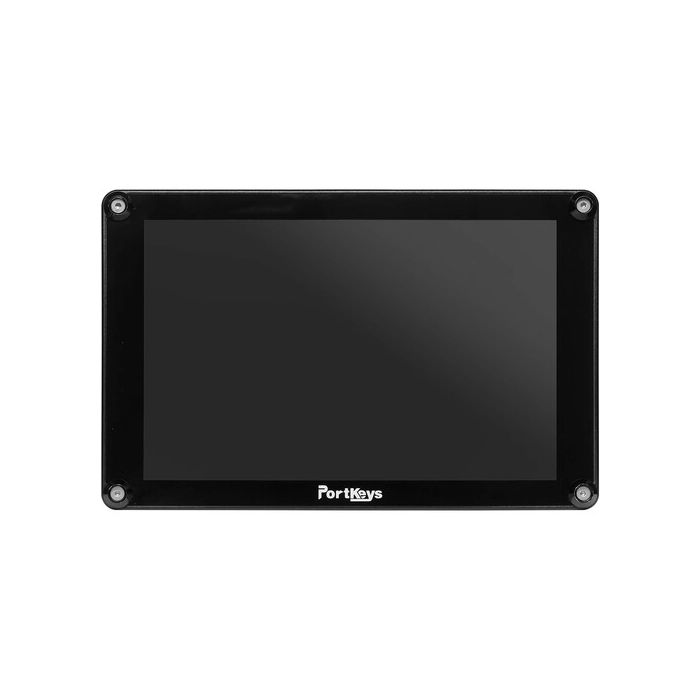

Portkeys HS8 Monitor
by PortKeysView your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
- D-Tap to DC Barrel Power Cable
- Screen Cleaning Cloth
- M2 Allen Key
- 4 x M3 Allen Screw
- 4 x Cup Head Gasket
- Micro-USB Flash Drive
View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit color, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.
HDMI and 3G-SDI Input/Output
4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs
3D LUT Support
3D LUTs for color grading and monitoring can be applied to both the HDMI and SDI outputs
Hi-Bright Monitor
8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio
Durable Housing
- Rugged, heat-dissipating CNC-machined aluminum alloy housing
- Top and bottom 1/4"-20 thread mounts
Hot-Swappable Battery Plates
- Hot-swappable, dual Sony L-series-type battery plates
- DC input port for power supply
Optional Wireless Video Transmitter
Comes with a detachable cover for the wireless video transmitter mount
| Display | |
| Display Size | 8.0" / 20.3 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness | 1100 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| HDR Support | Yes |
| Pixels Per Inch (ppi) | 283 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs / Outputs | |
| Video I/O | 1x BNC (3G-SDI) Input |
| 1x HDMI (Unspecified Signal) Input | |
| 1x BNC (3G-SDI) Output | |
| 1x HDMI (Unspecified Signal) Output | |
| HDCP Support | Not Specified by Manufacturer |
| Embedded Audio | HDMI |
| SDI | |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Power I/O | 1x Barrel (20 VDC) Input |
| Other I/O | 1x USB-A (LUT Upload) |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SDI (4:2:2 YUV) | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| SDI (4:4:4/4:2:2/4:2:0 RGB, YUV) | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| SDI (4:4:4/4:2:2) | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Video Signal Conversion | HDMI to SDI |
| SDI to HDMI | |
| Power | |
| Input Power | 7 to 20 VDC |
| Battery Type | 2x L-Series |
| Power Consumption | 20 W (Maximum) |
| Mounting | |
| Mounting-Hole Pattern | 100 x 100 mm |
| Mounting | 2x 1/4"-20 Female |
| General | |
| Material of Construction | Aluminum |
| Dimensions | 81.9 x 52.6 x 19.9" / 208 x 133.7 x 50.5 cm |
| Weight | 23.8 oz / 675 g |
