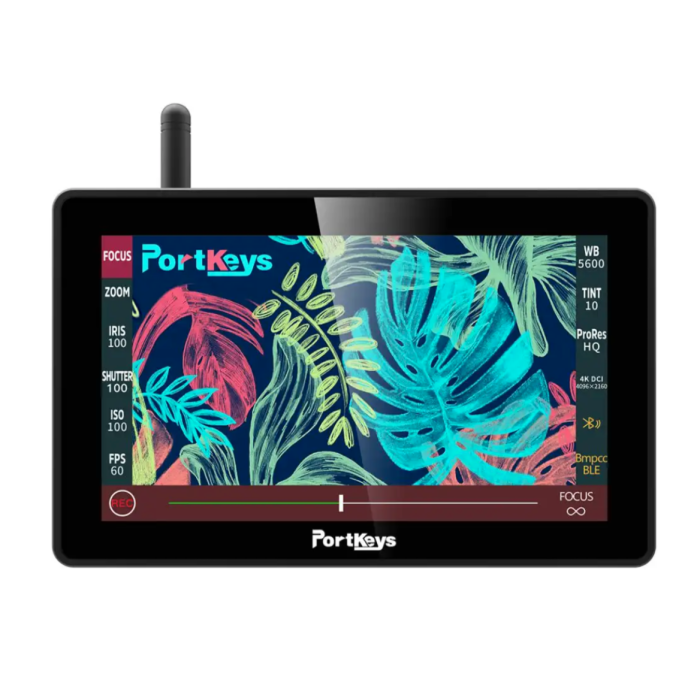

PortKeys BM5 III WR with Wireless control (RED KOMODO / BMPCC)
by PortKeysThe Portkeys BM5 WR is a 5.5″, 2200 nit, SDI, and HDMI on-camera monitor that can wirelessly connect to the RED KOMODO.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- BM5WR Monitor * 1
- Power Cord 100cm(Aviation Port D-TAP) * 1
- Power Cord 40cm(Aviation Port DC) * 1
- L-Type Antenna * 2
- LANC Control Cable 40cm * 1
- TYPE-C Control Cable 40cm * 1
- Warm Prompt Card * 1
- Safety Box * 1
- USB (Manual, 3D LUTs, Firmware Inside) * 1
The BM5 WR is based on PortKeys existing BM5 monitor. So essentially it the exact same monitor but it gets the addition of camera control.
RED KOMODO Camera Control
Portkeys BM5 WR comes with a wireless control module specially designed to connect with RED Komodo wirelessly. You don’t need any cables for the monitor to be able to communicate with the camera.
The Portkeys BM5 WR enables users to start/stop the recording or adjust shutter speed, white balance, ISO, etc. directly from the monitor.

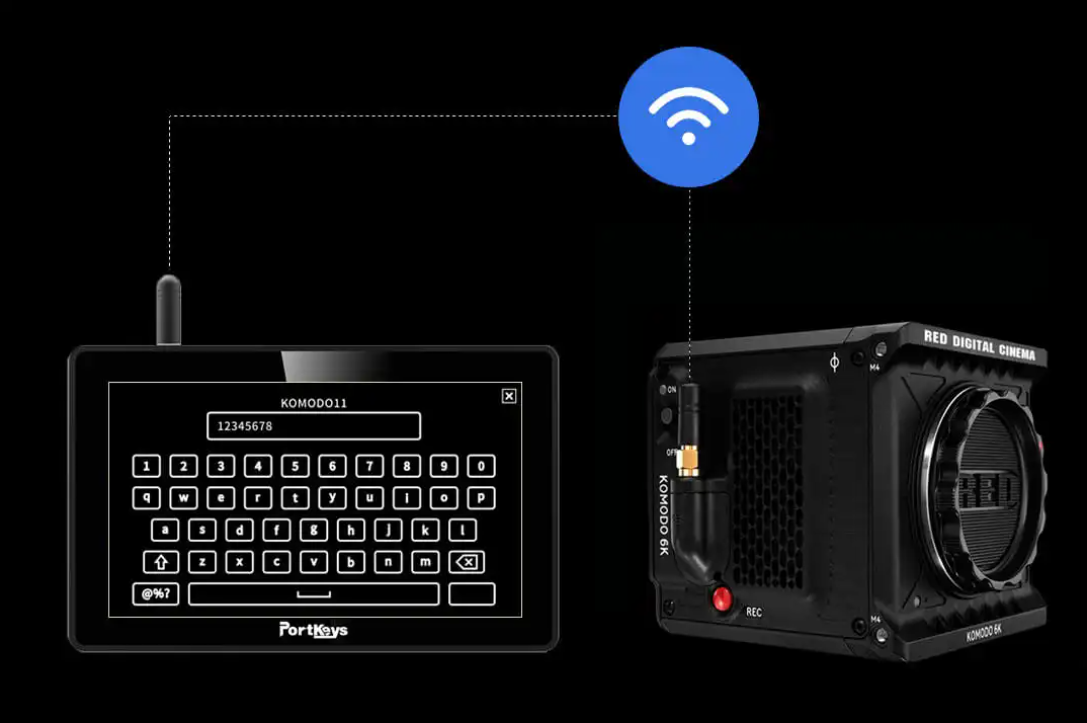

How to Connect BM5 WR with RED KOMODO via Wi-Fi Connection
For wireless control with the RED KOMODO, you first have to enable the Wi-Fi. To do that, on the KOMODO, go to the Main menu > Communication, access to Wi-Fi settings. Select Mode, enable Ad-Hoc.
- Ad-Hoc: KOMODO will create its own network, and the name and password will default to the PIN code of the camera.
- Make sure the SSID setting starts with “KOMODO” or “komodo” and the frequency band is “2.4GHz“.
On the monitor, swipe down from the top of the screen to access the “Camera Control” settings.
On the “Camera Control” panel, select Wi-Fi/USB camera mode. Click the “Camera” icon to enable the Wi-Fi (ON/OFF) switch.
Turn on the Wi-Fi button, then select “Add a new device“, select the Wi-Fi name on the monitor
Select the Wi-Fi name of KOMODO
Enter the password, and click the “Connect” button. After a successful connection, the Wi-Fi icon will display the wireless status of the camera.
Enter the PIN of Komodo camera
Once you have done all of this you can use the monitor to control any function of the Komodo via the touchscreen in real-time.
Canon C70 Camera Control
Camera Control is also available with the Canon C70. You need to use a specific USB cable to allow the monitor to communicate with the camera. According to Portkeys, the cable comes with the monitor.

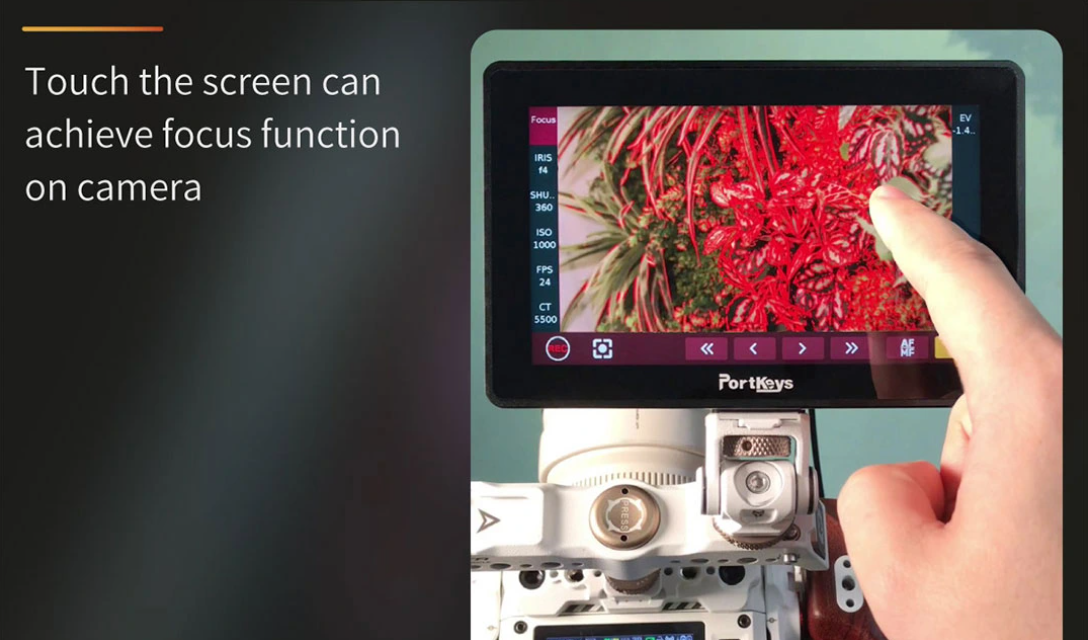

Touch screen control focus for the RED KOMODO, Panasonic BGH1, Z Cam E2
BM5 WR touch screen control focus of KOMODO
When you touch the screen, it will communicate with the camera and lens and then focus on that point. Now, just how well this works will depend on the camera and lens combination you are using.
Design & Weight
The monitor features an aluminum alloy shell design, which is claimed to be durable and lightweight. The BM5 WR weighs in at 376g / 13.3 oz).

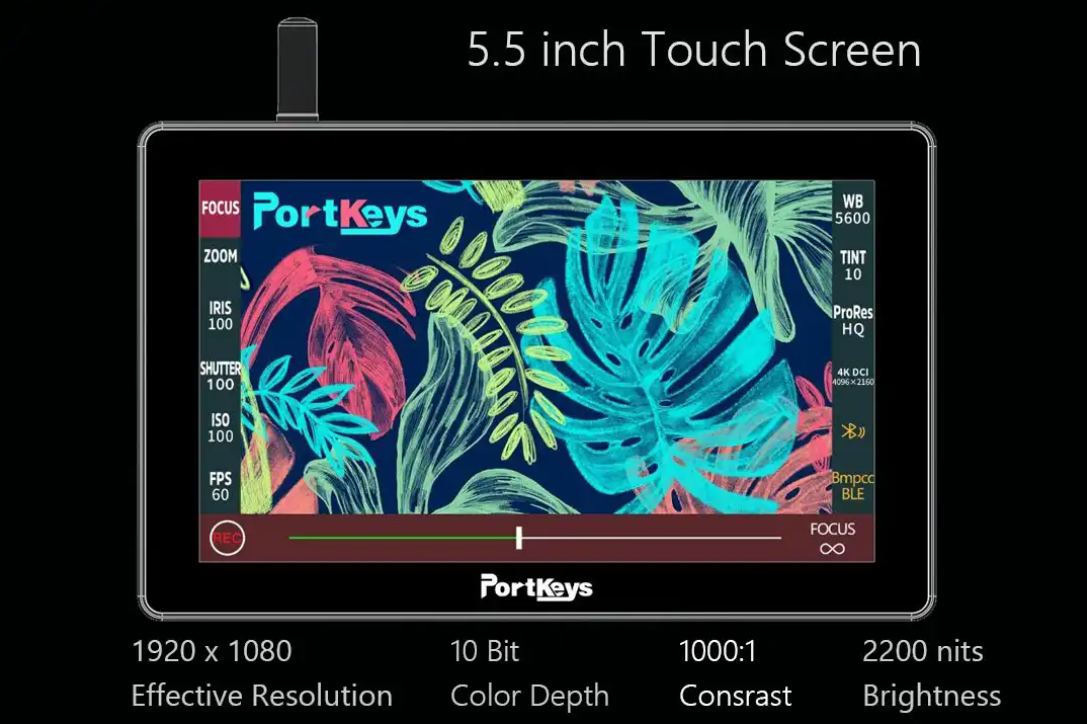

Screen
The Portkeys BM5 WR features a claimed 2200nit ultra-high brightness 5.5-inch display. It has a resolution of 1920 x 1080 and a claimed contrast ratio of 1000:1.
HDMI/SDI Loop Out
The monitor features an SDI input and output, as well as an HDMI input. The SDI out can output an image with a 3DLUT applied.
Other features
The monitor has an ARRI false color mode and what Portkeys is claiming to be a new optimized peaking algorithm.
Above you can see all the monitoring tools that the BM5 WR has.
Supported Cameras
The monitor supports quite a few cameras. Above and below you can see what features are supported and all of the cameras.
- Support Wi-Fi control RED Komodo.
- Bluetooth control BMPCC 4K, 6K, 6K Pro.
- Wired control of Sony, Canon, Panasonic, BMD, and ZCam E2.
- It also supports motor control of the Tilta Nucleus N/M.
- It allows you to control the focus of Komodo, BGH1, E2 via the touch screen.
Blackmagic:
BMPCC4K, BMPCC6K, URSA MINI 4K, URSA MINI 4.6K, URSA MINI PRO 4.6K G2, URSA BROADCAST, CINEMA CAMERA 2.7K, CINEMA CAMERA 4K, MICRO STUDIO CAMERA 4K (LANC control cable)
Canon:
5D MARK III, 5D MARK II, 6D, 6D MARK II, 80D (MINI USB control cable)
1DX, 1DX MARK II, 5DS, 5DS R, 5D MARK IV (MICRO USB control cable)
R5, R6, C70, EOS R [TYPE-C/USB-C control cable]
C700 PL, C700 GSPL, C300 MARK 2, C300 MARK 2 PL, C200, C200B, C100, C100 MARK 2 (LANC control cable)
Panasonic:
GH5, GH5S, S1, S1H, S1R, S5, G9, BGH1
RED Komodo
REC key
Sony:
A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02 (MULTI control cable)
FS5, FS7, FX6, FX9 (LANC control cable)
A7S III [TYPE-C/USB-C control cable]
Z CAM:
E2, E2 S6, E2 F6 (LANC control cable)
Full Specifications | |
Screen Size | 5.5″ |
Dimension | 145.4*120.9*45.5mm |
Viewing Angle | 178°H/178°V |
Brightness | 2200nit |
Resolution | 1920*1080 |
Contrast Ratio | 1000:01:00 |
Weight | 376g |
Color Depth | 10bit(8+2 FRC) |
Maximum Power | 13W |
Material | Aluminum alloy + Tempered glass |
Input Voltage | 4pin Aviation Connector IN 7.4-24V |
Output Voltage | 4pin Aviation Connector OUT 7.4V(NPF) |
Video Signal Input | SDI/HDMI |
Video Signal Output | SDI |
Motor Control Port | 5pin Aviation Connector |
Camera Control Port | Mini USB 10pin |
USB-A | Upgrade Firmware/Load LUT |
Antenna | 2.4G |
HDMI Signal | |
1920*1080p@23.97Hz,24Hz,25Hz, | |
29.97Hz,30Hz,50Hz,59.94Hz,60Hz | |
1920*1080psf@23.97Hz,24Hz, | |
25Hz,29.97Hz,30Hz | |
1920*1080i@50Hz,59.94Hz,60Hz | |
1280*720p@50Hz,59.94Hz,60Hz | |
720*576i@50Hz | |
720*576p@50Hz | |
720*480p@59.94Hz,60Hz | |
720*480i@59.94Hz,60Hz | |
SDI Signal | |
1920*1080p@50fps,59.94fps,60fps | |
1920*1080p@50Hz,59.94Hz,60Hz | |
1920*1080p@23.98Hz,24Hz,25Hz,29.94Hz,30Hz YUV444/YUV422/RGB444 | |
1920*1080i@50Hz,59.94Hz,60Hz | |
YUV444/YUV422/RGB444 | |
1280*720p@50Hz,59.94Hz,60Hz | |
YUV444/YUv422/RGB444 |
