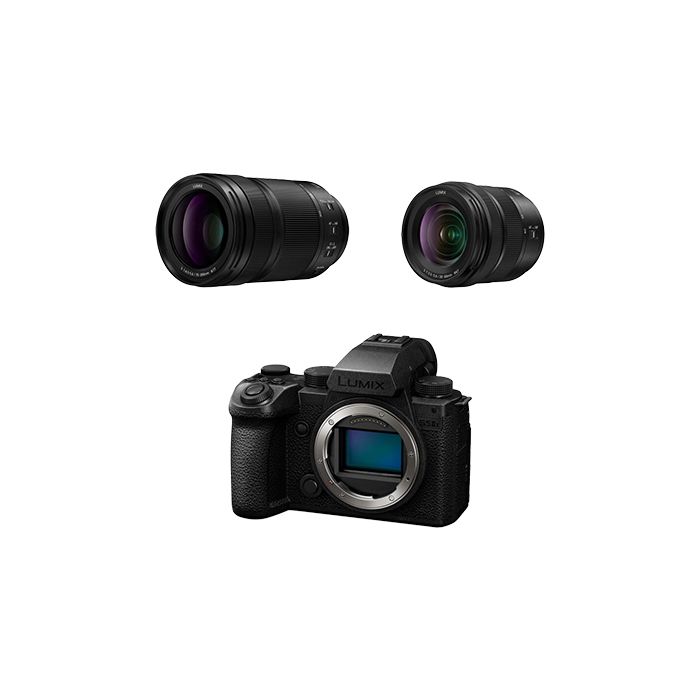

Panasonic S5 II X with 20-60mm Lens + 70-300mm f4.5-5.6 Macro OIS L-Mount

by Panasonic
Availability: 7-10 days delivery
SKU
BUN-DC-S5M2XKE
Panasonic S5 II X with 20-60mm Lens + 70-300mm f4.5-5.6 Macro OIS L-Mount.
€3,598.00 €2,878.40

Package includes

Panasonic S5 II X with 20-60mm Lens

  • Panasonic Lumix S5 IIX Mirrorless Camera
  • Panasonic DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
  • Shoulder Strap
  • Body Cap
  • Hot Shoe Cover
  • Battery Grip Connector Cover
  • Panasonic Lumix S 20-60mm f/3.5-5.6 Lens
  • Front and Rear Lens Caps
  • Lens Hood

Panasonic Lumix S 70-300mm f4.5-5.6 Macro OIS L-Mount

  • Panasonic Lumix S 70-300mm f/4.5-5.6 MACRO O.I.S. Lens
  • Lens Hood
  • Front Cap
  • Rear Cap

Designed for pro content creators needing strong stills, sophisticated video options, and livestreaming functionality, the second-generation Panasonic Lumix S5 IIX Mirrorless Camera is equipped with a host of new features to bring your vision to life. Benefitting from a new sensor design and an updated processing engine with L2 technology, the S5 IIX is the first Lumix camera to offer Phase Hybrid AF for fast and precise autofocusing performance. Making full use of the 24.2MP sensor and enhanced processor, this camera records 6K video for up to 30 minutes, while unlimited 4K video capture is available as well. Optimized for video, the S5 IIX is also equipped with a new Active I.S. system, which supports walking shots to further enhance image stabilization while recording video.

Unique to the advanced S5 IIX, this model comes pre-loaded with sophisticated video features benefitting the professional user. These include HDMI RAW video data output, USB-SSD recording, ALL-Intra recording, and ProRes recording. Livestreaming functionality is standard as well, and the S5 IIX offers Wireless IP streaming, USB tethering to smartphones, and Wired IP streaming. Additionally, this camera is the first Lumix camera to feature a refined and stealthy all-black design.

New Sensor and Processing Engine

Featuring an upgraded full-frame 24.2MP CMOS sensor and an updated image processing engine with L2 technology, the S5 IIX's sensor incorporates a newly-developed Phase Hybrid AF system — a first for Lumix-series cameras — providing 779 phase-detection points for significantly-improved subject tracking. Balancing high sensitivity and a wide dynamic range, the sensor provides a useful ISO 100-51200 range, which can be expanded to ISO 50-204800 for working in a variety of lighting conditions. Well-equipped for action and fast-moving subjects, the S5 IIX also enables full-res shooting at up to 9 fps with the mechanical shutter and up to 30 fps with the electronic shutter. Additionally, the S5 IIX utilizes sensor-shift stabilization technology and features a High Resolution mode to capture and compile eight separate exposures to create a single 96MP raw or JPEG file. Suitable for static subjects and when working on a tripod, this mode creates a more highly detailed and color accurate image than a single shot alone can produce and produces an image with a 12000 x 8000-pixel resolution.

6K and 4K Video Recording

In addition to stills, the S5 IIX sports highly capable video recording assets. Full-frame 6K30p recording with 4:2:0 10-bit color can be captured for up to 30 minutes, while unlimited video recording is possible when filming in DCI and UHD 4K60p 4:2:2 10-bit mode. The camera supports 120p video capture for videographers who want to create high-resolution slow-motion video, and RAW HDMI output is possible via an optional license upgrade. V-Log has been pre-installed on this camera and is used to capture a flat, neutral gamma curve and an equivalent 14+ stops of dynamic range provides precise control of color data in post-production, as well as seamless editing with footage shot with VariCam cameras.
Borrowing from Panasonic's broadcast line of video cameras, Dual Native ISO helps to achieve a balanced combination of low noise and high sensitivity to better suit working in a variety of lighting conditions. Two dedicated circuits are provided for each pixel: a Low ISO circuit provides base sensitivities of ISO 100 for normal use, ISO 640 when V-Log is applied, ISO 400 when HLG is applied, and ISO 200 when Cinelike D2/V2 is applied; a Low Noise circuit provides base sensitivities of ISO 640 for normal use, ISO 4000 when V-Log is applied, ISO 2500 when HLG is applied, and ISO 1250 when Cinelike D2/V2 is applied.

Pro-Level Video Features

Offering enhanced performance and usability, the S5 IIX provides HDMI RAW video data output.
For videographers who want to improve efficiency in data backup and post-processing, recording and playback is supported using an external SSD via USB. ALL-Intra recording and ProRes recording are also supported.
Designed for modern-users and content creators, the camera allows for Wireless IP streaming, USB tethering to smartphones, and Wired IP streaming.

Phase Hybrid AF System

The S5 IIX is the first Lumix mirrorless camera to adopt a Phase Hybrid AF system, which offers 779 phase-detection points to provide fast and precise focusing for outstanding AF accuracy. When it comes to autofocus, dependability is the most important thing, and with Phase Detection AF you can fully supplement and track the subject in six different situations that until now had been a challenge for conventional systems to capture. Whether shooting stills or video, this means the S5 IIX persistently captures the intended subject in difficult scenes involving multiple people in backlit or low-light environments.

Dual I.S. 2 with Active I.S.

Offering comprehensive support for hand-held use, the S5 IIX incorporates a Dual I.S. 2 image stabilization system, which compensates for approximately 6.5 stops of camera shake to achieve the utmost sharpness for handheld photography. For video applications, the camera is designed with a newly-developed Active I.S. system for walking shots to further enhance image stabilization while the camera is moving and recording video.

Body Design

Used in conjunction with other members of the L-Mount Alliance, the L lens mount is a versatile interface with a mount diameter of 51.6mm and a flange distance of 20mm for working with a broad range of optics. Additionally, this camera allows for the use of all the classic and modern Anamorphic lenses that have been in use for over 60 years.
A high-resolution 3.68m-dot OLED EVF offers a clear 0.78x magnification along with a smooth 60 fps or 120 fps changeable refresh rate.
Large 3.0" 1.84m-dot LCD is a bright, clear means for live view shooting as well as playback and menu navigation. The screen features a free-angle design to suit working from high, low, and front-facing angles, and its touchscreen design affords intuitive settings control.
An 8-direction joystick and easy-to-use menu design enable quick and efficient operation.
A USB-C port allows for fast file transferring as well as high-speed in-camera battery charging. Additionally, a new full-size HDMI-A port benefits video applications, a 2.5mm port can be used with the optional DMW-RS2 Remote Shutter, and 3.5mm microphone and headphone jacks suit advanced audio recording needs.
Dual SD memory card slots — both UHS-II-compatible — offer improved flexibility for image storage, allowing you to segregate raw and JPEG files to different cards, save duplicate files to both cards, or simply double your storage space with overflow recording.
An industry-first, the S5 II utilizes a built-in cooling fan to suppress the camera's internal temperature for extended or unlimited recording.
A robustly-built magnesium alloy body with dust and splash-resistant design accommodates working in harsh weather conditions and trying environments.
First Lumix camera to feature a refined and stealthy all-black design.

Bluetooth and Wi-Fi

Bluetooth Low Energy (5.0) provides constant connection between your smartphone or tablet with minimal power consumption. For more robust wireless activities, IEEE 802.11b/g/n and 802.11a/n/ac support is also available for faster transmission and more fluid remote control and monitoring. Complementing the camera's wireless connectivity, Lumix Sync is an iOS and Android app designed to pair with the camera for smartphone or tablet-based remote shooting control, wireless image transfer, and updating firmware.

Other Camera Features

Real-time LUT enables color grading to be done in the camera itself
Live cropping allows in-frame panning and zooming while recording video
In addition to conventional 3:2, 4:3, 1:1, and 16:9 ratios, photos can also be recorded in 65:24 and 2:1 panoramic formats
Color Shading Compensation corrects the bluish/reddish coloration on the periphery that may occur when older lenses are mounted
Compatible with Lumix Tether for remote photo and video shooting via USB
4-channel 48 kHz or 96 kHz 24-bit recording with optional DMW-XLR1 XLR microphone adapter
In-camera USB PD battery charging with optional DMW-BTC15 Battery Charger

Panasonic Lumix S 20-60mm f/3.5-5.6

A unique zoom covering ultra-wide to short portrait-length fields of view, the Panasonic Lumix S 20-60mm f/3.5-5.6 is a sleek and versatile lens designed for full-frame L-mount mirrorless cameras. The distinct range of focal lengths is also complemented by flexible focusing capabilities, which permit working with subjects as close as 5.9" with a 0.43x magnification for near-macro performance. In terms of optics, the lens incorporates a series of aspherical, high refractive index, and low dispersion elements to control a variety of aberrations and realize a high degree of clarity and sharpness. A fluorine coating has been applied to the front element to reduce smudging and make it easier to clean and then lens also features a weather-sealed design for working in harsh environmental conditions. Additionally, suiting both photo and video applications, a stepping motor is featured, which affords fast, precise, and near-silent autofocus performance.

Wide-to-short telephoto zoom is designed for full-frame L-mount mirrorless cameras, however can also be used with APS-C models where it provides a 30-90mm equivalent focal length range.
Two aspherical elements and one ultra high refractive index (UHR) element, help to minimize distortions and spherical aberrations throughout the zoom range in order to maintain edge-to-edge sharpness and illumination.
Three extra-low dispersion elements greatly reduce chromatic aberrations and color fringing in order to produce a high degree of clarity and color accuracy.
Stepping AF motor delivers quick and quiet focusing performance that benefits both photo and video applications.
Maximum magnification of 0.43x and a minimum focusing distance of 5.9" benefits working with close-up subjects.
AF/MF switch permits quick changing between focusing modes.
Splash, dust, and freezeproof design benefits working in inclement weather conditions down to 14°F.
Fluorine coating has been applied to the front element to prevent dirt and oils from sticking to lens.
Rounded nine-blade diaphragm contributes to a pleasing bokeh quality.

Panasonic Lumix S 70-300mm f4.5-5.6 Macro OIS L-Mount

The Lumix S 70-300mm f/4.5-5.6 MACRO O.I.S. Lens from Panasonic is a telephoto zoom lens designed for full-frame format L-mount camera bodies and takes dynamic macro photos and sharp video, giving photographers the versatility needed to capture any moment. Well suited to sports, action, and wildlife photography and video, this lens features advanced image stabilization that powerfully corrects shake in telephoto shooting and enables shooting at slower shutter speeds. Half-macro and conventional tracking accuracy have been combined by increasing the zoom position detection performance by three times, and telephoto operation offers precise zoom tracking control up to eight times faster than other lenses due to wobbling control at 240 Hz. Suppressed focus breathing allows shooting still, smooth video with ease, and dust-, splash-, and freeze-resistance allows shooting even under harsh conditions. Enjoy the rugged versatility of this lens and keep it by your side to prepare for the unexpected!

Features

  • Optical Image Stabilization with Dual I.S. 2 for sharper telephoto images
  • 5.5-stop dual-axis, dual I.S. 2 image stabilization
  • 17 elements in 11 groups
  • Rugged dust-, splash-, and freeze-resistant design for outdoor shooting
  • High-precision tracking performance throughout zoom range
  • 0.50x macro capability at 300mm for higher resolution macro images
  • Less image shifting when zooming ans smooth ring control
  • High-quality video application with suppressed focus breathing
  • Zoom lock switch
Panasonic S5 II X with 20-60mm Lens
Lens Mount Leica L
Sensor Resolution Actual: 25.28 Megapixel
  Effective: 24.2 Megapixel (6000 x 4000)
Sensor Type 35.6 x 23.8 mm (Full-Frame) CMOS
Image Stabilization Sensor-Shift, 5-Axis
Capture Type Stills & Video
Exposure Control
Shutter Type Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed Mechanical Shutter
  1/8000 to 60 Seconds
  Up to 30 Minutes in Bulb Mode
  Electronic Front Curtain Shutter
  1/2000 to 60 Seconds
  Up to 30 Minutes in Bulb Mode
  Electronic Shutter
  1/8000 to 60 Seconds
  Up to 60 Seconds in Bulb Mode
Bulb/Time Mode Bulb Mode, Time Mode
ISO Sensitivity Photo/Video
  100 to 51,200 (Extended: 50 to 204,800)
Metering Method Center-Weighted Average, Highlight Weighted, Multiple, Spot
Exposure Modes Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation -5 to +5 EV (1/3 EV Steps)
Metering Range 0 to 18 EV
White Balance 2500 to 10,000K
  Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
Continuous Shooting Mechanical Shutter
  Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
  Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
  Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
  Electronic Shutter
  Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG)
  Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
  Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
  Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay
Still Image Capture
Image Sizes 3:02
  96 MP (12,000 x 8000) *Via In-Camera Pixel-Shift
  96 MP (8496 x 5664) *Via In-Camera Pixel-Shift
  24.2 MP (6000 x 4000)
  24.2 MP (4272 x 2848)
  24.2 MP (3024 x 2016)
  4:03
  96 MP (10,656 x 8000) *Via In-Camera Pixel-Shift
  96 MP (7552 x 5664) *Via In-Camera Pixel-Shift
  24.2 MP (5328 x 4000)
  24.2 MP (3792 x 2848)
  24.2 MP (2688 x 2016)
  16:09
  96 MP (12,000 x 6736) *Via In-Camera Pixel-Shift
  96 MP (8496 x 4784) *Via In-Camera Pixel-Shift
  24.2 MP (6000 x 3368)
  24.2 MP (4272 x 2400)
  24.2 MP (3024 x 1704)
  1:01
  96 MP (8000 x 8000) *Via In-Camera Pixel-Shift
  96 MP (5664 x 5664) *Via In-Camera Pixel-Shift
  24.2 MP (4000 x 4000)
  24.2 MP (2848 x 2848)
  24.2 MP (2016 x 2016)
  65:24:00
  24.2 MP (6000 x 2208)
  2:01
  24.2 MP (6000 x 3000)
Aspect Ratio 1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Image File Format JPEG, Raw
Bit Depth 14-Bit
Video Capture
Internal Recording Modes H.264/H.265/MOV/MP4/ProRes 4:2:2/4:2:0 8/10-Bit
  5952 x 3968 at 23.98/24.00/25/29.97 fps [200 Mb/s]
  5952 x 3136 at 23.98/24.00/25/29.97 fps [200 Mb/s]
  5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s]
  4096 x 2160 at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]
  3840 x 2160 at 23.98/24.00/25/29.97 fps [72 to 400 Mb/s]
  1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/100/119.88 fps [20 to 454 Mb/s]
External Recording Modes 12-Bit via HDMI
  5888 x 3312 at 23.98/25/29.97 fps
  10-Bit via USB
  5776 x 3056 at 23.98/24.00/25/29.97 fps
  4096 x 2160 at 23.98/24.00/25/29.97 fps
  1920 x 1080 at 24.00/25/50 fps
Sensor Crop Modes Super35 / APS-C
  4096 x 2160
  3840 x 2160
  3328 x 2496
  1920 x 1080
Fast-/Slow-Motion Support Yes
Gamma Curve Panasonic V-Gamut, V-Log
Recording Limit None
Broadcast Output NTSC/PAL
IP Streaming RTP, RTSP
  3840 x 2160 to 1280 x 720 at 25p, 29.97p, 50p, 59.94p (4.0 to 25.00 Mb/s)
Built-In Microphone Type Stereo
Audio Recording MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
  MP4: 2-Channel 16-Bit 48 kHz AAC Audio
Interface
Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-II)
Video I/O 1 x HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output
  1 x 1/8" / 3.5 mm TRRS Headphone/Mic Microphone Input
Power I/O 1 x USB-C Input/Output
Other I/O 1 x USB-C Data Input/Output (Shared with Power Input)
Wireless 2.4 / 5 GHz Wi-Fi (802.11b/g), Wi-Fi 5 (802.11ac), Bluetooth 5.0
App Compatible Yes: Android & iOS
  App Name: Lumix Sync
  Functionality: Access Stored Files, Firmware Update, Remote Control
  *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.) None
Monitor
Size 3"
Resolution 1,840,000 Dot
Display Type Free-Angle Tilting Touchscreen LCD
Viewfinder
Type Built-In Electronic (OLED)
Resolution 3,680,000 Dot
Eye Point 21 mm
Coverage 100%
Magnification Approx. 0.78x
Diopter Adjustment -4 to +2
Focus
Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points Photo, Video
  Contrast Detection, Phase Detection: 779
Autofocus Sensitivity -6 to +18 EV
Flash
Built-In Flash No
Flash Modes Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
Maximum Sync Speed 1/250 Second
Flash Compensation -3 to +3 EV (1/3 EV Steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 80%
General
Battery Type 1 x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 370 Shots)
Tripod Mounting Thread 1 x 1/4"-20 Female (Bottom)
Accessory Mount 1 x Hot Shoe Mount on Camera Body
Material of Construction Magnesium Alloy
Dimensions (W x H x D) 5.29 x 4.03 x 3.55" / 13.44 x 10.24 x 9.02 cm (Without Protrusions)
Weight 1.45 lb / 658 g (Body Only)
  1.64 lb / 744 g (With Recording Media)
Panasonic Lumix S 20-60mm F/3.5-5.6
Focal Length 20 to 60mm
Maximum Aperture f/3.5 to 5.6
Minimum Aperture f/22
Lens Mount Leica L
Format Compatibility Full-Frame
Angle of View 94° to 40°
Minimum Focus Distance 5.91" / 15 cm
Maximum Magnification 0.43x
Optical Design 11 Elements in 9 Groups
Diaphragm Blades 9, Rounded
Focus Type Autofocus
Image Stabilization No
Filter Size 67 mm (Front)
Dimensions (ø x L) 3.05 x 3.43" / 77.4 x 87.2 mm
Weight 12.35 oz / 350 g
Packaging Info
Package Weight 1.455 lb
Box Dimensions (LxWxH) 9.8 x 4.5 x 4.5"
Panasonic Lumix S 70-300mm f4.5-5.6 Macro OIS L-Mount

Focal Length

70 to 300mm
Maximum Aperture f/4.5 to 5.6
Minimum Aperture f/22
Lens Mount Leica L
Format Compatibility Full-Frame
Angle of View 8.3° to 34°
Minimum Focus Distance 1.8' / 54 cm
Maximum Magnification 0.5x
Optical Design 17 Elements in 11 Groups
Diaphragm Blades 11, Rounded
Focus Type Autofocus
Image Stabilization Yes
Filter Size 77 mm (Front)
Dimensions (ø x L) 3.3 x 5.8" / 84 x 148 mm
Weight 1.7 lb / 790 g
