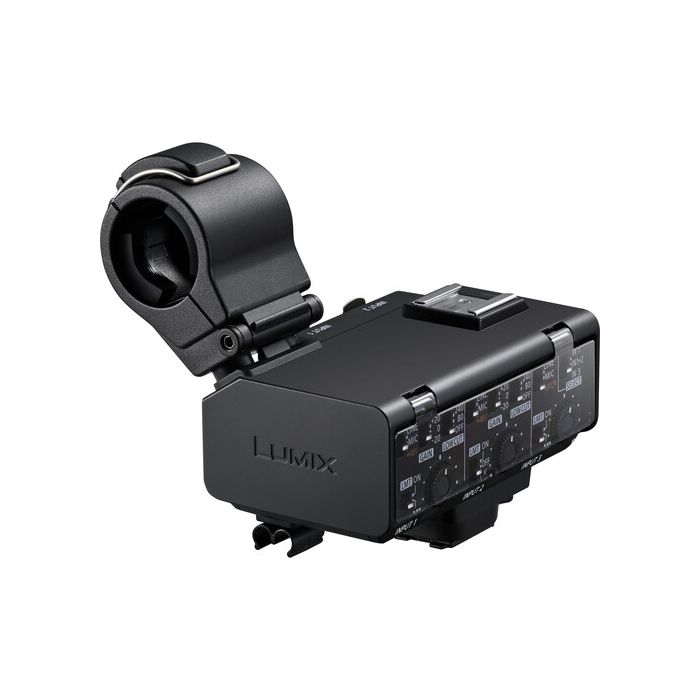

Panasonic DMW-XLR2E GH7 XLR microphone adaptor
by Panasonic
Availability:
In stock
SKU
DMW-XLR2E
XLR microphone adaptor for 4ch audio recording, high-resolution sound recording and 32-bit float recording. Compatible with the LUMIX GH7 (DC-GH7).
€549.00
€439.20
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Panasonic DMW-XLR2 XLR Microphone Adapter
- Microphone Holder
- Cable Holder
- Pouch
XLR microphone adaptor for 4ch audio recording, high-resolution sound recording and 32-bit float recording. Compatible with the LUMIX GH7 (DC-GH7).
- 32-bit float recording with the LUMIX GH7
- 4ch audio and High-Res audio recording
- Microphone holder
- Φ3.5 stereo mini jack
- Physical switches and dials for easy control
32-bit Float Recording*
The camera delivers 32-bit float recording, improving the quality and efficiency of the entire workflow. With its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds. As a result, there is no need for tedious sound level adjustments during audio recording. Video and music can be managed in a single file, making post-production much more efficient.
*Compatible model as of June 2024: LUMIX GH7 (DC-GH7) .
| INPUT1 / INPUT2 | |
| Input Terminal | XLR 3-pin (female) |
| Standard Input Level | LINE: 0 dBu |
| MIC, +48V: -40 dBu | |
| (0 dBu=0.775 Vrms) | |
| Standard Recording Level | -12 dBFS (at the standard input) |
| Frequency Characteristic | 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE) |
| Phantom Power Source | 48V |
| INPUT3 | |
| Input Terminal | φ3.5mm stereo mini jack |
| Standard Input Level | LINE: -10 dBV |
| MIC, MIC (plug-in power): -40 dBV | |
| (0 dBV=1 Vrms) | |
| Standard Recording Level | -12 dBFS (at the standard input) |
| Frequency Characteristic | 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE) |
| Plug-in Power | 2.5V |
| Sampling Frequency Bit Length / Number of Recording Channels | |
| Linear Recording | 48kHz/24-bit/2ch, 96kHz/24-bit/2ch |
| (Select one of INPUT1, INPUT1+2, or INPUT3) | |
| 48kHz/24-bit/4ch | |
| Float Recording | 48kHz/32-bit/2ch, 96kHz/32-bit/2ch |
| (Select one of INPUT1, INPUT1+2, or INPUT3) | |
| 48kHz/32-bit/4ch | |
| Dimensions (W x H x D) | Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch (without microphone holder) |
| Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder) | |
| (excluding the projecting parts) | |
| Weight | Approx. 158 g / 0.35 lb (without microphone holder) |
| Approx. 192 g / 0.43 lb (with microphone holder) | |
| Operating Temperature | -10℃ to 40℃ (14℉ to 104℉) |
| Operating Humidity | 10 - 80 %RH |
| Standard Accessories | Cable Holder, Microphone Holder, Pouch |
