OConnor O-Focus DM Photo Lens Pro Kit
by OConnor- Equipped with a Hard Stop 1:1 Handwheel
- Gear Drive Ratio of 1:0.75
- Produces Longer Pull
- Double-Sided
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

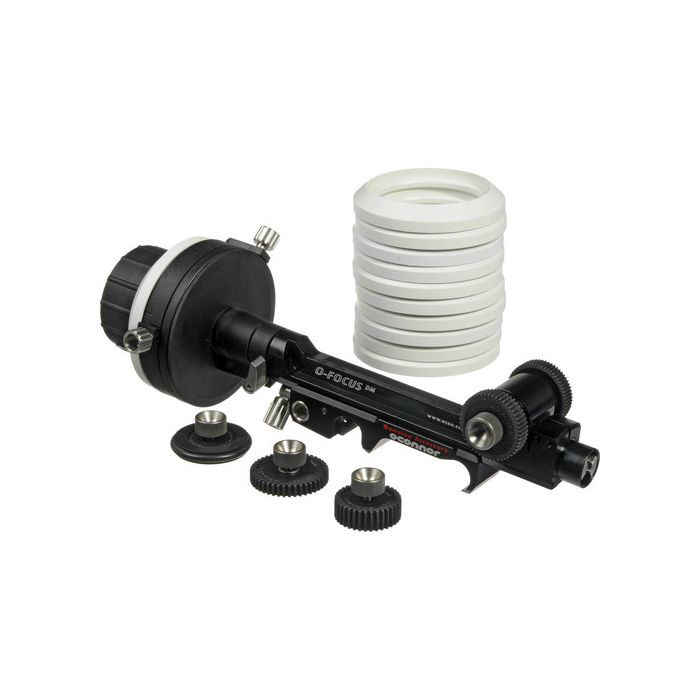

Package includes
OConnor O-Focus Dual Mini Photo Set
OConnor O-Focus Hard Stop Handwheel
OConnor O Focus Main Bridge
OConnor LWS Rod Bridge (15mm)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.8M, 43 Teeth)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.8M, 35 Teeth)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.6M, 50 Teeth)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.5M, 60 Teeth)
OConnor Gear Friction Driver
10 x Conical Marking Disc
Pelican Case
Limited 1-Year Warranty
The OConnor O-Focus Dual Mini Photo Set is a follow focus system equipped with a Hard Stop Handwheel and designed double-sided to optionally also accommodate a Cine Handwheel.
The Dual Mini attaches to a lens by sliding dovetail and is adjustable thus to various lens diameters. Its main bridge is very low-profile and has a gear drive ratio of 1:0.75, which produces 270° of rotation for every 360° that the handwheel is turned, and which hence affords longer, more exacting pull on limited rotation still lenses.
The Hard Stop wheel features a transmission ratio of 1:1 and so maintains the gear driver's longer pull. The wheel offers also the benefit of setting minimum and maximum focus points for infinite rotation lenses, and of performing hard stop pulls, and, moreover, of an on/off switch it has that at the employ of a hand instantly disengages end stops so that important adjustments can be made during sudden moments in a scene.
The Dual Mini is made of lightweight, durable black anodized aluminum. Its bridge can be used with an included LWS rod bridge or optionally with 15/19mm studio rod systems. It can also be used with interchangeable gears and with a handwheel extension. Its low-profile design with no swing arm and with a direct-drive gear box is ideal for large barrel diameter lenses.
Dual Mini
- Equipped with a Hard Stop Handwheel for photo lenses.
- Double-sided to optionally also accommodate a Cine Handwheel.
- Adjustable to various lens diameters by way of a sliding dovetail design.
- The main bridge is low-profile and has a direct-drive gear box and no swing arm.
- The bridge's gear ratio is 1:0.75, which produces a 270° output for every 360° of input.
Hard Stop Handwheel
- Achieves longer, more exacting pull with limited rotation still lenses.
- Features a 1:1 transmission ratio that maintains the Dual Mini's 270° of output.
- Allows minimum and maximum focus points to be set and hard stop pulls to be performed.
- Equipped with an on/off switch that disengages end stops so important adjustments can be made.
Included Drive Gear: 0.5 / 0.6 / 0.8 MOD
Rod Compatibility: 15 mm LWS, Studio
19 mm Studio
Number of Sides: Single-Sided
Built-In Hardstops: None
Witness/Index Mark: Yes
Marking Disk: Yes
Maximum Lens Diameter: 4.56692913385827" / 116 mm
Switchable Handwheel Speed: No
Dimensions: 7.2 x 2.2 x 1.5" / 18.2 x 5.7 x 3.7 cm
Weight: 1.2 lb / 0.6 kg
Packaging Info
Package Weight: 7.73 lb
Box Dimensions (LxWxH): 16.2 x 12.55 x 6.6"
