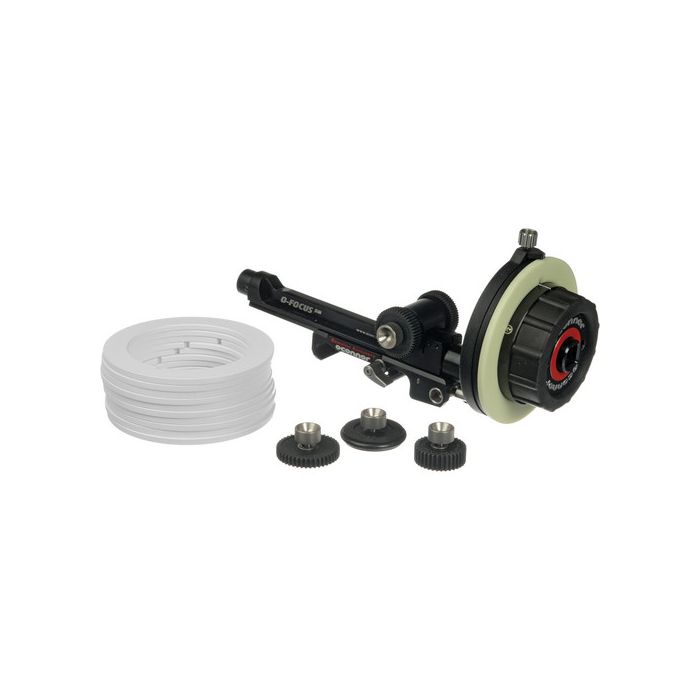

OConnor O-Focus DM Cine Lens Pro Kit
by OConnor- Equipped with a 1:1.8 Cine Handwheel
- Gear Drive Ratio of 1:0.75
- Produces Shorter Pull
- Double-Sided
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
OConnor O-Focus Dual Mini Cine Set
OConnor Handwheel for CFF-1 Follow Focus
OConnor O Focus Main Bridge
OConnor LWS Rod Bridge (15mm)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.8M, 43 Teeth)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.8M, 35 Teeth)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.6M, 50 Teeth)
OConnor Lens Drive Gear for CFF-1 Follow Focus (0.5M, 60 Teeth)
OConnor Gear Friction Driver
10-Pack Flat Studio Marking Discs
Limited 1-Year Warranty
The OConnor O-Focus Dual Mini Cine Set is a follow focus system equipped with a CFF-1 Studio Cine Handwheel and a double-sided design that accommodates an optional hard stop handwheel.
The Dual Mini attaches to a lens by sliding dovetail and is adjustable thus to various lens diameters. Its main bridge is very low-profile and has a gear drive ratio of 1:0.75, which produces 270° of rotation for every 360° that the handwheel is turned (affording longer, more exacting pull on limited-rotation still lenses).
The Studio Handwheel, when coupled with the Dual Mini, offers a shorter and more exacting pull for cine lenses. The wheel features an input/output transmission ratio of 1:1.8 and in interfacing with the Dual Mini produces a 1:1.4 output ratio. Also, the wheel attaches offset to the shaft of the Dual Mini and, when rotated, ends up in different positions that provide the best possible viewing of witness marks. Because of the offset attachment, an adjoined camera can be rested on the ground without its weight pressing on the handwheel.
The Dual Mini is made of lightweight, durable black anodized aluminum. Its bridge can be used with an included LWS rod bridge or, optionally, with 15/19mm studio rod systems, with interchangeable gears, and with a handwheel extension. Its low-profile design with no swing arm and with a direct-drive gear box is ideal for large-barrel diameter lenses.
Dual Mini
- Equipped with a CFF-1 Studio Handwheel for cine lenses.
- Double-sided to accommodate an optional hard stop wheel.
- Adjustable to various lens diameters by way of a sliding dovetail design.
- The main bridge is low-profile and has a direct-drive gear box and no swing arm.
- The bridge's gear ratio is 1:0.75, which produces a 270° output for every 360° of input.
Studio Handwheel
- Achieves shorter, more exacting pull with expanded focus scale cine lenses.
- Features a 1:1.8 transmission ratio that yields a 1:1.4 output coupled with the Dual Mini.
- Attaches offset to the shaft of the Dual Mini and thus allows for optimal viewing of witness marks.
Included Drive Gear: 0.5 / 0.6 / 0.8 MOD
Rod Compatibility: 15 mm LWS, Studio
19 mm Studio
Number of Sides: Single-Sided
Built-In Hardstops: None
Witness/Index Mark: Yes
Marking Disk: Yes
Maximum Lens Diameter: 4.56692913385827" / 116 mm
Switchable Handwheel Speed: No
Dimensions: 7.2 x 2.2 x 1.5" / 18.2 x 5.7 x 3.7 cm
Weight: 1.5 lb / 0.7 kg
Packaging Info
Package Weight: 9 lb
Box Dimensions (LxWxH): 9.5 x 7.5 x 5"
