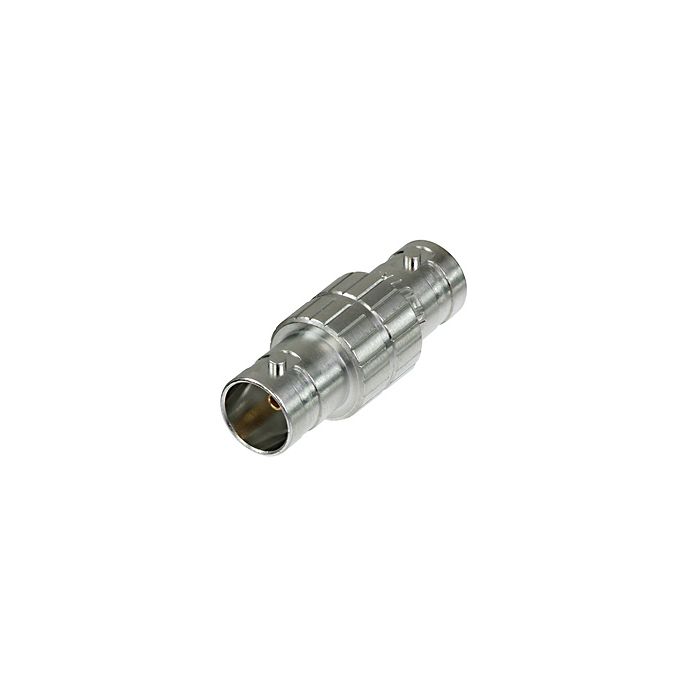

Neutrik NBB75FA Feed Through Coupler
by Neutrik
Availability:
In stock
SKU
NEU-NBB75FA
Gold plated cage type center contact
€12.00
€9.60
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Neutrik NBB75FA
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
| Product | |
| Title | NBB75FA |
| Connection Type | BNC 75 Ω |
| Gender | female |
| Electrical | |
| Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz |
| Mechanical | |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Material | |
| Contacts | Brass (CuZn39Pb3) (ground contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Environmental | |
| Temperature range | -30 °C bis +85 °C |
