Neumann U 47 FET

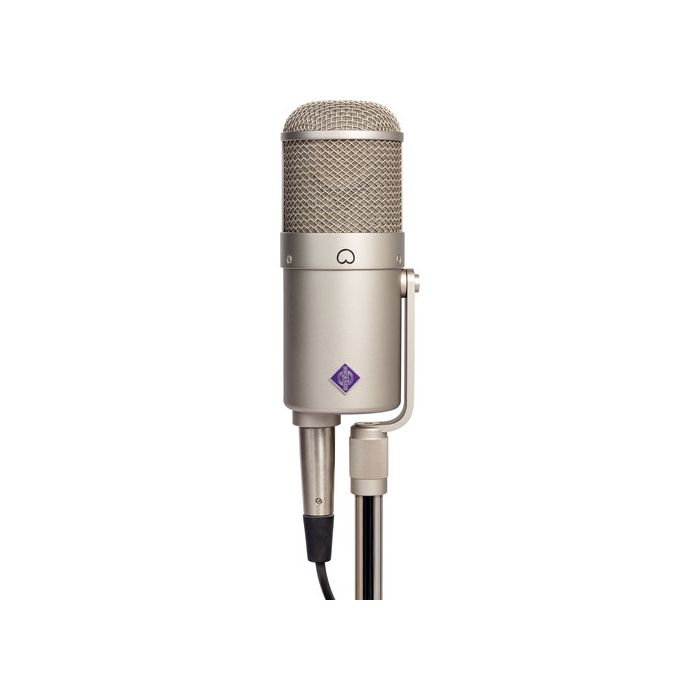

by NeumannNeumann U 47 fet Collector's Edition Condenser Microphone
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Neumann U 47 fet Collector's Edition Condenser Microphone
- Wooden Box
- Collector's Edition Carton Box
- Certificate of Authenticity
- Limited 2-Year Warranty
Built according to the original production documents and schematics of the classic design, the U 47 fet Collector's Edition Condenser Microphone from Neumann is a re-release of this often-copied microphone. A transistorized version of their tube U 47, the U 47 fet features their classic K 47 capsule and boasts a high SPL handling, and has historically found itself at home outside of a kick drum and in front of loud guitar and bass amps, contributing greatly to recordings from the 1960s and 70s. Like the original, there is a slight boost in frequency response around 2 kHz.
The mic features the same low-cut filter as the original at 140 Hz, as well as the selectable -10 dB pad. For additional attenuation, there is a -6 dB output switch, allowing you to hit your mic preamps at a lower level.
| Operating Principle | Pressure Gradient |
| Transducer | Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 40 Hz to 16 kHz |
| Signal to Noise Ratio | 69 dB CCIR 76 dB A-Weighted |
| Equivalent Noise Level | 25 dB CCIR 18 dB A-Weighted |
| Maximum SPL | 137 dB SPL |
| Pad | -10 dB |
| THD | 0.5% |
| Impedance | 150 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | 8 mV/Pa at 1 kHz into 1 kOhms |
| General | |
|---|---|
| Output Connectors | 1 x 3-Pin XLR |
| Operating Current Consumption | 0.5 µA |
| Operating Voltage | 48 V ± 4 V |
| Length | 6.30" / 160 mm |
| Diameter | 2.48" / 63 mm |
| Weight | 1.56 lbs / 710 g |
