Neumann NM V
by Neumann
Availability:
7-10 days delivery
SKU
SEN-008687
For M 49 V Microphone
Vintage Neumann Mics with AC 701 Tube
€1,823.00
€1,458.40
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Neumann MN V Pattern Control Unit
- Power Cable

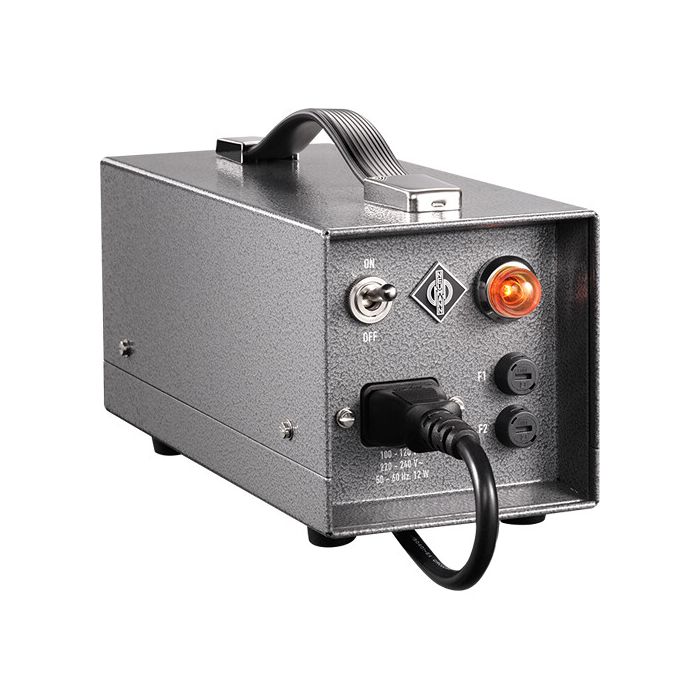

The Neumann MN V Pattern Control Unit is a replacement power supply for the M 49 V large-diaphragm tube condenser microphone. It is also suitable in principle for operating all vintage Neumann microphones utilizing the AC 701 tube, such as the older M 49 and M 249.
- This classical pattern control unit is designed to remotely operate the microphone. Use the pattern knob to continuously adjust the polar pattern from omnidirectional to cardioid to figure-8 and including intermediate settings.
- The built-in power supply automatically switches between the 100 to 240 VAC mains voltage ranges for use internationally. Dual, slow-blow fuses enable safe operation. The sturdy power switch minimizes accidentally switching off the unit and a large indicator lamp emits a warm glow when the power supply is on.
- To ensure a long life, the tube is heated up gently, with current limiting. A very effective filtering inside the NM V ensures very high-quality operating voltages, with a minimum of residual noise voltages.
- The MN V utilizes a 7-pin XLR jack for connection to your microphone and a 3-pin XLR for standardized connectivity with microphone preamps, mixing consoles, and audio interfaces.
- Built in Germany, the unit ships with a power cable and features a top-mounted carry handle for easy transport.
| Compatibility | M 49 V |
|
Vintage Neumann Microphones Utilizing AC 701 Tube (Older M 49, M 249, and Others)
|
|
| Polar-Pattern Control |
Cardioid, Omnidirectional, Figure-8, and All Intermediate Patterns
|
| Supply Voltage |
100 to 240 VAC, Automatic
|
| Power Consumption | Max 12 W |
| Dimensions (L x W x H) |
8.6 x 3.9 x 4.7" / 220 x 100 x 120 mm
|
| Weight | 4.8 lb / 2.2 kg |
