Neumann MTX 191 A

by Neumann
Availability: 7-10 days delivery
SKU
SEN-007331

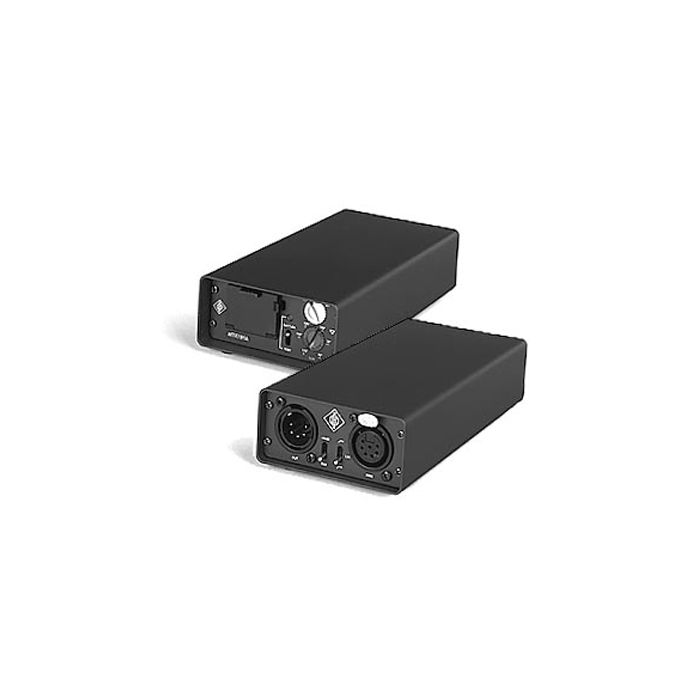

Neumann MTX-191A Matrix Amplifier for RSM191, MS and AK Microphones

€3,089.25 €2,471.40

Package includes

  • 1 x Neumann MTX 191 A

The Neumann MTX-191A is a stereo M-S / X-Y stereo matrix and preamplifier for the RSM191 stereo microphone, MS and AK series microphone capsules. The MTX-191A successfully decodes M-S and X-Y stereo on output; additional features include high-pass filter switch and phantom power. The MTX-191A is powered with a single 9 volt battery.

Operating Voltage 9V or P48
Battery 9-volt
Circuit Breaker Side Signal: variable -9 dB - +6 dB in 3 dB steps
Side Signal: pick-up angle 60° - 170°
Output switchable MS / XY
High-Pass Filter 40(LIN)/80/200 Hz
Weight 390 g (without battery)
Dimensions 1.45 x 3.15 x 5.71" (37 x 80 x 145 mm) (HxWxD)
