Neumann M 149 Tube
by NeumannFor General Studio Use
Large Diaphragm Condenser
9 Polar Patterns
Exceptional Signal Reproduction
Transformerless Output Circuit
7-Step High-Pass Filter
Low Frequency Roll-Off Switch
Shock Mounted Capsule
EA 170 Shock Mount
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Neumann M 149 Switchable Tube Microphone
- Attractive Microphone Case
- N 149 Power Supply with Plug-In Mains Unit
- 8-Core Microphone Connecting Cable
- EA 170 Full Elastic Microphone Suspension
- Dust Cover
- Protective, Wooden Storage Box

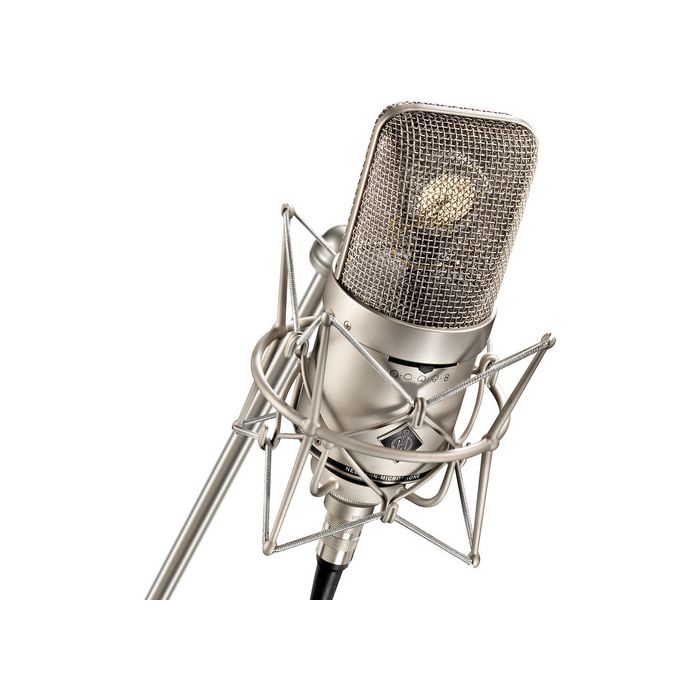

The M 149 Switchable Tube Microphone from Neumann is a variable dual-diaphragm microphone. The K 49 capsule, well known from the legendary U 47 and M 49 microphones, is followed by a tube functioning as an impedance converter. In contrast to earlier concepts utilizing a transformer, the tube is complemented with a transformerless output circuit design. The M 149 Tube can thus feed long microphone cables without any coloration.
Two slide switches are located below the large, acoustically open headgrille. The switch at the front allows selection one of nine directional patterns. The slide switch at the rear operates a seven-step high pass filter, allowing very fine adjustment of the cut-off frequency.
Transformerless Tube Output Circuitry
Transformerless output circuit, triode tube and integrated amplifier provide a signal output stage featuring very low self-noise and distortion. The final output stage is an integrated amplifier that provides a very high output signal and the frequency response curve is unaffected by high, transient signal levels resulting in warm, transparent signal reproduction.
Exceptional Signal Reproduction
Utilizing the legendary K 49 capsule - well known from the legendary U 47 and M 49 microphones - as well as a modern tube and high quality amplifier output stage, the M 149 Tube delivers exceptional signal character and response. A frequency response of 20 Hz to 20 kHz and SPL rating of 136 dB < 5% THD result in pristine audio reproduction at various dynamic range.
9 Selectable Polar Patterns
Omnidirectional, wide angle cardioid, cardioid, hypercardioid and figure 8 polar patterns are provided. Intermediate positions of each are located in between the pattern designations.
Low Frequency Roll-Off Switch
A 7-position low frequency roll-off switch is located at the rear of the microphone. It selects a high-pass filter, advancing in half-octave steps between 20 Hz and 160 Hz (-3 dB)
Shock Mounted Capsule
The capsule is mounted elastically inside the head to minimize structure borne noise.
EA 170 Shock-Mount
The elastic EA 170 microphone shock-mount is included and even further minimizes noise caused by handling.
Operating Principle | Pressure Gradient |
Polar Pattern | Cardioid, Figure-8, Hypercardioid, Omnidirectional, Subcardioid/Wide Cardioid |
Pattern Selection | Switched |
Circuitry | Tube |
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 120 dB SPL 136 dB SPL |
Impedance | 50 Ohms |
Load Impedance | 1000 Ohms |
Sensitivity | 34 mV/Pa at 1 kHz into 1 Kilohms 47 mV/Pa at 1 kHz into 1 Kilohms 62 mV/Pa at 1 kHz into 1 Kilohms |
Signal-to-Noise Ratio | 66 dB CCIR 69 dB CCIR 71 dB CCIR 78 dB A-Weighted 81 dB A-Weighted 83 dB A-Weighted |
Equivalent Noise Level | 28 dB CCIR 25 dB CCIR 23 dB CCIR 16 dB A-Weighted 13 dB A-Weighted 11 dB A-Weighted |
THD | 0.5% |
Output Connectors (Analog) | 1 x XLR 3-Pin |
Dimensions | ø: 2.76 x L: 7.91" / ø: 70 x L: 201 mm |
Weight | 25.75 oz / 730 g |
Package Weight | 13.4 lb |
Box Dimensions (LxWxH) | 15.9 x 13.9 x 6.6" |
