Neumann KM 184 mt Octo Set
by Neumann8 x KM 184 Microphones
8 x Foam Windscreens
8 x Stand Adapters and Mic Pouches
Small-Diaphragm Condenser Elements
Uniform Cardioid Polar Pattern
Uncolored, High-Gain Output Signals
Ultralow Self-Noise
Transformerless Circuitry
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

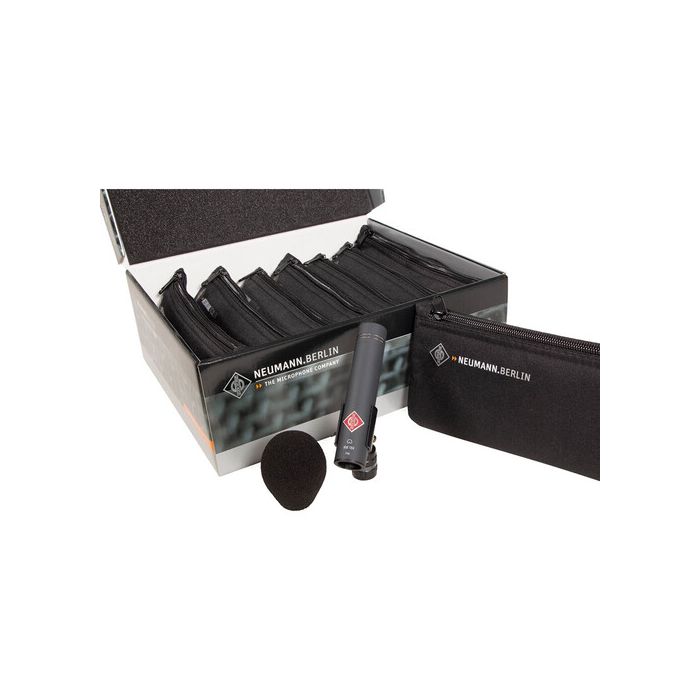

Package includes
- 8 x Neumann KM 184 MT Microphone (Matte Black)
- Neumann WNS100 Windscreen 45mm (Black)
- Neumann SG21/17MT Swivel Mount with Clamp for Microphones 21mm in Diameter
- 8 x Microphone Pouches
Ideal for orchestral recording and live stage applications, the matte black Neumann KM 184 MT Octo Set features eight KM 184 MT small-diaphragm cardioid condenser microphones, each with a foam windscreen, a stand adapter, and a mic pouch. The KM 184 MT offers premium Neumann sound that's both open and musical without imparting its own sonic signature, making it a popular choice for solo instruments and ensembles where microphone transparency is a top priority.
The transformerless circuitry and balanced output result in high-output gain with an ultralow noise floor. The mic's uniform cardioid polar pattern provides a targeted pickup area with no off-axis coloration while handling SPLs up to 138 dB, allowing confident close-miking of instruments. As with true condenser mics, the KM 184 is powered via +48V phantom power.
Cardioid Polar Pattern
The cardioid polar pattern effectively isolates signal source.
KM 100-Based Output Stage
The KM 184 features the same output stage electronics as the KM 100. Transformerless circuitry and quiet balanced output design ensure a clean, high-gain output signal without any coloration. The KM 184 is powered via +48V phantom power, and its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 184 can handle sound-pressure levels up to 138 dB, allowing fairly close miking of instruments.
Compact Rugged Construction
The slim design and rugged construction allow easy microphone placement while remaining roadworthy.
Operating Principle | Pressure Gradient |
Capsule | Condenser |
Polar Pattern | Cardioid |
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 138 dB SPL |
Impedance | 50 Ohms |
Load Impedance | 1000 Ohms |
Sensitivity | 15 mV/Pa at 1 kHz into 1 Kilohms |
Signal-to-Noise Ratio | 72 dB CCIR 81 dB A-Weighted |
Equivalent Noise Level | 22 dB CCIR 13 dB A-Weighted |
THD | 0.5% |
Output Connectors (Analog) | 1 x XLR 3-Pin |
Operating Voltage | 48 V ± 4 V |
Operating Current Consumption | 3.2 mA |
Dimensions | ø: 0.87 x L: 4.21" / ø: 22 x L: 107 mm |
Weight | 2.82 oz / 80 g |
Package Weight | 0.55 lb |
Box Dimensions (LxWxH) | 9.85 x 3.2 x 2.5" |
