Neumann KM 184 D nx Stereo Set

by Neumann
Availability: 7-10 days delivery

Neumann KM 184 D NX ST Small Diaphragm Cardioid Digital Microphones with AES/EBU Output (Stereo Set, Nextel Black)

€2,667.75 €2,134.20

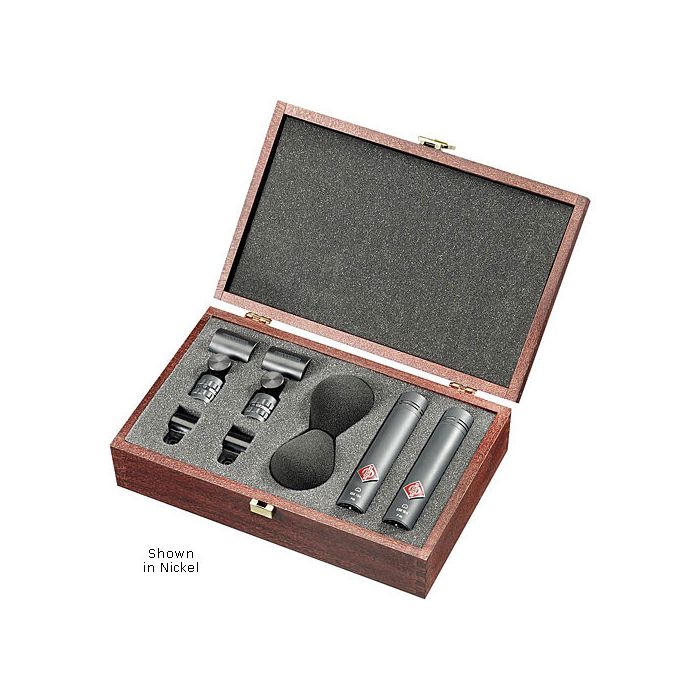

Package includes

  • Neumann KM 184 D NX
  • 2 x WNS110 Foam Windscreen for KM Series Microphone
  • 2 x SG21/17MT Swivel Mount with Clamp for 21mm Mics
  • Wooden Box
  • Limited 2-Year Warranty

The nextel black KM 184 D NX ST from Neumann is a matched, stereo pair of cardioid, pressure condenser microphones with an AES/EBU digital output and built-in A/D converter. Neumann continues to make strides in microphone technology with internal digital conversion and an AES/EBU 42 output standard that allows remote software operation with the DMI-2 digital microphone interface, or direct connection to AES inputs on digital mixers, field recorders, etc.

The capsule, polar pattern and sonic characteristics are similar to the KM 184 analog model and is intended for live sound reinforcement and broadcast as well as recording applications. The cardioid polar pattern minimizes noise and off-axis audio signal. Vocals and instruments are captured without feedback, and ambiance. The KM 184 D features a non-reflective finish.

Operating Principle Pressure Gradient
Polar Pattern Cardioid
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 70 dB CCIR
81 dB A-Weighted
Equivalent Noise Level 24 dB CCIR
13 dB A-Weighted
Maximum SPL 133 dB SPL
Pad -18 dB
Sensitivity -39 dBFS
Digital Performance
Bit Depth 24-Bit
Output Connectors 1 x 3-Pin XLR
Operating Current Consumption 150 mA
Operating Voltage 48 V ± 4 V
Length 4.25" / 108 mm
Diameter 0.87" / 22 mm
Weight 3.00 oz / 85 g
