Neumann KM 183 D

by Neumann
Availability: 7-10 days delivery

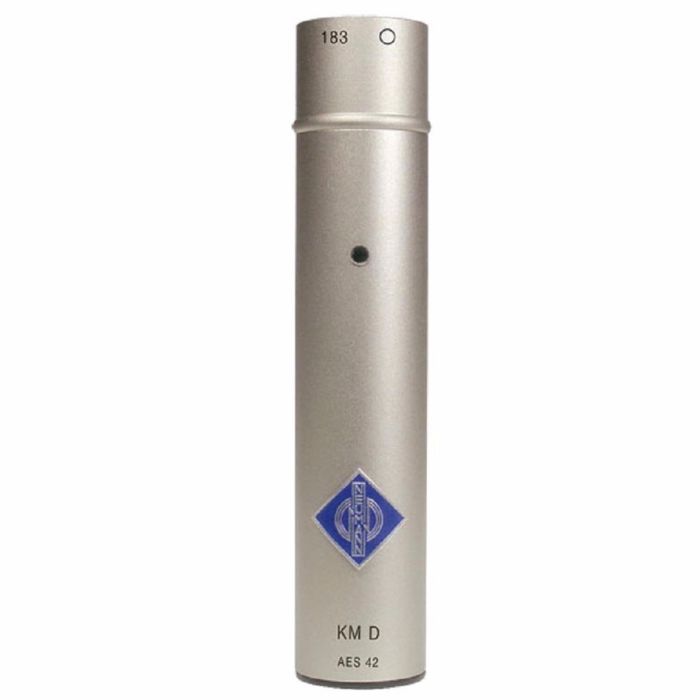

Neumann KM 183D - Small Diaphragm Omnidirectional Digital Microphone with AES/EBU Output (Black)

€1,450.00 €1,160.00

Package includes

  • 1 x Neumann KM 183 D

The Neumann KM 183D is an omnidirectional, pressure condenser microphone with an AES/EBU digital output and built-in A/D converter. Neumann continues to make strides in microphone technology with internal digital conversion and an AES/EBU 42 output standard that allows remote software operation with the DMI-2 digital microphone interface, or direct connection to AES inputs on digital mixers, field recorders, etc.

The capsule, polar pattern and sonic characteristics are similar to the KM 183 analog model and is intended for live sound reinforcement and broadcast as well as recording applications. The omnidirectional polar pattern provides a generous pick up area and is suitable for X,Y (with cardioid mic and baffle plate) stereo miking, ambiance miking or spot miking instruments such as piano, wind instruments organ and choir. The KM 183D features a non-reflective finish.

Operating Principle Pressure Gradient
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 69 dB CCIR
81 dB A-Weighted
Equivalent Noise Level 25 dB CCIR
13 dB A-Weighted
Maximum SPL 135 dB SPL
Pad -18 dB
Sensitivity -41 mV/Pa
Output Connectors 1 x 3-Pin XLR
Operating Current Consumption 150 mA
Operating Voltage 48 V ± 4 V
Length 4.25" / 108 mm
Diameter 0.87" / 22 mm
Weight 2.86 oz / 81 g
