Neumann BCM 705
by NeumannThe first Neumann microphone with a dynamic capsule. Functionally optimized design specifically for the broadcast field, featuring integrated pop protection, suppression of structure-borne noise and a hypercardioid directional characteristic.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1 x Neumann BCM 705
Emotion conveyed with technical perfection. This is the ideal which the Neumann microphones in the Broadcast Line have been designed to fulfill. The fine-tuning to the requirements of professional broadcast studios and the individual, functionally optimized design* ensure that these are microphones of character.
The BCM 705 is Neumann’s first dynamic microphone. The housing and headgrille are identical to those of the BCM 104; only the green logo indicates that this is something new from Neumann. The principle of reduction to the essentials can be seen in the dynamic capsule with a hypercardioid directional characteristic, specifically designed for speech reproduction at close range. Multi-level isolation from structure-borne noise ensures operation free of interference, even in a lively studio environment.
The microphone headgrille twists off easily for quick cleaning. Neumann offers optional, color-coded headgrilles so that, for reasons of hygiene, each announcer can use his or her individual headgrille.
The microphones of the Broadcast Line have an elastic mount against structure-borne noise, that is compatible with standard broadcast-segment microphone arms.
The frequency response has a light treble boost, in the region from 2 kHz to 9 kHz, aiding the speech intelligibility. The bass frequency response is designed to compensate for the overemphasis of the bass caused by the proximity effect.
A pop screen not only prevents the occurrence of plosive pop noises in vocal recordings, but also efficiently prevents unwanted particles, from respiratory moisture, nicotine, to food remnants, from settling on the diaphragm.

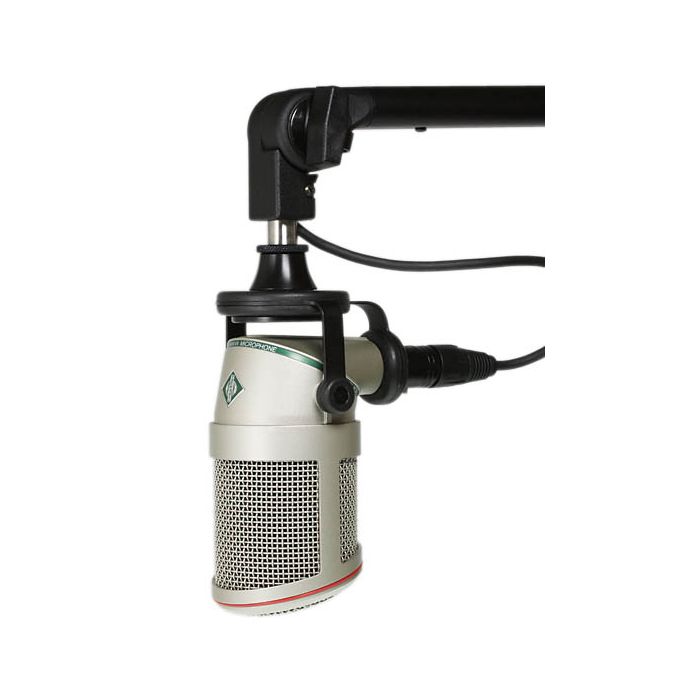

The preferred mode of operation is to suspend the BCM 104 or BCM 705 from a standard studio boom arm.
A thread adapter to fit different connector threads is included. In order to provide protection from structure-borne noise, both the capsule and the microphone in its mount are elastically suspended.
The optional SG 5 swivel mount allows additional angling of the microphone by +/-90 degrees.
| Operating Principle | Pressure Gradient |
| Transducer | Dynamic |
| Polar Pattern | Hypercardioid |
| Frequency Range | 20 Hz to 20 kHz |
| Signal to Noise Ratio | 62 dB CCIR 76 dB A-Weighted |
| Equivalent Noise Level | 32 dB CCIR 18 dB A-Weighted |
| Impedance | 200 Ohms |
| Load Impedance | 10 kOhms |
| Sensitivity | 1.7 mV/Pa at 1 kHz into 10 kOhms |
| General | |
|---|---|
| Output Connectors | 1 x 3-Pin XLR |
| Operating Voltage | Not specified by manufacturer |
| Length | 3.35" / 85 mm |
| Diameter | 2.52" / 64 mm |
| Weight | 1.10 lbs / 500 g |
