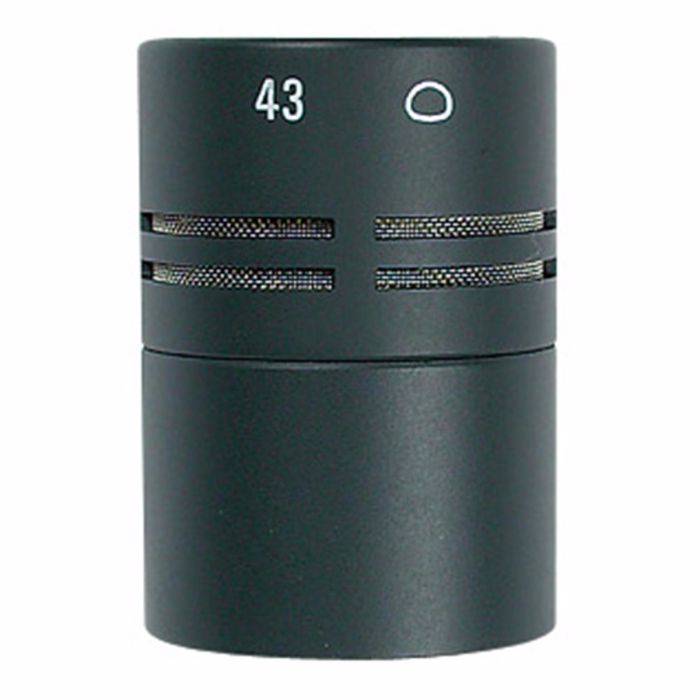

Neumann AK 43

by Neumann
Raspoloživost: Isporuka 7-10 dana
SKU
SEN-069014

Neumann AK 43 - Wide-Angle Cardioid Miniature Capsule for KM 100 and KM 100F Power Supplies

856,06€/6.450,00 kn 684,85€/5.160,00 kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • 1 x Neumann AK 43

The Neumann AK 43 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 43 element features a pressure gradient, single diaphragm transducer with a wide-angle cardioid polar pattern.

Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB. The wide-angled cardioid pattern offers a more generous pick up area then conventional cardioid microphones, making it suitable for ambiance recording, vocal recording, stereo miking as well as close miking of instruments.

Modular Design
The capsule is developed for use with the KM100 and KM100F modular power supplies.
Wide-Angled Cardioid
The pressure gradient element provides a wide-angled cardioid pattern. Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB.


Transducer Pressure Gradient Condenser
Polar Pattern Wide-Angle Cardioid
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 122 dB
Signal-to-Noise Ratio 69 dB Related at 1 Pa at 1 kHz (CCIR dB)
78 dB Related at 1 Pa at 1 kHz (A-Weighted dB)
Maximum Input Sound Level 138 dB Less than 0.5% THD (without Preattenuation)
148 dB Less than 0.5% THD (with Preattenuation)
Power Requirements Phantom +48v (KM 100 Power Supply)
Output Impedance 50 Ohms
Output Connectors XLR-3 Type (KM 100 Power Supply)
Pad Yes, -10 dB Preattenuation
Low Frequency Roll-Off Use KM 100F Power Supply
Dimensions (LxDiameter) 3.68 x 0.88" (92 x 22mm)
Weight 2.82 oz. (80 g)
