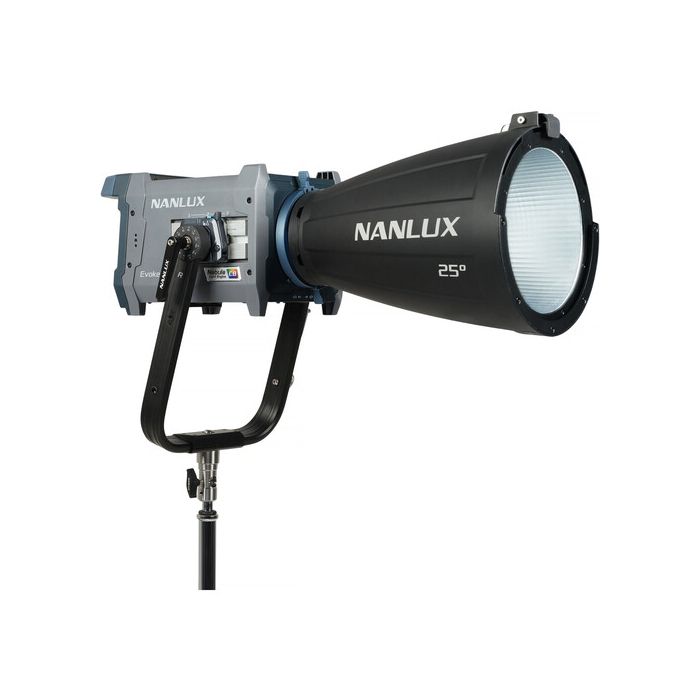

Nanlux Evoke 600C RGBLAC Spot Light

Powerful and extremely color-accurate, the Evoke 600C RGB LED Spot Light Trolley Case Kit from Nanlux arrives as the ideal choice for a light setup in need of an all-in-one full-color fixture with no external ballast. With a larger body than its 150C version, the 600C itself measures 14 x 9.7 x 8" and weighs 16 lb to offer a native BE mount for standard Bowens compatibility. Developed to accommodate most situations, the light's wide color balance from 1000 to 20,000K is backed by an extensive +/- 200 green/magenta tint-shifting. What is behind this advanced capability is the Nebula C8 8-chip light engine that mixes deep red, red, amber, lime, green, cyan, blue, and indigo LEDs for the most vivid colors. The Evoke 600C permits AC/DC power and features a wide range of reliable control methods—onboard, DMX/RDM, LumenRadio CRMX, app, or using the supplied wired controller. Finally, the Evoke 600C is built around an IP66-rated housing for all-weather protection. Nanlux adds a trolley case that ensures full protection during storage and transportation.

Your Go-To Powerhouse Fixture

Using a reliable 8-chip light engine, the Evoke 600C's Nebula C8 technology produces bright and accurate illuminance for a variety of scenarios—meaning deep saturation, warm CCT, and wide color gamut with eight colored LED emitters. The Evoke 600C features advanced light mixing technologies ensuring accuracy in CCT changes from 1000K all the way up to 20,000K. The Evoke 600C outputs an impressive bare light 24,620 lux at 3.3' and 5600K or up to 20,820 lux at a relevant distance of 9.8' using its 25° reflector.

Nebula C8 LED Light Engine

Nanlux's goal here was to find the highest level of accuracy. Through rigorous testing, the brand was looking for a specific number of combined LEDs that could produce highly accurate color rendition and the widest possible color range. By applying the Nebula C8 technology, the Evoke 600C's 8-chip LED engine means the most accurate, broadest, and richest spectrum of the color space. Developed for professionals who care about the quality of color rendition, the Evoke 600C has gone through the most rigorous and professional testing until it became an accurate and extremely versatile full-color fixture that is larger than the 150C, but still compact.

Accurate Color, Precise Dimming & Effects

Always light with confidence: whether you're dimming down or going to full intensity. The Evoke 600C features 0-100% dimming capabilities in 0.1% step increments for smooth light fading and seamless adjustments. CRI 96, TLCI 97, SSI 78 at 5600K, and SSI 86 at 3200K are high ratings that demonstrate precise color rendering, which translates in pleasing tones. Besides that, 15 built-in effects are CCT loop, INT loop, HUE loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.

Extensive Operating Options

Nanlux offers a generous bounty of methods to control the Evoke 600C, supporting both wired and wireless control for simple or complex sets. Dimming and other adjustments can be made locally, over DMX/RDM, or by using other advanced options. These operating options include: intuitive onboard or wireless Nanlink app control via Bluetooth, DMX control with an optional DMX console, wireless DMX via LumenRadio CRMX, or an optional WS-RC-C2 wireless remote. Here, Nanlux supplies the WC-EXT wired controller that magnetically attaches to metal surfaces or to the included magnetic base of the fixture. The optional AS-EXT-LAN adapter also supports Ethernet control with the ArtNet/sACN protocols. NFC functionality allows for quick app control.

Simplified AC/DC Power & Cooling System

One of the main highlights of this fixture is its convenient all-in-one design with no need for an external ballast. A single cord plugs into one port for both AC and DC power options. Power options are AC 100-240V or DC 48V. To keep the light from overheating, this fan-cooled fixture provides five different modes: smart, full speed, low speed, pause, and off.

25° BE Mount Reflector

Paired with its included 25° reflector, the Evoke 600C enables BE mount-compatible light modifiers, offering standard Bowens mount compatibility, which expands your modifying possibilities. Electronic contacts communicate with select modifiers for optimized performance. An optional NL to BE mount adapter expands your light shaping options for use with NL mount accessories.

All-Weather Protection

Rugged and durably constructed, the IP66-rated design of the Evoke 600C protects the fixture from dust, water, rough weather, and demanding environments. Do not worry about location work under the rain or any eventuality that occurs on set. The light was made to be robust, but its modular design facilitates repairs if needed.

Accessories

The Evoke 600C is conveniently packed with a 19.6' long AC power cord, a USB flash drive, a wired controller, and a 26.2' long connection cable.
