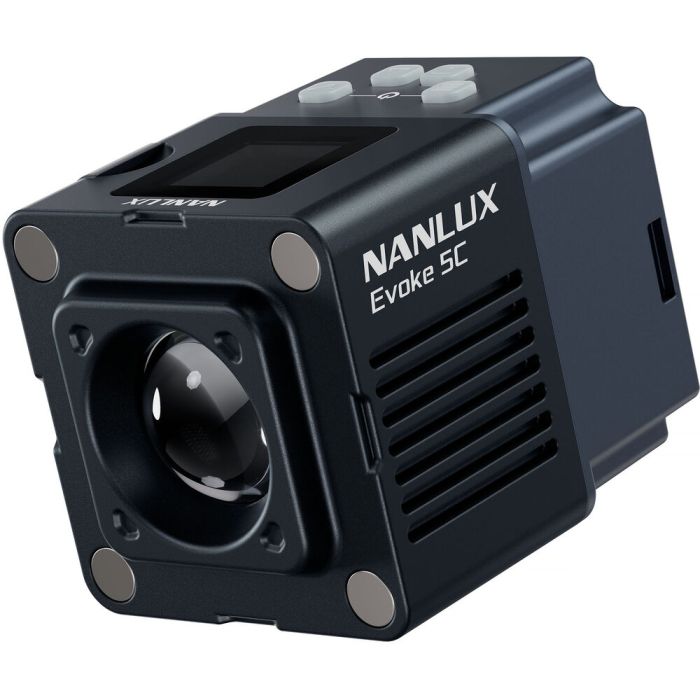

Nanlux Evoke 5C LED Full-color Spot Light
by Nanlux
Availability:
7-10 days delivery
SKU
NX-EVOKE5C
Designed as Nanlux's most compact Evoke light, the Evoke 5C RGB LED Spotlight is a 6W fixture with full-color output, an extremely wide 1000-20,000K CCT range, extensive green/magenta tint-shifting, and advanced control.
€265.00
€212.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Nanlux Evoke 5C RGB LED Spotlight
- USB-C Cable (3.3')
- Magnetic Diffuser
- Magnetic Yoke
- Magnetic Thermal Shield
- Carry Bag
Designed as Nanlux's most compact Evoke light, the Evoke 5C RGB LED Spotlight is a 6W fixture with full-color output, an extremely wide 1000-20,000K CCT range, extensive green/magenta tint-shifting, and advanced control. Additional benefits are a weatherproof IP67 rating, a built-in battery, and a convenient and versatile magnetic accessory ecosystem. Along with the light, Nanlux includes a 3.3' long USB-C cable and a range of magnetic accessories, such as a diffuser, a yoke, and a thermal shield. A carry bag is also supplied for storage and transportation. Using Nanlux's Nebula C8 technology, the ultracompact Evoke 5C produces red, deep red, amber, lime, green, cyan, blue, and indigo colors via an impressive 2.2 x 1.7 x 1.7" form factor and 5.6 oz lightweight body. All of these features make this a capable light that you can easily modify and take wherever you go.
Small & Bright
Use the Evoke 5C to light up your scenes and objects, enhance fine details, build atmosphere, add highlights, or create precise accent lighting. The ideal compact LED solution for subtle fill light, as well as macro and miniature objects/product photography. Despite its small footprint, the bare Evoke 5C delivers up to 496 lux at 3.3' and 5600K. It can easily be hidden behind in-frame objects to add dimension to a scene, serve as a practical light, or illuminate products.
Full Color Lighting
Just as more powerful lights of the Evoke series, the 5C model enables 0-100% dimming and advanced light mixing technologies, ensuring accuracy in CCT changes from 1000K all the way up to 20,000K. High CRI 98 and TLCI 98 ratings showcase the light's precise color rendering, which translates into pleasing tones for the viewer. Access the fixture's CCT, HSI, RGBW, XY, Gel, and Effect modes for custom lighting options.
Gel Mode & Creative Effects
The light holds 460 LEE and Rosco gels for quick selection, as well as 15 built-in effects for easy lighting simulations. This includes CCT loop, INT loop, HUE loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding. Users can also find group effects with HUE Loop, CCT Loop, INT Loop, flash, pulse, process, scroll, and driving presets via the app.
Intuitive Control Options
Nanlux offers a generous bounty of methods to control the Evoke 5C, supporting both wired and wireless control for simple or complex sets. Choose from onboard or wireless Nanlink app control via Bluetooth for intuitive management of settings. The screen brightness is adjustable and can be set to automatically turn off after a period of time if needed. Additionally, the 5C also supports DMX/RDM and LumenRadio CRMX (requires an optional DMX adapter cable or CRMX module). NFC control is another addition to this light.
Integrated Battery & Accessories
One of the main highlights of this fixture is its internal battery that provides a runtime of 50 minutes at full output. You can charge it using an optional adapter or power bank with a 5V/2A rating or higher. The Evoke 5C also supports charging via electronic contacts, meaning compatibility with an optional battery grip, magnetic E27 socket adapter, or eight-kit case. The light has a 25° beam angle, and other accessories and a wide variety of modifiers are available separately. Electronic contacts communicate with select modifiers for optimized performance.
All-Weather Protection & More
Its IP67 rating protects the fixture from dust, water, or any rough weather or demanding environments. It has a waterproof design for up to 30 minutes at a depth of 3.3'. The fixture is also magnetically attachable and has a 1/4"-20 mount for wide mounting compatibility. Use it handheld or mounted with its 1/4"-20 mount with anti-twist design. If the light runs for long periods of time, Nanlux's included thermal shield keeps it cool to the touch. Firmware updates are available for the light and select accessories, such as the optional battery grip and CRMX module.
| Light Fixture | |
| Item Type | 1x LED Spot Light |
| Included Light Modifier | 1x Diffuser |
| Included Storage Case | Yes |
| Photometrics | 3200K: |
| 41 fc / 448 Lux at 3.3' / 1 m (Unmodified) | |
| 509 fc / 5480 Lux at 1' / 0.3 m (Unmodified) | |
| 170 fc / 1835 Lux at 1.6' / 0.5 m (Unmodified) | |
| 5600K: | |
| 46 fc / 496 Lux at 3.3' / 1 m (Unmodified) | |
| 554 fc / 5970 Lux at 1' / 0.3 m (Unmodified) | |
| 188 fc / 2026 Lux at 1.6' / 0.5 m (Unmodified) | |
| 3200K: | |
| 1 fc / 17 Lux at 3.3' / 1 m (with Diffuser)* | |
| 20 fc / 220 Lux at 1' / 0.3 m (with Diffuser) | |
| 6 fc / 67 Lux at 1.6' / 0.5 m (with Diffuser) | |
| 5600K: | |
| 1 fc / 19 Lux at 3.3' / 1 m (with Diffuser)* | |
| 22 fc / 242 Lux at 1' / 0.3 m (with Diffuser) | |
| 6 fc / 74 Lux at 1.6' / 0.5 m (with Diffuser) | |
| *Standardized Measurement Calculated Internally Based on Closest Distance | |
| Color Temperature | 1000 to 20,000K +/- 200K |
| Color Modes | RGB, Daylight, Tungsten |
| Color Accuracy Standard | CRI 98 |
| TLCI 98 | |
| SSI 78 at 5600K | |
| SSI 86 at 3200K | |
| TM-30 Rf 96 | |
| TM-30 Rg 100 | |
| Dimming | App-Controlled / Built-In Dimmer / DMX / RDM |
| • 0 to 100% | |
| Beam Angle | 25° |
| Built-In Flash | No |
| Preprogrammed Effects | Yes |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Connectivity | |
| Wireless Remote Control Type | Bluetooth |
| CRMX *Adapter Required (Not Included) | |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Nanlink | |
| Functionality: Remote Control | |
| Power & I/O | |
| Power Source | Battery (Built-In) |
| Inputs/Outputs | 1x USB-C Female Power/DMX Input |
| *Adapter Required (Not Included) (5 VDC at 2 A) | |
| Battery | 1x Rechargeable, 3.7 VDC, 1300 mAh (Built-In) |
| • Up to 50-Minute Runtime at Maximum Brightness | |
| • Up to 156-Minute Runtime at Minimum Brightness | |
| Battery Charging | 1x Charging Cable (Included) |
| Input Power | 5 VDC at 2 A |
| Included Adapter / Cable | 1x USB-C Male to USB-C Male Cable (14.8' / 4.5 m) |
| Power Pass-Thru | No |
| Power Consumption | 6 W |
| Mounting | |
| Fixture Mounting | 1x 1/4"-20 Female Thread |
| Magnetic | |
| Included Adapter | 1x Swivel Mount: 1/4"-20 Female Thread to Proprietary |
| General | |
| Display | Yes |
| Environmental Resistance | Dust/Weather/Water-Resistant (IP67) |
| Operating Conditions | -4 to 104°F / -20 to 40°C |
| Certifications | BIS, CE, FCC-ID, PSE Circle, RoHS, UKCA, UKCA |
| Dimensions | 2.2 x 1.7 x 1.7" / 5.6 x 4.3 x 4.3 cm (Fixture) |
| 5.31 x 2.95 x 1.97" / 13.49 x 7.49 x 5 cm (Included Storage Case) | |
| Weight | 5.6 oz / 160 g (Fixture) |
