Nanlux Evoke 5C LED Full-color Spot Light 8KIT
by Nanlux
Availability:
7-10 days delivery
SKU
NX-EVOKE5C-K8
Light up your scene with the Evoke 5C RGB LED Spotlight 8-Light Kit from Nanlux. Packing eight of their most compact fixtures, the Evoke 5C 6W lights have full-color output, an extremely wide 1000-20,000K CCT range, extensive green/magenta tint-shifting, and advanced control.
€3,125.00
€2,500.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Nanlux Evoke 5C RGB LED Spotlight (8-Light Kit)
- 8 x Magnetic Diffuser
- 4 x Magnetic Soft Dome
- 8 x Magnetic CRMX Module
- 8 x Magnetic Thermal Shield
- 4 x Magnetic Barndoors
- 4 x Magnetic Snoot
- 4 x Magnetic Fresnel Lens
- 4 x Magnetic Battery Grip
- 4 x 5/8" Baby Pin with 1/4"-20 Thread
- 4 x Magnetic E27 Socket Adapter
- 4 x Magnetic Yoke
- 2 x Projection Attachment (15-35°)
- 8 x Gobo
- 2 x Magnetic Spot Beam Lens
- AC Power Cable (4.9')
- D-Tap Cable

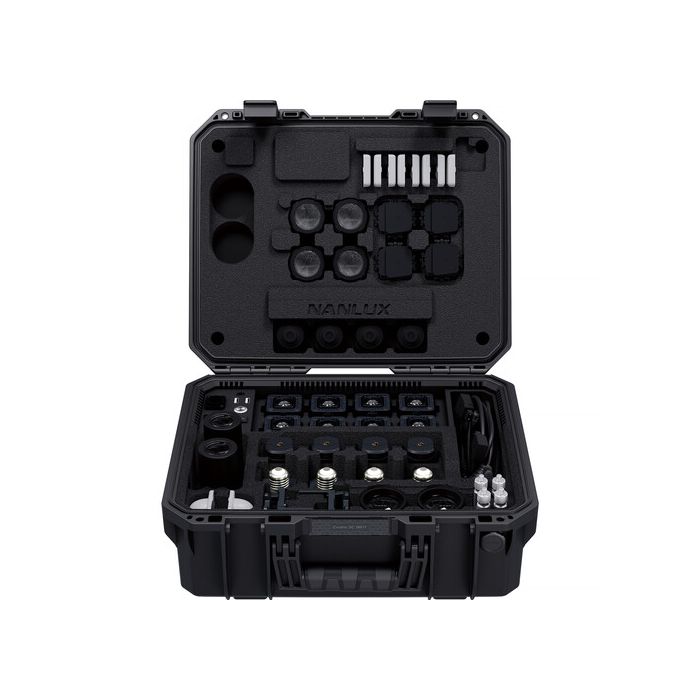

- GUTEK T-230 Charging Protector Case (Black)
Go-Anywhere Lighting Solution
Light up your scene with the Evoke 5C RGB LED Spotlight 8-Light Kit from Nanlux. Packing eight of their most compact fixtures, the Evoke 5C 6W lights have full-color output, an extremely wide 1000-20,000K CCT range, extensive green/magenta tint-shifting, and advanced control. The kit also includes a wide range of magnetic modifiers and accessories with a robust protector case for charging, storage, and transportation. Additional benefits are a weatherproof IP67 rating and a complete magnetic accessory ecosystem. Along with the lights, Nanlux includes barndoors, diffusers, soft domes, snoots, and thermal shields. The list keeps going with yokes, E27 socket adapters, CRMX modules, 15-35° projection attachments, gobos, and more. Using Nanlux's Nebula C8 technology, each ultracompact Evoke 5C produces red, deep red, amber, lime, green, cyan, blue, and indigo colors via an impressive 2.2 x 1.7 x 1.7" form factor and 5.6 oz lightweight body. All of these features make the 5C a capable light that you can easily modify and take wherever you go.
8-Light Kit
Included with the eight Evoke 5C fixtures are a complete set of magnetic accessories, including barndoors to direct and restrict the spread of light, diffusers and domes for softness, snoots for selective lighting, and more. This kit also packs CRMX modules, 5/8" baby pins with 1/4"-20 threads, magnetic E27 socket adapters, yokes, lenses, and two 15-35° projection attachments with eight gobos for creative use. Effortlessly attach or detach the modifiers via their magnetic design. A robust protector case ensures safe storage and transportation of the entire kit. The case has magnetic contact points that charge the Evoke 5C units and battery grips when connected to AC, DC, or PD power. Two USB ports allow charging of external devices.
For Multiple Scenarios
Use the Evoke 5C fixtures to light up your scenes and objects, enhance fine details, build atmosphere, add highlights, or create precise accent lighting. They are compact LEDs for subtle fill light, as well as macro and miniature objects/product photography. Each bare Evoke 5C delivers up to 496 lux at 3.3' and 5600K with expanded output options using additional included modifiers, such as Fresnel and Spot Beam lenses. Hide the fixtures behind in-frame objects to add dimension to a scene, serve as a practical light, or illuminate products.
Full Color Lighting
Just as more powerful lights of the Evoke series, each 5C model enables 0-100% dimming and advanced light mixing technologies, ensuring accuracy in CCT changes from 1000K all the way up to 20,000K. High CRI 98 and TLCI 98 ratings showcase the light's precise color rendering, which translates into pleasing tones for the viewer. Access the fixture's CCT, HSI, HSIW, RGBW, XY, Gel, and Effect modes for custom lighting options.
Gel Mode & Creative Effects
Nanlux offers a generous bounty of methods to control the Evoke 5C units, supporting both wired and wireless control for simple or complex sets. The lights hold 460 LEE and Rosco gels for quick selection, as well as 15 built-in effects for easy lighting simulations. This includes CCT loop, INT loop, HUE loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.
Intuitive & Advanced Control Options
Choose from onboard or wireless Nanlink app 2.0 via Bluetooth for intuitive management of settings. The screen brightness is adjustable and can be set to automatically turn off after a period of time if needed. Additionally, the 5C also supports DMX/RDM and LumenRadio CRMX (CRMX modules are included). NFC pairing is another addition to these lights.
Power & Accessories
- One of the main highlights of these fixtures is an internal battery with a runtime of 50 minutes at full output. You can charge the lights using an optional adapter or power bank with a 5V/2A rating or higher.
- The provided GUTEK T-230 case provides an all-in-one solution for charging, storage, and transportation. Electronic contacts support charging of the eight included fixtures and four battery grips. Each battery grip enables increased runtime of 4.7 hours at 100% brightness.
- Each light has a 25° beam angle, and a wide variety of modifiers are included for different lighting needs. Electronic contacts communicate with select modifiers for optimized performance.
All-Weather Protection & More
The fixtures' IP67 rating protects them from dust, water, or any rough weather or demanding environments. They have a waterproof design for up to 30 minutes at a depth of 3.3' and optional IP68 underwater housings are available to work at a depth of 98.4'. These lights are also magnetically attachable and feature 1/4"-20 mounts for wide mounting compatibility. If the lights run for long periods of time, Nanlux's included thermal shields keep them cool to the touch. Firmware updates are available for the lights and select accessories, such as battery grips and CRMX modules. The included hard case has custom foam for the accessories and a fully protected IP67 rating. For maximum safety, the case has a flame-retardant construction and offers resistance to pressure and shock.
| Light Fixture | |
| Item Type | 8x LED Spot Light |
| Included Light Modifier | 8x Diffuser |
| 4x Dome | |
| 4x Barndoors | |
| 4x Snoot | |
| 6x Lens | |
| 2x Projection Lens | |
| 8x Gobo | |
| Included Storage Case | Yes |
| Photometrics | 3200K: |
| 41 fc / 448 Lux at 3.3' / 1 m (Unmodified) | |
| 509 fc / 5480 Lux at 1' / 0.3 m (Unmodified) | |
| 170 fc / 1835 Lux at 1.6' / 0.5 m (Unmodified) | |
| 5600K: | |
| 46 fc / 496 Lux at 3.3' / 1 m (Unmodified) | |
| 554 fc / 5970 Lux at 1' / 0.3 m (Unmodified) | |
| 188 fc / 2026 Lux at 1.6' / 0.5 m (Unmodified) | |
| 3200K: | |
| 1 fc / 17 Lux at 3.3' / 1 m (with Diffuser)* | |
| 20 fc / 220 Lux at 1' / 0.3 m (with Diffuser) | |
| 6 fc / 67 Lux at 1.6' / 0.5 m (with Diffuser) | |
| 5600K: | |
| 1 fc / 19 Lux at 3.3' / 1 m (with Diffuser)* | |
| 22 fc / 242 Lux at 1' / 0.3 m (with Diffuser) | |
| 6 fc / 74 Lux at 1.6' / 0.5 m (with Diffuser) | |
| *Standardized Measurement Calculated Internally Based on Closest Distance | |
| Color Temperature | 1000 to 20,000K +/- 200K |
| Color Modes | RGB, Daylight, Tungsten |
| Color Accuracy Standard | CRI 98 |
| TLCI 98 | |
| SSI 78 at 5600K | |
| SSI 86 at 3200K | |
| TM-30 Rf 96 | |
| TM-30 Rg 100 | |
| Dimming | App-Controlled / Built-In Dimmer / DMX / RDM |
| • 0 to 100% | |
| Beam Angle | 25° |
| Built-In Flash | No |
| Preprogrammed Effects | Yes |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Lens | |
| Lens Type | Fresnel |
| Connectivity | |
| Wireless Remote Control Type | Bluetooth |
| CRMX *Adapter Required (Included) | |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Nanlink | |
| Functionality: Remote Control | |
| Power & I/O | |
| Power Source | Battery (Built-In) |
| Inputs/Outputs | Light Fixture |
| 1x USB-C Female Power/DMX Input | |
| *Adapter Required (Not Included) (5 VDC at 2 A) | |
| Power Supply/Controller | |
| 1x powerCON TRUE1 Male AC Power Input (100 to 240 VAC, 50 / 60 Hz) | |
| 1x D-Tap Female Battery Input (14.4 to 28 VDC) | |
| 1x USB-C Female Power Input (15 to 48 VDC) | |
| 2x USB-A Female Power Output | |
| Battery | 1x Rechargeable, 3.7 VDC, 1300 mAh (Built-In) |
| • Up to 50-Minute Runtime at Maximum Brightness | |
| • Up to 156-Minute Runtime at Minimum Brightness | |
| Battery Charging | 1x Charging Case (Included) |
| Input Power | 5 VDC at 2 A |
| Included Adapter / Cable | 1x USA Type-A/B Plug to powerCON TRUE1 Female Cable (14.8' / 4.5 m) |
| 1x D-Tap Male to D-Tap Male Cable | |
| Power Pass-Thru | No |
| Power Consumption | 6 W |
| Mounting | |
| Included Light Stand / Mount | 4x Handgrip |
| Fixture Mounting | 1x 1/4"-20 Female Thread |
| Magnetic | |
| Included Adapter | 4x Swivel Mount: 1/4"-20 Female Thread to Proprietary |
| 4x Non-Swivel Mount: 5/8" Stud to 1/4"-20 Male Screw | |
| General | |
| Display | Yes |
| Environmental Resistance | Dust/Weather/Water-Resistant (IP67) |
| Operating Conditions | -4 to 104°F / -20 to 40°C |
| Certifications | BIS, CE, FCC-ID, PSE Circle, RoHS, UKCA, UKCA |
| Dimensions | 2.2 x 1.7 x 1.7" / 5.6 x 4.3 x 4.3 cm (Fixture) |
| Weight | 5.6 oz / 160 g (Fixture) |
